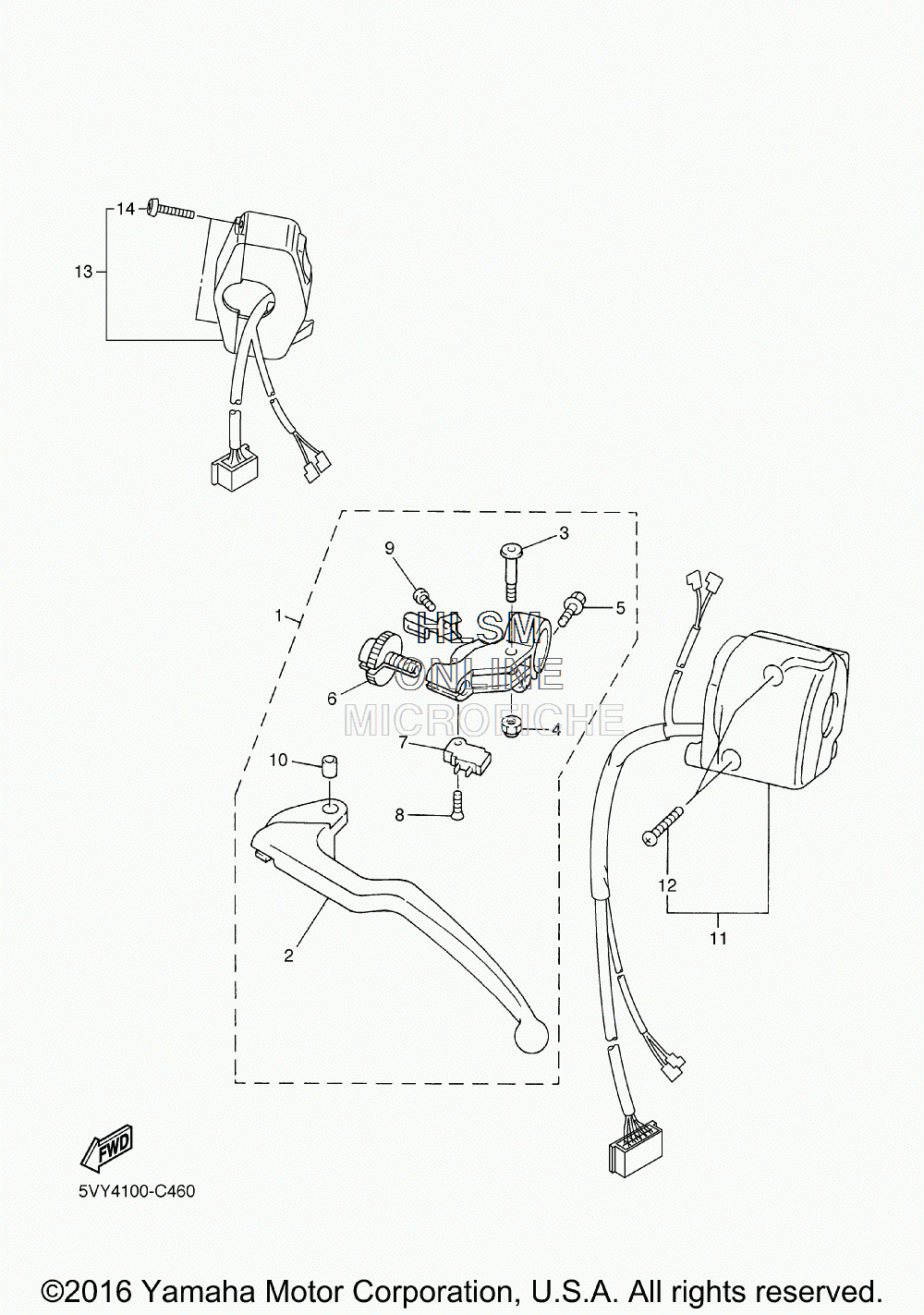

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha YZF-R1 - 2006 года выпуска`
-
№АртикулНазвание
-
14XV-82910-14-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
24XV-83912-11-00 ...LEVER 1...LEVER 1
-
34XV-83945-01-00 ...BOLT, LEVER...BOLT, LEVER
-
495607-06200-00 ...NUT, SELF U-FLANGE...NUT, SELF U-FLANGE
-
595027-06020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
65LV-83951-00-00 ...BOLT, CABLE ADJUSTING...BOLT, CABLE ADJUSTING
-
74XV-82917-01-00 ...SWITCH...SWITCH
-
898707-03016-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
998507-04010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
105JJ-83913-00-00 ...COLLAR, LEVER 1...COLLAR, LEVER 1
-
115VY-83973-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
1298507-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
135PW-83975-00-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
1498507-05022-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
