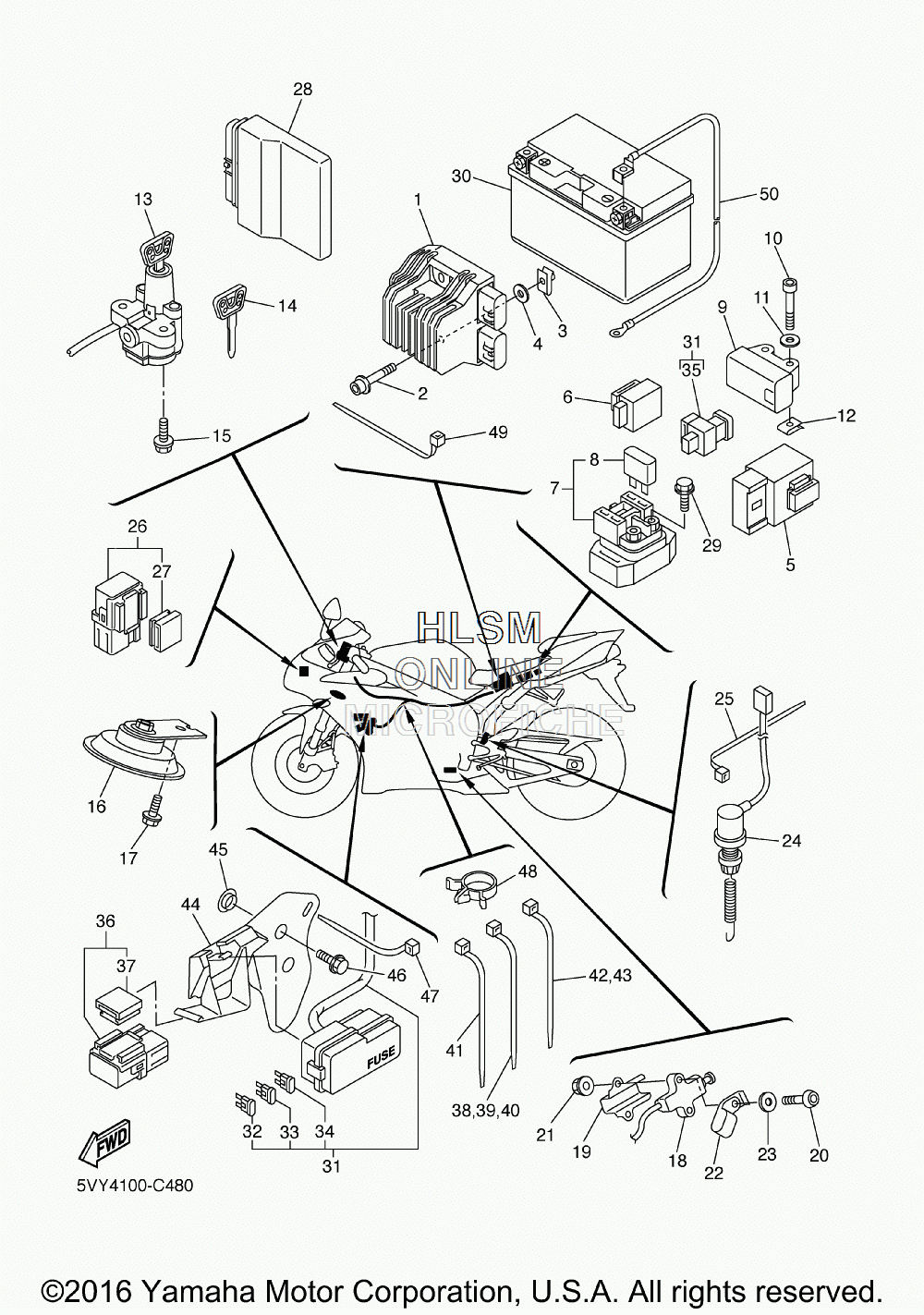

ELECTRICAL 2 для Yamaha YZF-R1 - 2006 года выпуска`
-
№АртикулНазвание
-
15VY-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
290110-06066-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
390183-06053-00 NUT, SPRINGNUT, SPRING
-
490202-05187-00 WASHER, PLATEWASHER, PLATE
-
55VK-81950-40-00 RELAY ASSY (5VK-40)RELAY ASSY (5VK-40)
-
64MY-83350-01-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
75JW-81940-02-00 STARTER RELAY ASSY (RC19-032)STARTER RELAY ASSY (RC19-032)
-
836Y-82151-00-00 ...FUSE (15A-BLUE)...FUSE (15A-BLUE)
-
95PS-82576-01-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
1091317-04025-00 BOLTBOLT
-
1190201-047A2-00 WASHER, PLATEWASHER, PLATE
-
1290183-04039-00 NUT, SPRINGNUT, SPRING
-
135VY-82501-10-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
144BH-82511-09-00 BLANK KEY (OPT)BLANK KEY (OPT)
-
1590109-080G5-00 BOLTBOLT
-
164TH-83371-00-00 HORNHORN
-
1795807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
185PX-82566-51-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
195JJ-82388-00-00 PLATEPLATE
-
2092017-05030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2195607-05200-00 NUT, U FLANGENUT, U FLANGE
-
2290461-10002-00 CLAMPCLAMP
-
2390201-057H5-00 WASHER, PLATEWASHER, PLATE
-
245PW-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
255Y9-12491-00-00 CLAMP 1CLAMP 1
-
265JJ-81950-20-00 RELAY ASSY (5JJ-20)RELAY ASSY (5JJ-20)
-
275JJ-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
285VY-8591A-B0-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
2995027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
305VY-82100-00-00 BATTERY ASSY (YUASA YTZ10S)BATTERY ASSY (YUASA YTZ10S)
-
315VY-82590-40-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
325JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
335JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
345JJ-82151-70-00 ...FUSE (25A-BL)...FUSE (25A-BL)
-
355JW-82151-10-00 ...FUSE (50A)...FUSE (50A)
-
365EA-81950-20-00 RELAY ASSY (5EA-02)RELAY ASSY (5EA-02)
-
375EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
3890464-15195-00 CLAMPCLAMP
-
3990464-15195-00 CLAMPCLAMP
-
4090464-15195-00 CLAMPCLAMP
-
4190464-13073-00 CLAMPCLAMP
-
421UA-82591-00-00 BANDBAND
-
431UA-82591-00-00 BANDBAND
-
445VY-82171-00-00 STAY, FUSE BOXSTAY, FUSE BOX
-
4590387-06040-00 COLLARCOLLAR
-
4690119-06228-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4790464-13077-00 CLAMPCLAMP
-
4890464-15157-00 CLAMPCLAMP
-
4990464-13073-00 CLAMPCLAMP
-
505VY-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
