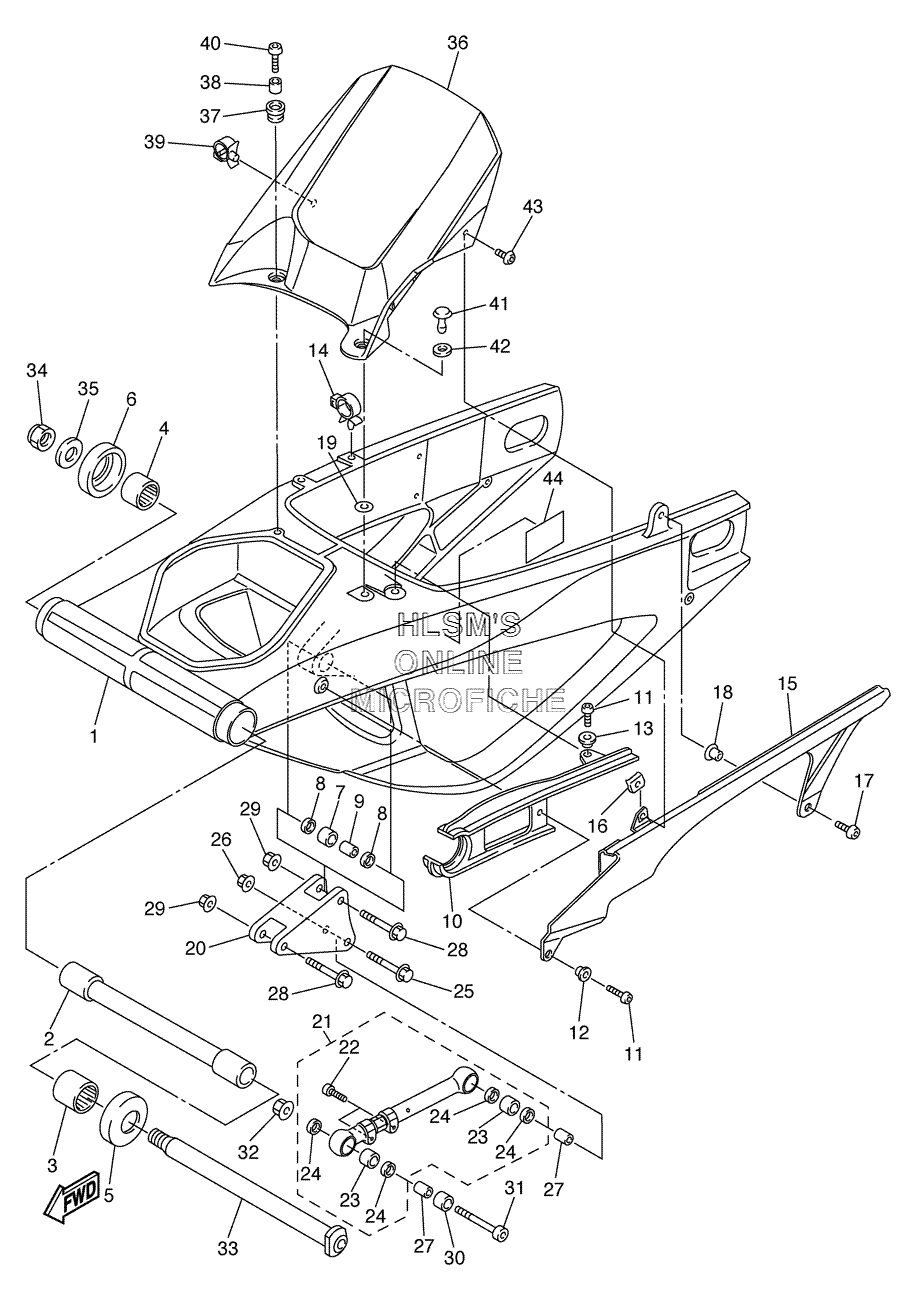

SUSPENSION - REAR ARM для Yamaha YZF-R1 LIMITED EDITION - 2006 года выпуска`
-
№АртикулНазвание
-
15VY-22110-10-P0 REAR ARM COMP. (MBL2)REAR ARM COMP. (MBL2)
-
25VY-22184-00-00 BUSHBUSH
-
393317-52865-00 BEARING, CYL.#17BEARING, CYL.#17
-
493317-428U8-00 BEARINGBEARING
-
55VY-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
65VY-22128-10-00 COVER, THRUST 1COVER, THRUST 1
-
793315-31758-00 BEARINGBEARING
-
893109-17071-00 OIL SEALOIL SEAL
-
990387-1012A-00 COLLARCOLLAR
-
105VY-22151-10-00 SEAL, GUARDSEAL, GUARD
-
1192017-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1290387-062X0-00 COLLARCOLLAR
-
1390387-06066-00 COLLARCOLLAR
-
1490464-16011-00 CLAMPCLAMP
-
155VY-22311-01-00 CASE, CHAINCASE, CHAIN
-
1690183-05076-00 NUT, SPRINGNUT, SPRING
-
1790149-06298-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
1890387-07717-00 COLLARCOLLAR
-
195VY-22873-00-00 SEAL 1SEAL 1
-
204B1-2217A-00-00 ARM, RELAYARM, RELAY
-
214B1-2210K-00-00 CONNECTING ROD SUB ASSYCONNECTING ROD SUB ASSY
-
2291317-06020-00 ...BOLT...BOLT
-
2393315-31758-00 ...BEARING...BEARING
-
2493109-17071-00 ...OIL SEAL...OIL SEAL
-
2590105-10018-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2695607-10200-00 NUT, U FLANGENUT, U FLANGE
-
2790387-1012A-00 COLLARCOLLAR
-
2890105-10018-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2995607-10200-00 NUT, U FLANGENUT, U FLANGE
-
3090387-1013U-00 COLLARCOLLAR
-
3190110-10011-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3295607-10200-00 NUT, U FLANGENUT, U FLANGE
-
335VY-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
3490185-18167-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3590201-18013-00 WASHER, PLATEWASHER, PLATE
-
365VY-21650-00-00 REAR FENDER COMP.REAR FENDER COMP.
-
3790480-12005-00 GROMMETGROMMET
-
3890387-06057-00 COLLARCOLLAR
-
3990464-16012-00 CLAMPCLAMP
-
4090149-06302-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
4190269-08002-00 RIVETRIVET
-
425PW-28372-00-00 DAMPERDAMPER
-
4390111-05003-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
445VY-21668-00-00 LABEL, TIRELABEL, TIRE
