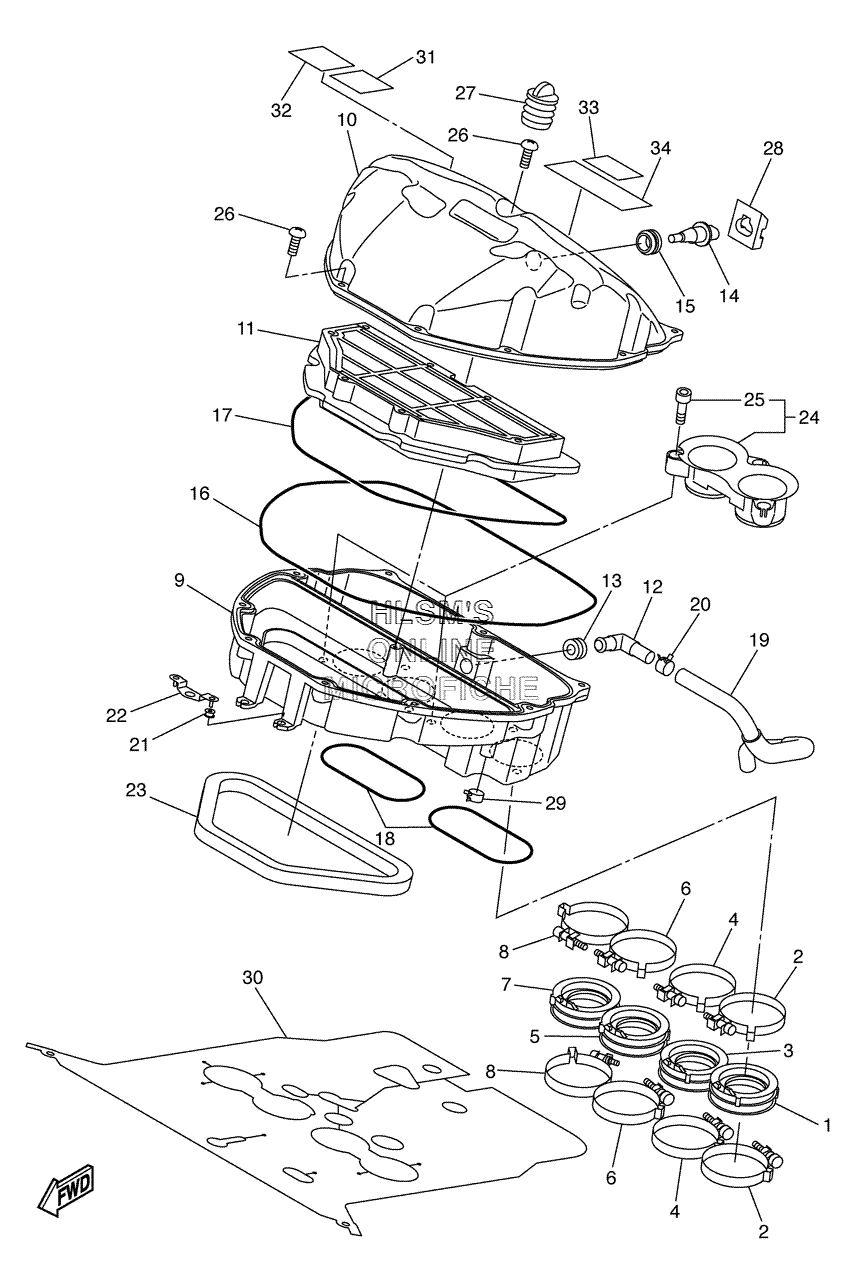

AIR CLEANER W/ INTAKE для Yamaha YZF-R1 LIMITED EDITION - 2006 года выпуска`
-
№АртикулНазвание
-
15VY-13595-00-00 JOINTJOINT
-
290450-62002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
35VY-13596-00-00 JOINT, CARBURETOR 2JOINT, CARBURETOR 2
-
490450-62002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
55VY-13597-00-00 JOINT, CARBURETOR 3JOINT, CARBURETOR 3
-
690450-62002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
75VY-13598-00-00 JOINT, CARBURETOR 4JOINT, CARBURETOR 4
-
890450-62002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
95VY-14411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
105VY-14421-00-00 CASE, AIR CLEANER 2CASE, AIR CLEANER 2
-
115VY-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
125VY-14419-00-00 PIPEPIPE
-
1331A-14435-00-00 GROMMETGROMMET
-
145CA-85886-00-00 SENSOR, AIR TEMPRATURESENSOR, AIR TEMPRATURE
-
155VY-14435-00-00 GROMMETGROMMET
-
165VY-14452-00-00 SEALSEAL
-
175VY-14462-00-00 SEALSEAL
-
185VY-14457-00-00 SEALSEAL
-
195VY-15393-00-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
2090467-160A1-00 CLIPCLIP
-
2190480-08264-00 GROMMETGROMMET
-
225VY-14498-00-00 STAY 1STAY 1
-
235VY-14467-00-00 SEALSEAL
-
245VY-1440B-00-00 JOINT ASSYJOINT ASSY
-
2590109-05005-00 ...BOLT...BOLT
-
2690154-05021-00 SCREW, BINDINGSCREW, BINDING
-
275VY-14862-00-00 PLUGPLUG
-
285VY-14425-00-00 DAMPER 1DAMPER 1
-
2990467-14015-00 CLIPCLIP
-
305VY-12682-00-00 PROTECTOR, HEATPROTECTOR, HEAT
-
315SL-21684-00-00 PLATE, ROUTINGPLATE, ROUTING
-
325SL-21686-00-00 PLATE, ROUTING 2PLATE, ROUTING 2
-
335VY-2178A-00-00 LABELLABEL
-
345VY-2179W-00-00 PLATE, EPA (NON CALIF.)PLATE, EPA (NON CALIF.)
-
345VY-2179R-20-00 PLATE, EPA 2 (CALIF. ONLY)PLATE, EPA 2 (CALIF. ONLY)
