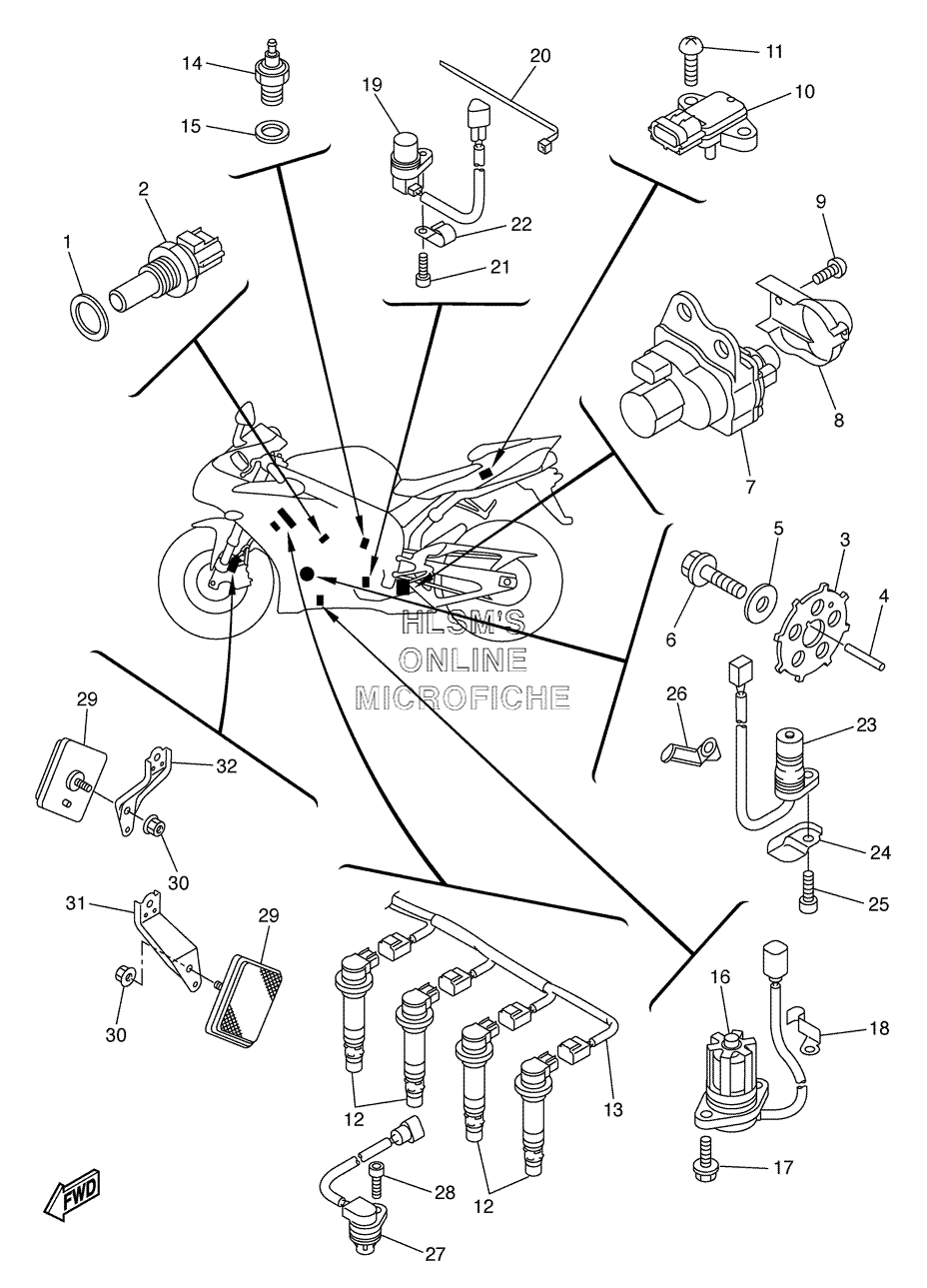

ELECTRICAL для Yamaha YZF-R1 LIMITED EDITION - 2006 года выпуска`
-
№АртикулНазвание
-
190201-12790-00 WASHER, PLATEWASHER, PLATE
-
28CC-85790-01-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
35VY-81673-00-00 ROTORROTOR
-
490282-03001-00 KEY, STRAIGHTKEY, STRAIGHT
-
590201-10039-00 WASHER, PLATEWASHER, PLATE
-
690105-10290-00 BOLT, FLANGEBOLT, FLANGE
-
75VY-85820-10-00 SERVO MOTOR ASSYSERVO MOTOR ASSY
-
85VY-85829-00-00 COVER, SERVO MOTORCOVER, SERVO MOTOR
-
997702-50514-00 SCREW, TAPPINGSCREW, TAPPING
-
105VX-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
1197707-50020-00 SCREW, TAPPINGSCREW, TAPPING
-
125VY-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
135VY-82309-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
143GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
1590430-10148-00 GASKETGASKET
-
165VY-85720-00-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
1795022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1890465-08053-00 CLAMPCLAMP
-
194XV-83755-02-00 SENSOR, SPEEDSENSOR, SPEED
-
2090464-51001-00 CLAMPCLAMP
-
2190110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2290462-08039-00 CLAMPCLAMP
-
235VY-81670-01-00 PICK-UP ASSYPICK-UP ASSY
-
245VY-15589-00-00 PLATE, CLUTCH COVERPLATE, CLUTCH COVER
-
2590110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2690465-08054-00 CLAMPCLAMP
-
275VY-85896-00-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
2890110-06175-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2920G-85110-00-00 REFLECTOR ASSYREFLECTOR ASSY
-
3095707-05500-00 NUT, FLANGENUT, FLANGE
-
315VY-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
325VY-85122-00-00 BRACKET, REFLECTOR 2BRACKET, REFLECTOR 2
