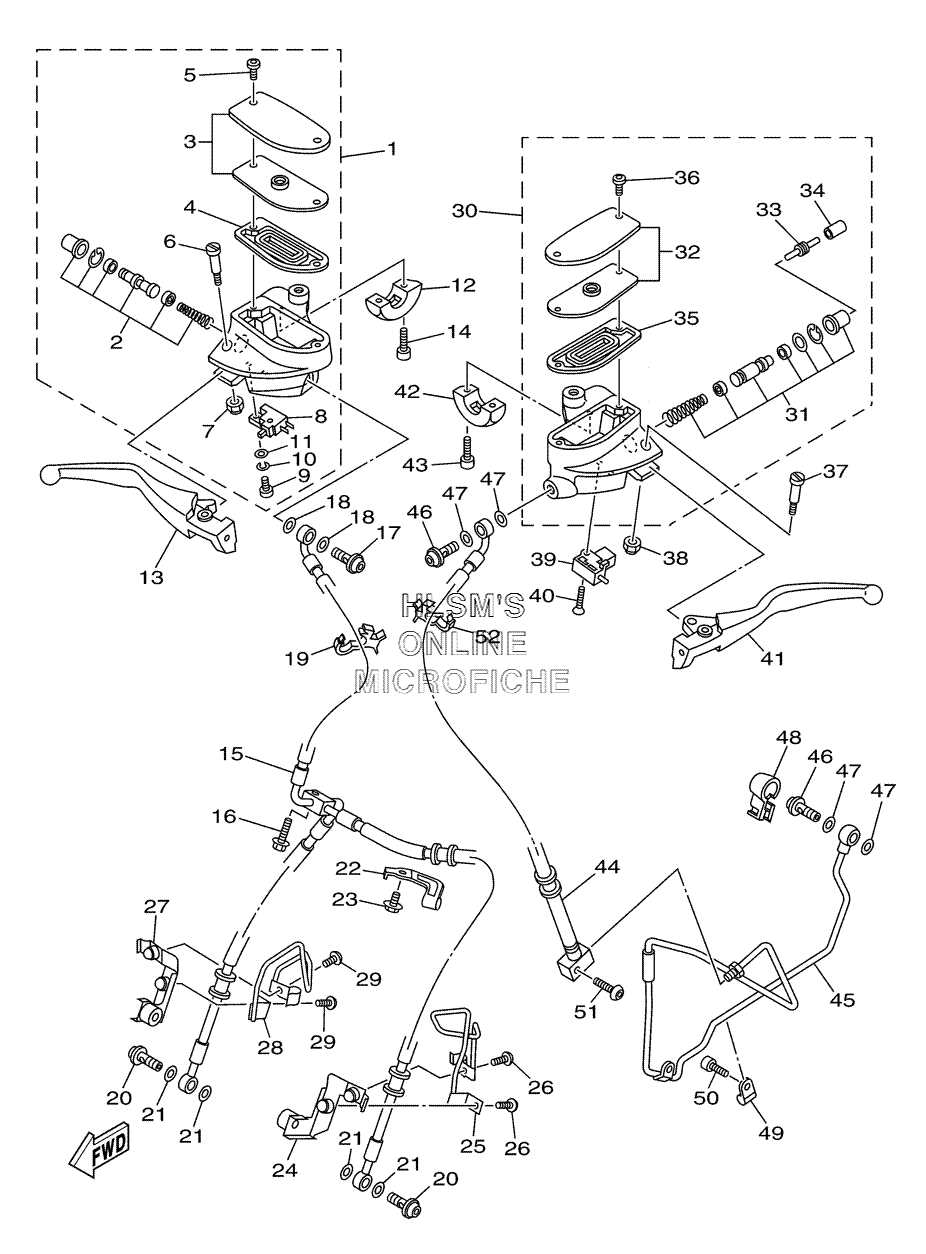

BRAKE - FRONT MASTER CYLINDER для Yamaha STRATOLINER MIDNIGHT - 2006 года выпуска`
-
№АртикулНазвание
-
11D7-W2587-20-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
25PX-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
31D7-W2585-20-00 ...RESERVOIR CAP SET...RESERVOIR CAP SET
-
41D7-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
51D7-2589H-00-00 ...SCREW...SCREW
-
61D7-2589F-00-00 ...BOLT, LEVER...BOLT, LEVER
-
795604-06100-00 ...NUT...NUT
-
84HM-83980-00-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
-
998502-04012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1092907-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
1192907-04600-00 ...WASHER...WASHER
-
121D7-26467-20-00 HOLDERHOLDER
-
131D7-83922-10-00 LEVER 2LEVER 2
-
1491314-06025-00 BOLTBOLT
-
151D7-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1690105-06096-00 BOLT, FLANGEBOLT, FLANGE
-
1790401-10172-00 BOLT, UNIONBOLT, UNION
-
1890201-10118-00 WASHER, PLATEWASHER, PLATE
-
1990464-15192-00 CLAMPCLAMP
-
2090401-10172-00 BOLT, UNIONBOLT, UNION
-
2190201-10118-00 WASHER, PLATEWASHER, PLATE
-
221D7-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
2390105-06020-00 BOLT, FLANGEBOLT, FLANGE
-
241D7-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
251D7-25192-00-00 STAYSTAY
-
2690111-06016-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
271D7-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
281D7-2519F-00-00 STAY 2STAY 2
-
2990111-06016-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
301D7-W2645-20-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
311D7-W0099-00-00 ...CYLINDER KIT, MASTER (CLUTCH)...CYLINDER KIT, MASTER (CLUTCH)
-
321D7-W2585-70-00 ...RESERVOIR CAP SET...RESERVOIR CAP SET
-
331D7-26464-00-00 ...ROD, PUSH...ROD, PUSH
-
343GM-26455-00-00 ...BUSH...BUSH
-
351D7-25854-50-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
361D7-2589H-00-00 ...SCREW...SCREW
-
371D7-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
3895604-06100-00 NUTNUT
-
393YX-82917-01-00 SWITCHSWITCH
-
4090151-03002-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
411D7-83912-10-00 LEVER 1LEVER 1
-
421D7-26467-70-00 HOLDERHOLDER
-
4391314-06025-00 BOLTBOLT
-
441D7-26472-00-00 HOSE, CLUTCH 1HOSE, CLUTCH 1
-
451D7-26473-00-00 HOSE, CLUTCH 2HOSE, CLUTCH 2
-
4690401-10172-00 BOLT, UNIONBOLT, UNION
-
4790201-10118-00 WASHER, PLATEWASHER, PLATE
-
481D7-26477-00-00 COVERCOVER
-
491D7-26475-00-00 HOLDERHOLDER
-
5091314-06014-00 BOLTBOLT
-
5190111-06010-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5290464-15192-00 CLAMPCLAMP
