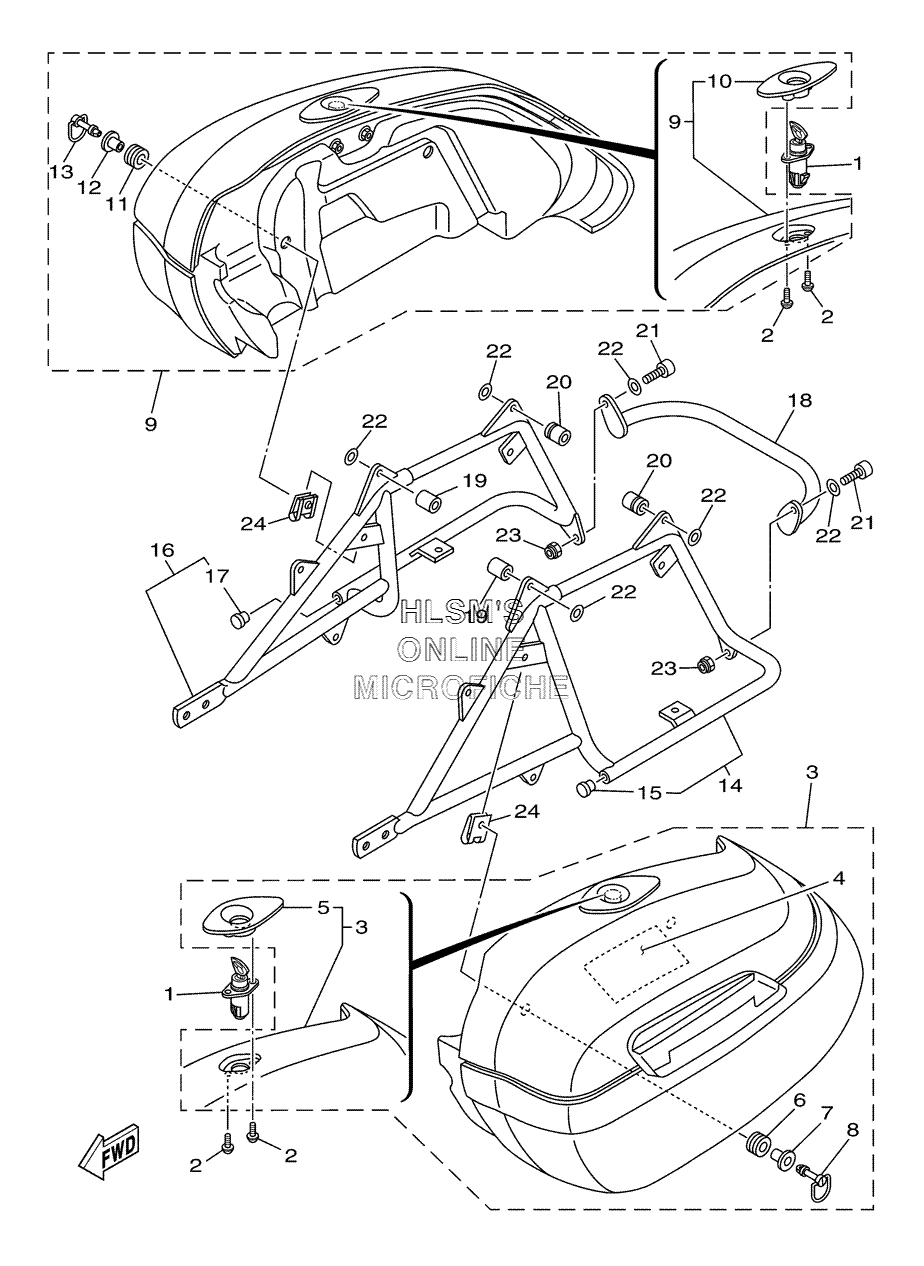

SADDLEBAG 1 для Yamaha STRATOLINER MIDNIGHT - 2006 года выпуска`
-
№АртикулНазвание
-
12C5-28408-00-00 LOCK ASSY. 1LOCK ASSY. 1
-
292014-05010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
32C5-F8441-00-00 SADDLE BAG 1SADDLE BAG 1
-
44YE-28446-01-00 ...LABEL, CAUTION...LABEL, CAUTION
-
52C5-F8493-00-00 ...COVER LOCK ASSY 2...COVER LOCK ASSY 2
-
62C5-F8416-00-00 ...DAMPER 2...DAMPER 2
-
72C5-F843L-00-00 ...PLATE...PLATE
-
82C5-F8494-00-00 ...HOOK 3...HOOK 3
-
92C5-F8442-00-00 SADDLE BAG 2SADDLE BAG 2
-
102C5-F849K-00-00 ...COVER LOCK ASSY 2...COVER LOCK ASSY 2
-
112C5-F8416-00-00 ...DAMPER 2...DAMPER 2
-
122C5-F843L-00-00 ...PLATE...PLATE
-
132C5-F8494-00-00 ...HOOK 3...HOOK 3
-
142C5-F8473-00-00 FRAME, SADDLEBAG 1FRAME, SADDLEBAG 1
-
152C5-F842M-00-00 ...COVER 1...COVER 1
-
162C5-F8474-00-00 FRAME, SADDLEBAG 2FRAME, SADDLEBAG 2
-
172C5-F842M-00-00 ...COVER 1...COVER 1
-
182C5-F8423-00-00 STAY, SIDE BAGSTAY, SIDE BAG
-
192C5-F841B-00-00 PIPE, 1PIPE, 1
-
202C5-F841C-00-00 PIPE, 5PIPE, 5
-
2191314-08020-00 BOLTBOLT
-
2292990-08200-00 WASHER, PLAINWASHER, PLAIN
-
2395614-08100-00 NUT, UNUT, U
-
242C5-F8457-00-00 CLIPCLIP
