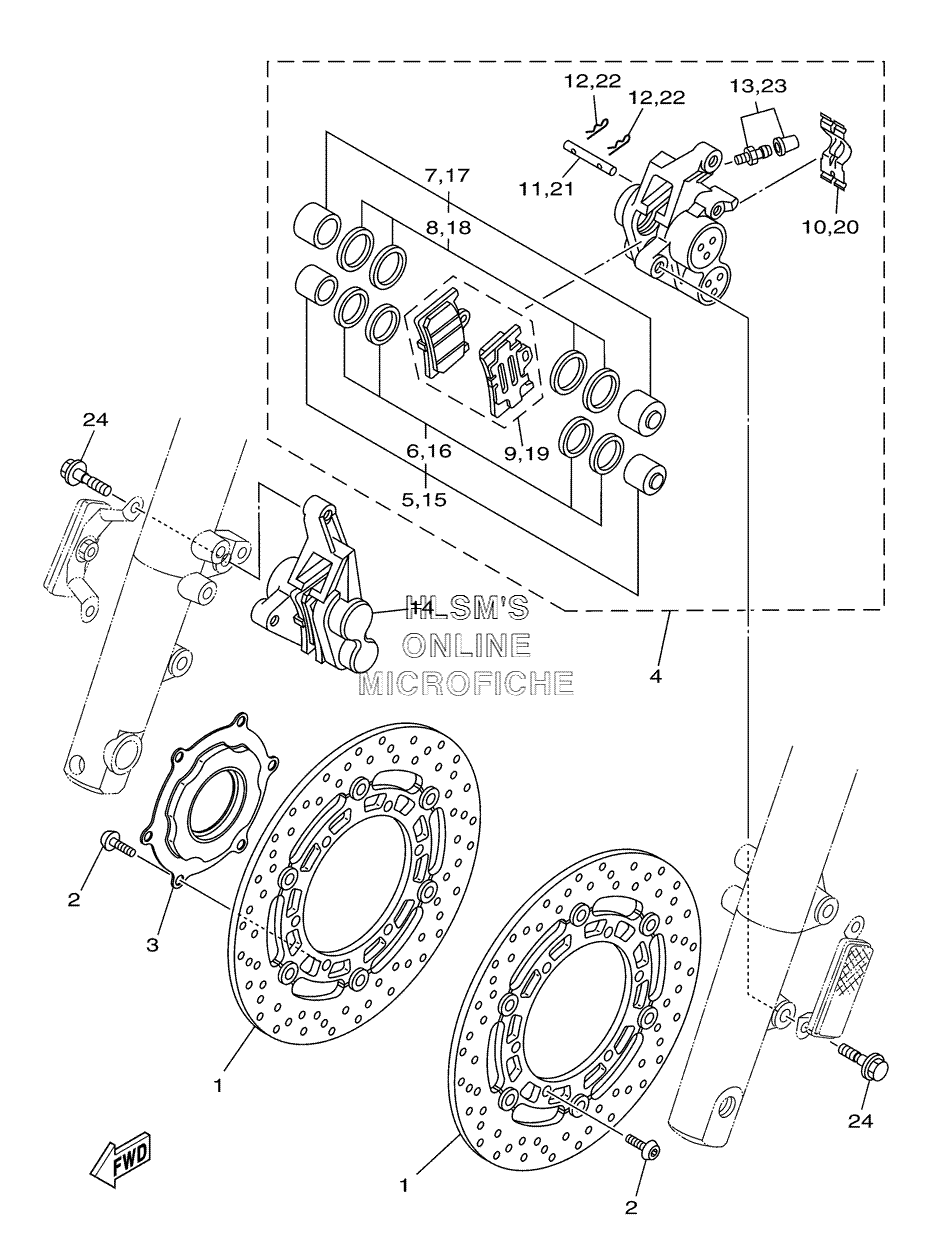

BRAKE - FRONT CALIPER для Yamaha STRATOLINER MIDNIGHT - 2006 года выпуска`
-
№АртикулНазвание
-
11D7-2581T-00-00 DISC BRAKE ASSYDISC BRAKE ASSY
-
290109-08006-00 BOLTBOLT
-
31D7-2515A-00-00 RING, WHEEL 2 (RIGHT)RING, WHEEL 2 (RIGHT)
-
41D7-2580T-10-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
54SV-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
63MA-W0047-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
74SV-W0057-10-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
83GM-W0047-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
91D7-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
104SV-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
114SV-25924-00-00 ...PIN, PAD...PIN, PAD
-
123GM-25925-00-00 ...CLIP...CLIP
-
1351H-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
141D7-2580U-10-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
154SV-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
163MA-W0047-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
174SV-W0057-10-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
183GM-W0047-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
191D7-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
204SV-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
214SV-25924-00-00 ...PIN, PAD...PIN, PAD
-
223GM-25925-00-00 ...CLIP...CLIP
-
2351H-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
2490105-10638-00 BOLT, FLANGEBOLT, FLANGE
