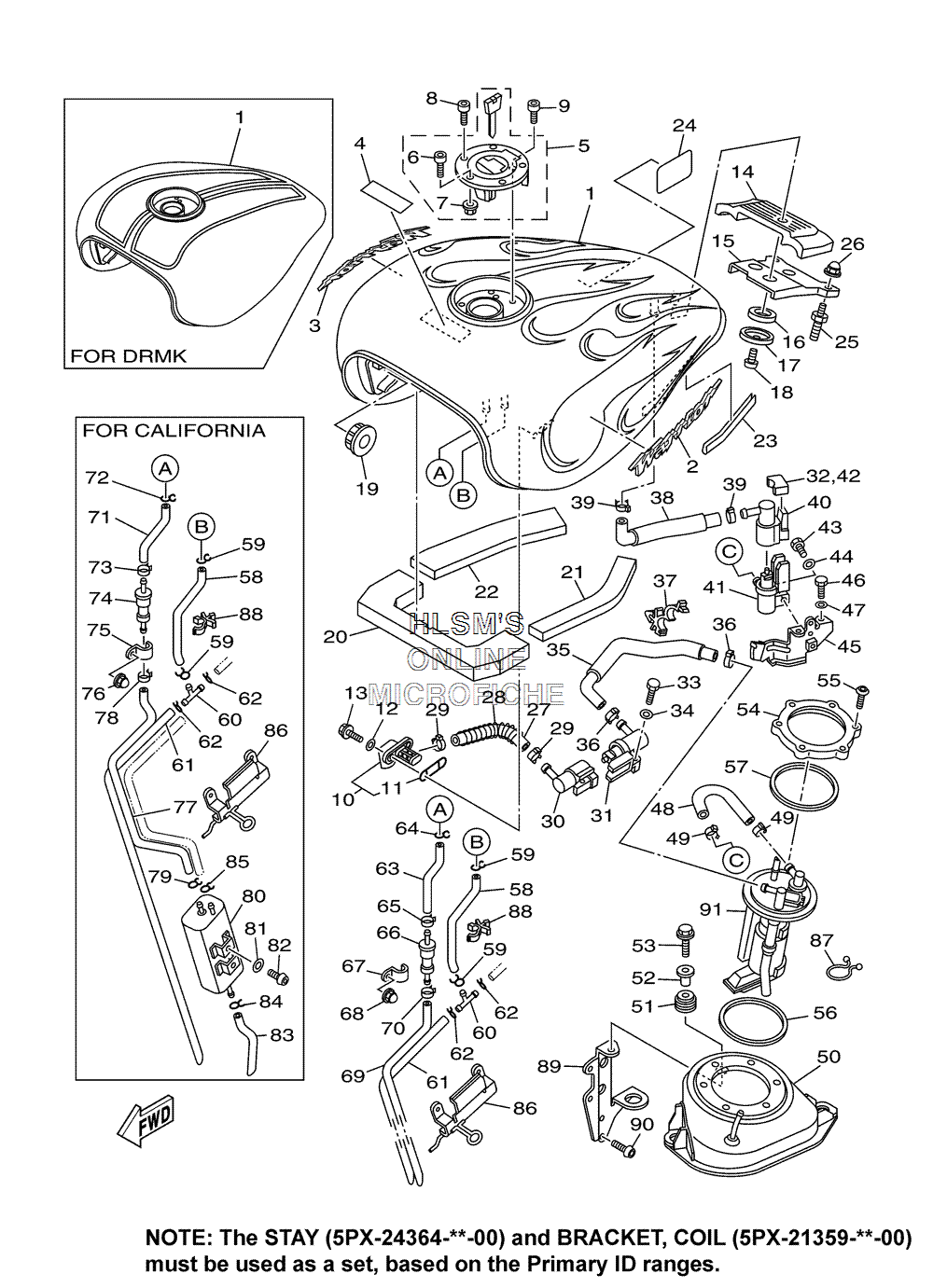

FUEL TANK для Yamaha ROAD STAR MIDNIGHT WARRIOR - 2006 года выпуска`
-
№АртикулНазвание
-
15PX-YK241-10-33 FUEL TANK COMP. (YAMAHA BLACK)FUEL TANK COMP. (YAMAHA BLACK)
-
25PX-2416B-00-00 EMBLEMEMBLEM
-
35PX-2417B-00-00 EMBLEMEMBLEM
-
45GK-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
55PX-24602-01-00 CAP ASSYCAP ASSY
-
691380-05012-00 ...BOLT...BOLT
-
795707-05500-00 ...NUT, FLANGE...NUT, FLANGE
-
890110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
991317-05010-00 BOLTBOLT
-
105PX-24560-00-00 FILTER ASSYFILTER ASSY
-
114X8-24512-00-00 ...O-RING...O-RING
-
1290202-05193-00 WASHER, PLATEWASHER, PLATE
-
1395027-06016-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
145PX-24182-01-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
155PX-2413Y-01-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
165PX-24183-01-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
175PX-24186-01-00 WASHER, SPECIALWASHER, SPECIAL
-
1892017-08012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
192YK-24181-10-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
205PX-2414K-00-00 DAMPER, PLATE 3DAMPER, PLATE 3
-
215PX-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
225PX-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
234GY-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
241JK-21735-00-00 SEAL 2SEAL 2
-
255PX-24176-01-00 BOLT 1BOLT 1
-
2690176-06055-00 NUT, CROWNNUT, CROWN
-
275PX-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
285PX-24393-00-00 SPRINGSPRING
-
295PX-2411M-00-00 CLIPCLIP
-
305PX-24305-00-00 FUEL PIPE JOINT COMP. 2FUEL PIPE JOINT COMP. 2
-
315PX-24304-01-00 FUEL PIPE JOINT COMP. 1FUEL PIPE JOINT COMP. 1
-
325PX-24184-01-00 DAMPER, LOCATING 4DAMPER, LOCATING 4
-
3397027-05020-00 BOLTBOLT
-
3492907-05600-00 WASHER, PLATEWASHER, PLATE
-
355PX-24312-00-00 PIPE 2PIPE 2
-
365PX-2411M-00-00 CLIPCLIP
-
3790464-16006-00 CLAMPCLAMP
-
385PX-24313-00-00 PIPE 3PIPE 3
-
395PX-2411M-00-00 CLIPCLIP
-
405PX-24305-00-00 FUEL PIPE JOINT COMP. 2FUEL PIPE JOINT COMP. 2
-
415PX-24304-11-00 FUEL PIPE JOINT COMP. 1FUEL PIPE JOINT COMP. 1
-
425PX-24184-01-00 DAMPER, LOCATING 4DAMPER, LOCATING 4
-
4397027-05020-00 BOLTBOLT
-
4492907-05600-00 WASHER, PLATEWASHER, PLATE
-
455PX-2419F-00-00 BRACKET, CANISTORBRACKET, CANISTOR
-
4697027-05012-00 BOLTBOLT
-
4792907-05600-00 WASHER, PLATEWASHER, PLATE
-
485PX-24314-00-00 PIPE 4PIPE 4
-
495PX-2411M-00-00 CLIPCLIP
-
505PX-24280-00-00 TANK, FUELTANK, FUEL
-
5190480-18003-00 GROMMETGROMMET
-
5290387-0700G-00 COLLARCOLLAR
-
5395817-06030-00 BOLT, FLANGEBOLT, FLANGE
-
545PX-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
5590149-05244-00 SCREWSCREW
-
565PX-24486-00-00 O-RINGO-RING
-
575PX-24145-00-00 PLATE, DAMPERPLATE, DAMPER
-
585PX-24318-01-00 PIPE, OVERFLOWPIPE, OVERFLOW
-
5990467-09103-00 CLIP, SCISSORCLIP, SCISSOR
-
6090413-07007-00 WAY 3WAY 3
-
615PX-24321-01-00 PIPE 10PIPE 10
-
6290467-09103-00 CLIP, SCISSORCLIP, SCISSOR
-
635PX-24322-10-00 PIPE 11PIPE 11
-
6490467-09103-00 CLIP, SCISSORCLIP, SCISSOR
-
6590467-09001-00 CLIPCLIP
-
665PX-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
675PX-24136-00-00 CLAMP 2CLAMP 2
-
6890176-05054-00 NUT, CROWNNUT, CROWN
-
695PX-24323-01-00 PIPE 12PIPE 12
-
7090467-09001-00 CLIPCLIP
-
715PX-24322-10-00 PIPE 11PIPE 11
-
7290467-09103-00 CLIP, SCISSORCLIP, SCISSOR
-
7390467-09001-00 CLIPCLIP
-
745PX-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
755PX-24136-00-00 CLAMP 2CLAMP 2
-
7690176-05054-00 NUT, CROWNNUT, CROWN
-
775PX-24323-11-00 PIPE 12PIPE 12
-
7890467-09001-00 CLIPCLIP
-
7990467-09103-00 CLIP, SCISSORCLIP, SCISSOR
-
805PX-24170-00-00 CANISTER ASSYCANISTER ASSY
-
8190201-06023-00 WASHER, PLATEWASHER, PLATE
-
8290111-06046-00 BOLT, HEXAGON SOCKET BUTTONBOLT, HEXAGON SOCKET BUTTON
-
835PX-24325-00-00 PIPE 14PIPE 14
-
8490467-10041-00 CLIP, SCISSORCLIP, SCISSOR
-
8590467-09103-00 CLIP, SCISSORCLIP, SCISSOR
-
865PX-24364-00-00 STAY (THROUGH VP19E-000666 AND VP)STAY (THROUGH VP19E-000666 AND VP)
-
865PX-24364-01-00 STAY (FROM VP19E-000666~ AND VP19)STAY (FROM VP19E-000666~ AND VP19)
-
8790464-23041-00 CLAMPCLAMP
-
8890464-10125-00 CLAMPCLAMP
-
895PX-2172E-00-00 STAY, SIDE COVER 1STAY, SIDE COVER 1
-
9092017-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
915PX-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
