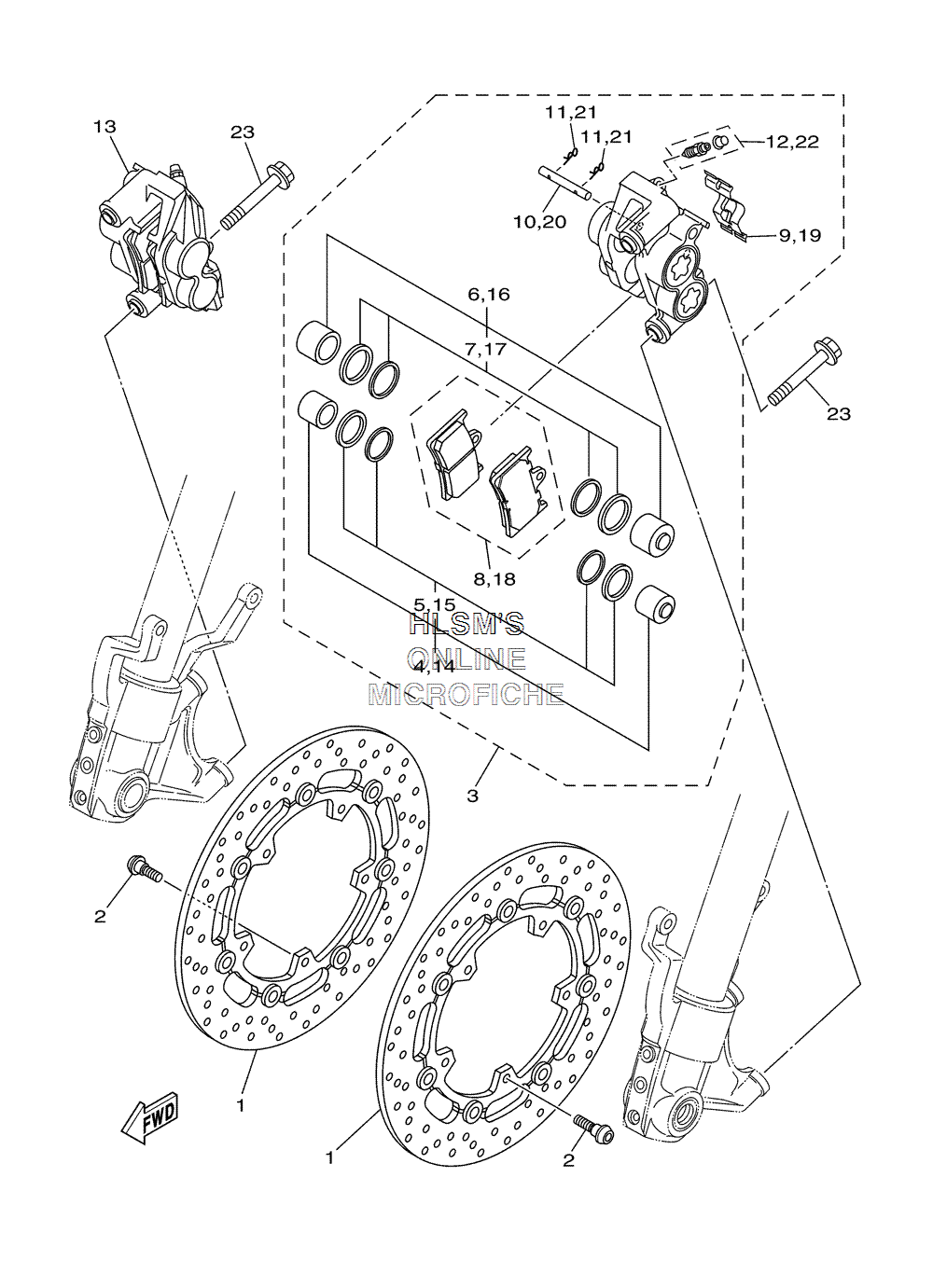

BRAKE - FRONT CALIPER для Yamaha ROAD STAR MIDNIGHT WARRIOR - 2006 года выпуска`
-
№АртикулНазвание
-
15SL-2581T-00-00 DISC BRAKE ASSYDISC BRAKE ASSY
-
290109-064G6-00 BOLTBOLT
-
35PX-2580T-10-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
45PW-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
55PW-W0047-00-00 ...CALIPER SEAL KIT...CALIPER SEAL KIT
-
65PW-W0057-10-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
75PW-W0047-10-00 ...CALIPER SEAL KIT...CALIPER SEAL KIT
-
85PX-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
94SV-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
104SV-25924-00-00 ...PIN, PAD...PIN, PAD
-
113GM-25925-00-00 ...CLIP...CLIP
-
1251H-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
135PX-2580U-10-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
145PW-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
155PW-W0047-00-00 ...CALIPER SEAL KIT...CALIPER SEAL KIT
-
165PW-W0057-10-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
175PW-W0047-10-00 ...CALIPER SEAL KIT...CALIPER SEAL KIT
-
185PX-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
194SV-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
204SV-25924-00-00 ...PIN, PAD...PIN, PAD
-
213GM-25925-00-00 ...CLIP...CLIP
-
2251H-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
2390401-10012-00 BOLT, UNIONBOLT, UNION
