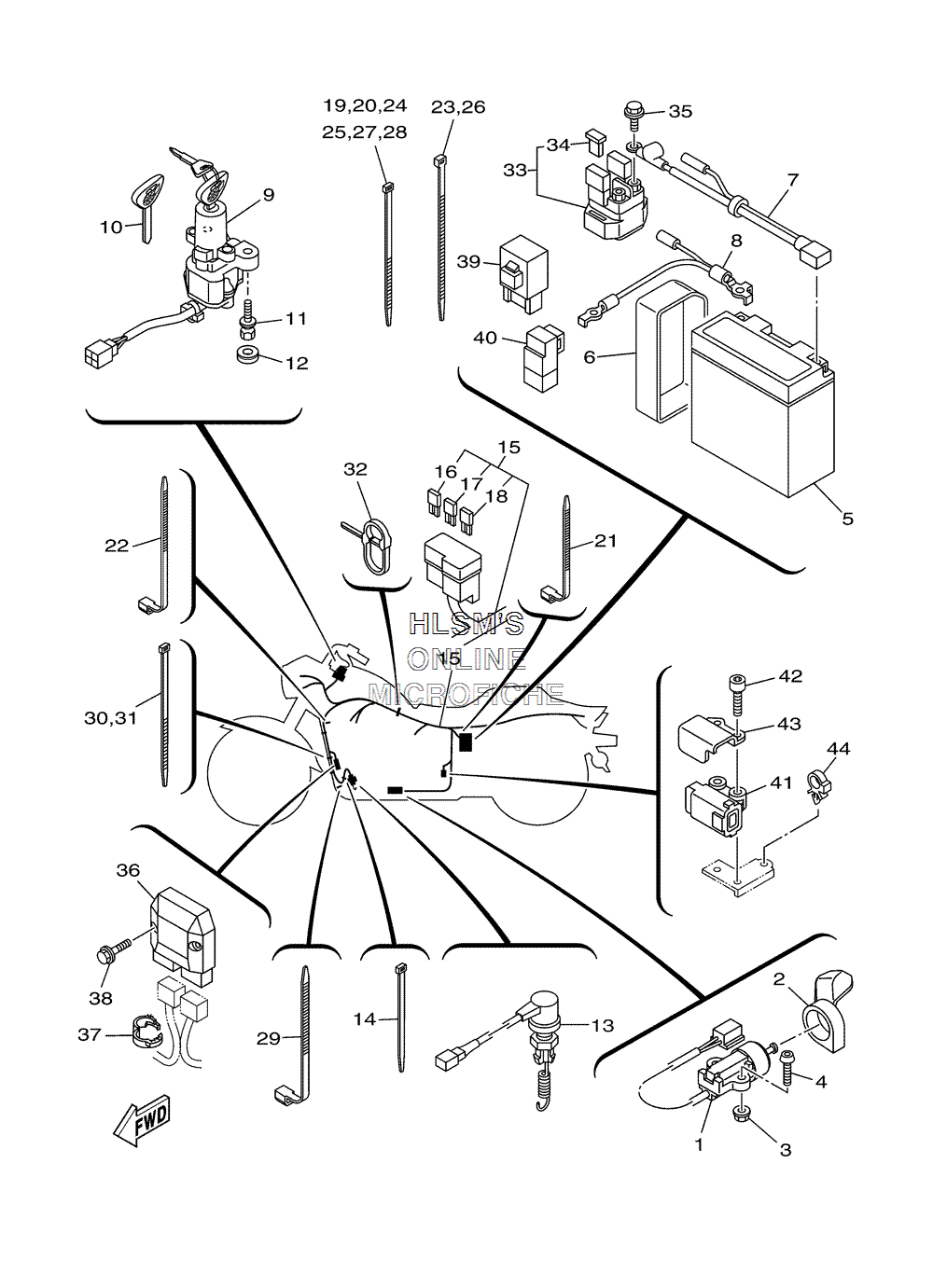

ELECTRICAL 2 для Yamaha ROAD STAR MIDNIGHT WARRIOR - 2006 года выпуска`
-
№АртикулНазвание
-
15VS-82566-C0-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
24WM-8252U-00-00 COVERCOVER
-
395607-05200-00 NUT, U FLANGENUT, U FLANGE
-
492017-05025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
55EA-82100-11-00 BATTERY ASSY (GS GT14B-4)BATTERY ASSY (GS GT14B-4)
-
64AS-82131-01-00 BAND, BATTERYBAND, BATTERY
-
75PX-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
85PX-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
95PX-82501-10-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
105PX-82511-09-00 BLANK KEYBLANK KEY
-
1190109-080G5-00 BOLTBOLT
-
125PX-23426-00-00 DAMPERDAMPER
-
135PX-82530-10-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
1490464-16061-00 CLAMPCLAMP
-
155PX-82590-20-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
165JJ-82151-00-00 ...FUSE (7.5A-BL)...FUSE (7.5A-BL)
-
175JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
185JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
191UA-82591-00-00 BANDBAND
-
201UA-82591-00-00 BANDBAND
-
2190464-13077-00 CLAMPCLAMP
-
2290464-13073-00 CLAMPCLAMP
-
233MA-82591-00-00 BANDBAND
-
241UA-82591-00-00 BANDBAND
-
251UA-82591-00-00 BANDBAND
-
263MA-82591-00-00 BANDBAND
-
271UA-82591-00-00 BANDBAND
-
281UA-82591-00-00 BANDBAND
-
2990464-15195-00 CLAMPCLAMP
-
301UA-82591-00-00 BANDBAND
-
311UA-82591-00-00 BANDBAND
-
3290464-28001-00 CLAMPCLAMP
-
334YR-81940-02-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
341AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
3595027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
365JW-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
3790464-16003-00 CLAMPCLAMP
-
3890105-06009-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
395KS-81950-30-00 RELAY ASSYRELAY ASSY
-
405JJ-81950-20-00 RELAY ASSYRELAY ASSY
-
415PS-82576-01-00 LEAN ANGLE SENSORLEAN ANGLE SENSOR
-
4291317-04025-00 BOLTBOLT
-
435PX-82388-00-00 PLATEPLATE
-
4490464-16006-00 CLAMPCLAMP
