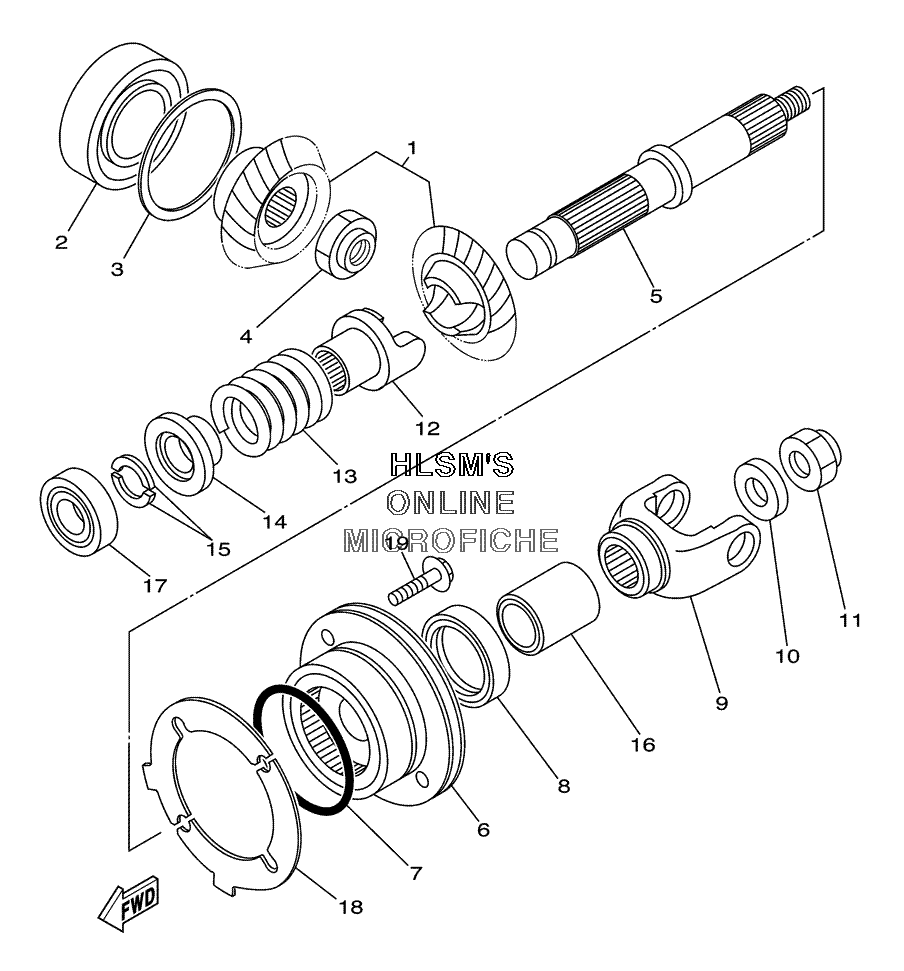

MIDDLE DRIVE GEAR для Yamaha V STAR CUSTOM - 2005 года выпуска`
-
№АртикулНазвание
-
14VR-Y1754-00-00 MIDDLE GEAR COMP.MIDDLE GEAR COMP.
-
293306-20711-00 BEARINGBEARING
-
34H7-17537-00-20 SHIM, THRUST (0.20T) (OPT)SHIM, THRUST (0.20T) (OPT)
-
34H7-17537-00-40 SHIM, THRUST (0.40T) (OPT)SHIM, THRUST (0.40T) (OPT)
-
34H7-17537-00-30 SHIM, THRUST (0.30T) (OPT)SHIM, THRUST (0.30T) (OPT)
-
490179-18396-00 NUTNUT
-
54VR-17553-00-00 SHAFT, MIDDLE DRIVENSHAFT, MIDDLE DRIVEN
-
64VR-W1752-00-00 HOUSHING COMP.HOUSHING COMP.
-
793210-71360-00 O-RINGO-RING
-
893101-35097-00 OIL SEAL, S-TYPEOIL SEAL, S-TYPE
-
922U-17556-00-00 YOKE, JOINTYOKE, JOINT
-
1090201-14633-00 WASHER, PLATEWASHER, PLATE
-
1190185-14070-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
124VR-17527-00-00 CAM, DRIVENCAM, DRIVEN
-
1390501-60716-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1422U-17524-00-00 HOLDERHOLDER
-
153H5-17529-00-00 WASHER, THRUSTWASHER, THRUST
-
1690387-2511R-00 COLLARCOLLAR
-
1793306-00401-00 BEARINGBEARING
-
183JB-17531-10-00 SHIM, PINION (0.15T) (OPT)SHIM, PINION (0.15T) (OPT)
-
183JB-17531-20-00 SHIM, PINION (0.20T) (OPT)SHIM, PINION (0.20T) (OPT)
-
183JB-17531-30-00 SHIM, PINION (0.30T) (OPT)SHIM, PINION (0.30T) (OPT)
-
183JB-17531-40-00 SHIM, PINION (0.40T) (OPT)SHIM, PINION (0.40T) (OPT)
-
183JB-17531-00-00 SHIM, PINION (0.10T) (OPT)SHIM, PINION (0.10T) (OPT)
-
183JB-17531-50-00 SHIM, PINION (0.50T) (OPT)SHIM, PINION (0.50T) (OPT)
-
1995827-08035-00 BOLT, FLANGEBOLT, FLANGE
