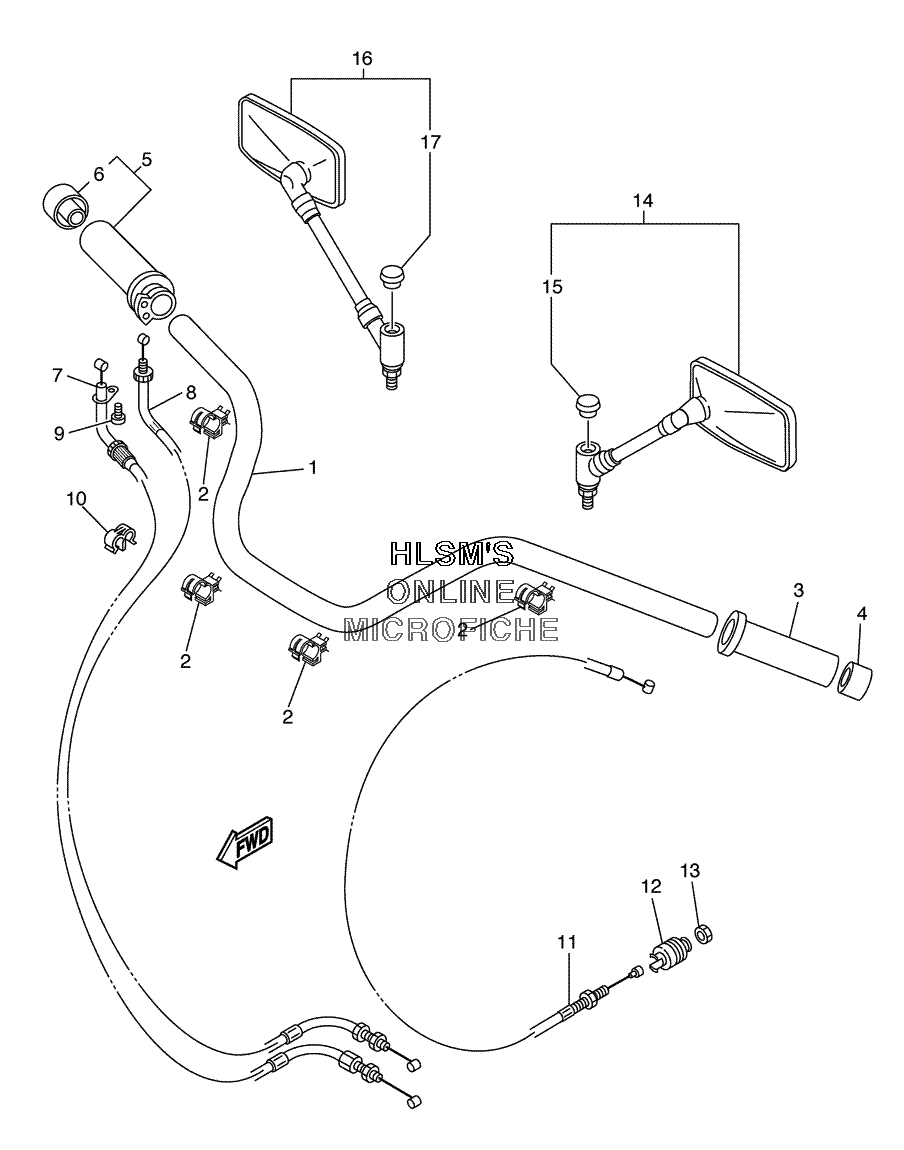

HANDLEBAR W/ CABLES - MIRRORS для Yamaha V STAR CUSTOM - 2005 года выпуска`
-
№АртикулНазвание
-
14VR-26111-20-00 HANDLEBARHANDLEBAR
-
290464-15192-00 CLAMPCLAMP
-
34NK-26241-00-00 GRIP (LEFT)GRIP (LEFT)
-
44NK-2628J-00-00 CAP, GRIPCAP, GRIP
-
54NK-26240-00-00 GRIP ASSY.GRIP ASSY.
-
64NK-2635J-00-00 ...CAP 2...CAP 2
-
75KP-26311-10-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
85KP-26312-10-00 CABLE, THROTTLE 2CABLE, THROTTLE 2
-
998507-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1090464-06214-00 CLAMPCLAMP
-
115KP-26335-00-00 CABLE, CLUTCHCABLE, CLUTCH
-
121E6-26342-00-00 BOOT, CABLEBOOT, CABLE
-
1395304-08700-00 NUTNUT
-
144VR-26280-02-00 MIRROR ASSY. (LEFT)MIRROR ASSY. (LEFT)
-
155PS-26133-01-00 ...CAP...CAP
-
164VR-26290-02-00 MIRROR ASSY. (RIGHT)MIRROR ASSY. (RIGHT)
-
175PS-26133-01-00 ...CAP...CAP
