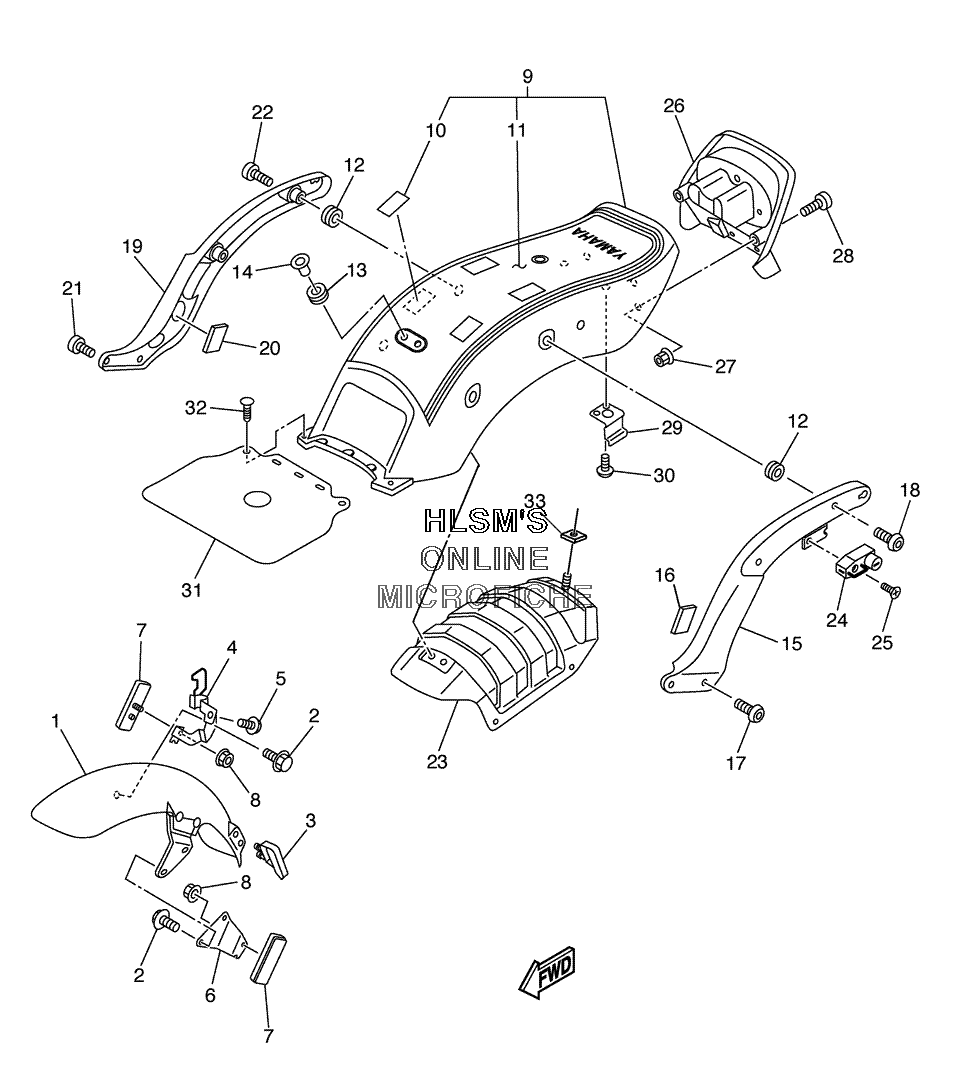

FENDER - FRONT / REAR для Yamaha V STAR CUSTOM - 2005 года выпуска`
-
№АртикулНазвание
-
14TR-21510-10-P0 FRONT FENDER COMP. (BLACK METALLIC X)FRONT FENDER COMP. (BLACK METALLIC X)
-
295027-08012-00 BOLT, FLANGEBOLT, FLANGE
-
34VR-21518-00-00 HOLDER, CABLEHOLDER, CABLE
-
45FB-21598-01-00 HOLDER, WIRE 2HOLDER, WIRE 2
-
595807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
65FB-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
711H-85110-01-00 REFLECTOR ASSY.REFLECTOR ASSY.
-
895707-05500-00 NUT, FLANGENUT, FLANGE
-
94TR-W2161-0F-PF REAR FENDER COMP. (BLACK METALLIC X)REAR FENDER COMP. (BLACK METALLIC X)
-
103SP-21732-00-00 ...SEAL 1...SEAL 1
-
115FB-21675-20-00 ...GRAPHIC, REAR FENDER...GRAPHIC, REAR FENDER
-
1290480-18418-00 GROMMETGROMMET
-
1390480-13398-00 GROMMETGROMMET
-
1490387-067N5-00 COLLARCOLLAR
-
154TR-21613-10-P0 STAY, FENDER 1 (MATTE BLACK 2)STAY, FENDER 1 (MATTE BLACK 2)
-
163SX-2139X-00-00 DAMPERDAMPER
-
1790157-10043-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1892014-08040-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
194TR-21614-10-P0 STAY, FENDER 2 (MATTE BLACK 2)STAY, FENDER 2 (MATTE BLACK 2)
-
203SX-2139X-00-00 DAMPERDAMPER
-
2190157-10043-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2292014-08040-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
234TR-21643-01-00 STAY, REARSTAY, REAR
-
244R8-21308-00-00 HELMET HANGER ASSY.HELMET HANGER ASSY.
-
2590149-06154-00 SCREWSCREW
-
265FB-2162R-00-00 FENDER 2FENDER 2
-
2790179-05523-00 NUTNUT
-
2890154-05011-00 SCREW, BINDINGSCREW, BINDING
-
294TR-21679-00-00 HOLDER, HARNESSHOLDER, HARNESS
-
3090167-05025-00 SCREW, TAPPINGSCREW, TAPPING
-
314TR-21629-00-00 GUARD, MUDGUARD, MUD
-
3290269-05039-00 RIVETRIVET
-
335FB-24737-00-00 DAMPERDAMPER
