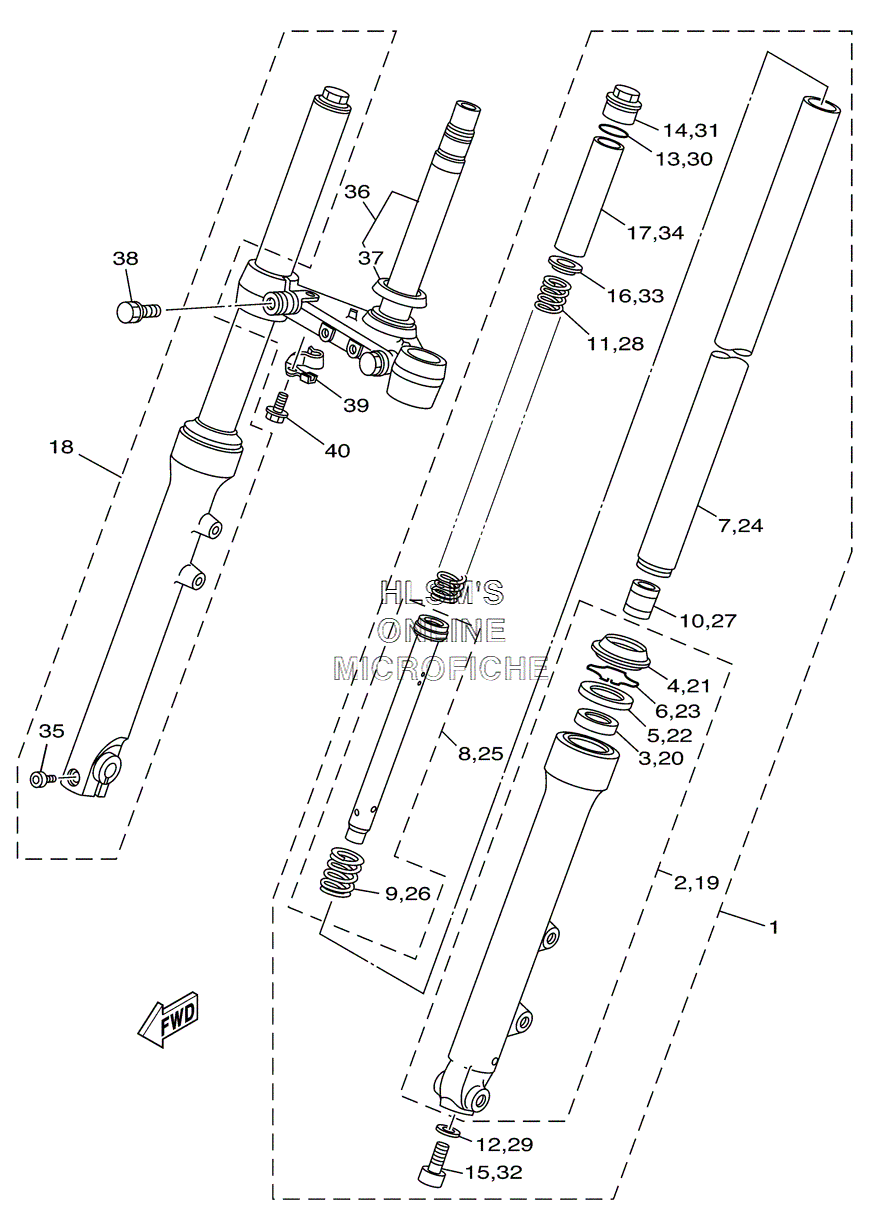

SUSPENSION - FRONT FORK для Yamaha XV 250 VIRAGO - 2004 года выпуска`
-
№АртикулНазвание
-
12UJ-23102-11-00 FRONT FORK ASSY. (L.H)FRONT FORK ASSY. (L.H)
-
22UJ-23126-11-00 ...TUBE, OUTER (LEFT)...TUBE, OUTER (LEFT)
-
351Y-23125-00-00 ......METAL, SLIDE 1......METAL, SLIDE 1
-
42UJ-23144-00-00 ......SEAL, DUST......SEAL, DUST
-
52UJ-23145-00-00 ......OIL SEAL......OIL SEAL
-
622W-23153-L0-00 ......RING, SNAP......RING, SNAP
-
72UJ-23110-00-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
82UJ-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
92W6-23151-00-00 ......SPRING, REBOUND......SPRING, REBOUND
-
103R6-23173-L0-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
112UJ-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
12509-23158-L0-00 ...GASKET...GASKET
-
133J2-23114-00-00 ...O-RING...O-RING
-
142JN-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
15278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
163DM-23149-10-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
1715R-23118-00-00 ...SPACER...SPACER
-
182UJ-23103-11-00 FRONT FORK ASSY. (R.H)FRONT FORK ASSY. (R.H)
-
192UJ-23136-11-00 ...TUBE, OUTER (RIGHT)...TUBE, OUTER (RIGHT)
-
2051Y-23125-00-00 ......METAL, SLIDE 1......METAL, SLIDE 1
-
212UJ-23144-00-00 ......SEAL, DUST......SEAL, DUST
-
222UJ-23145-00-00 ......OIL SEAL......OIL SEAL
-
2322W-23153-L0-00 ......RING, SNAP......RING, SNAP
-
242UJ-23110-00-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
252UJ-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
262W6-23151-00-00 ......SPRING, REBOUND......SPRING, REBOUND
-
273R6-23173-L0-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
282UJ-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
29509-23158-L0-00 ...GASKET...GASKET
-
303J2-23114-00-00 ...O-RING...O-RING
-
312JN-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
32278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
333DM-23149-10-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
3415R-23118-00-00 ...SPACER...SPACER
-
3591314-08035-00 ...BOLT...BOLT
-
362UJ-23340-20-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
37164-23462-00-00 ...SEAL, STEERING...SEAL, STEERING
-
382UJ-23346-10-00 BOLT 1BOLT 1
-
393DM-25886-10-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
4095807-06010-00 BOLT, FLANGEBOLT, FLANGE
