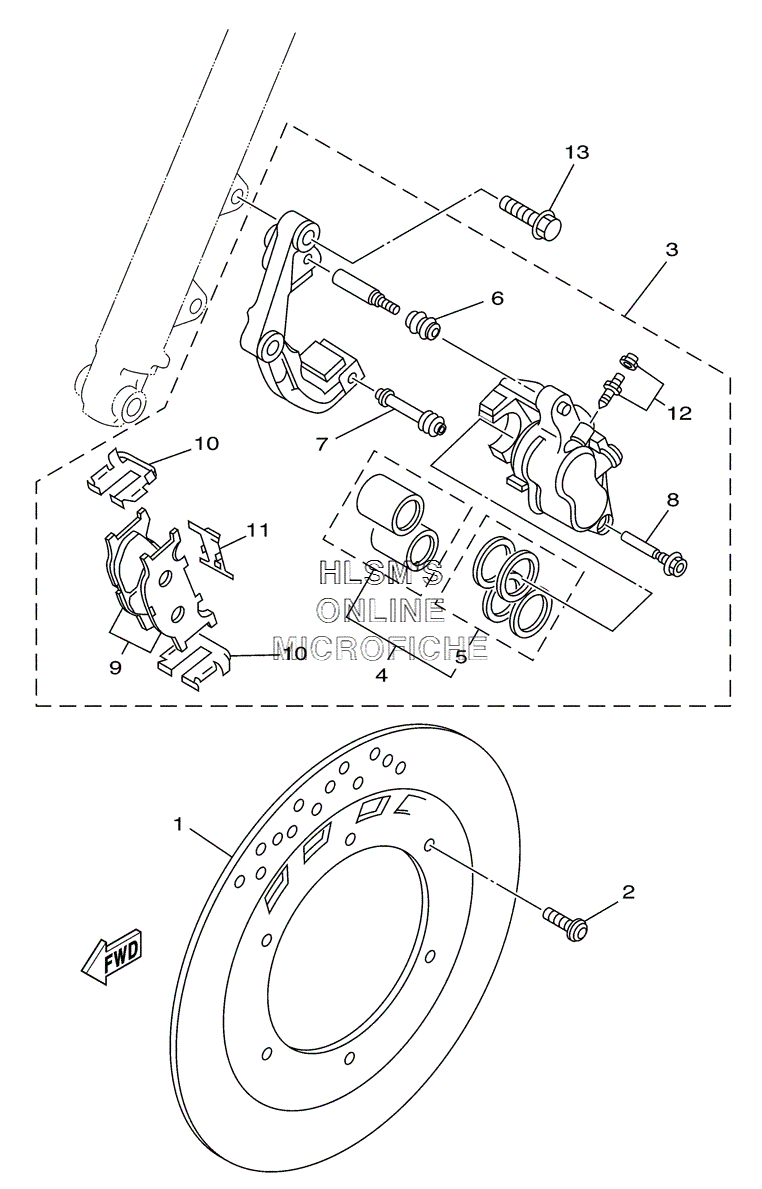

BRAKE - FRONT CALIPER для Yamaha XV 250 VIRAGO - 2004 года выпуска`
-
№АртикулНазвание
-
13LP-2582T-00-00 DISC, BRAKE (LEFT)DISC, BRAKE (LEFT)
-
290109-081F0-00 BOLTBOLT
-
34HM-2580T-00-00 CALIPER ASSY. (LEFT)CALIPER ASSY. (LEFT)
-
44FU-W0057-50-00 ...PISTON ASSY., CALIPER...PISTON ASSY., CALIPER
-
54FU-W0047-50-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
65R2-25937-00-00 ...BOOT 2...BOOT 2
-
73YX-25937-00-00 ...BOOT 2...BOOT 2
-
83YX-25926-00-00 ...BOLT...BOLT
-
94HM-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
104BP-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
113YX-25929-00-00 ...SPRING, ANTI RATTLE...SPRING, ANTI RATTLE
-
1251L-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
1390105-10638-00 BOLT, FLANGEBOLT, FLANGE
