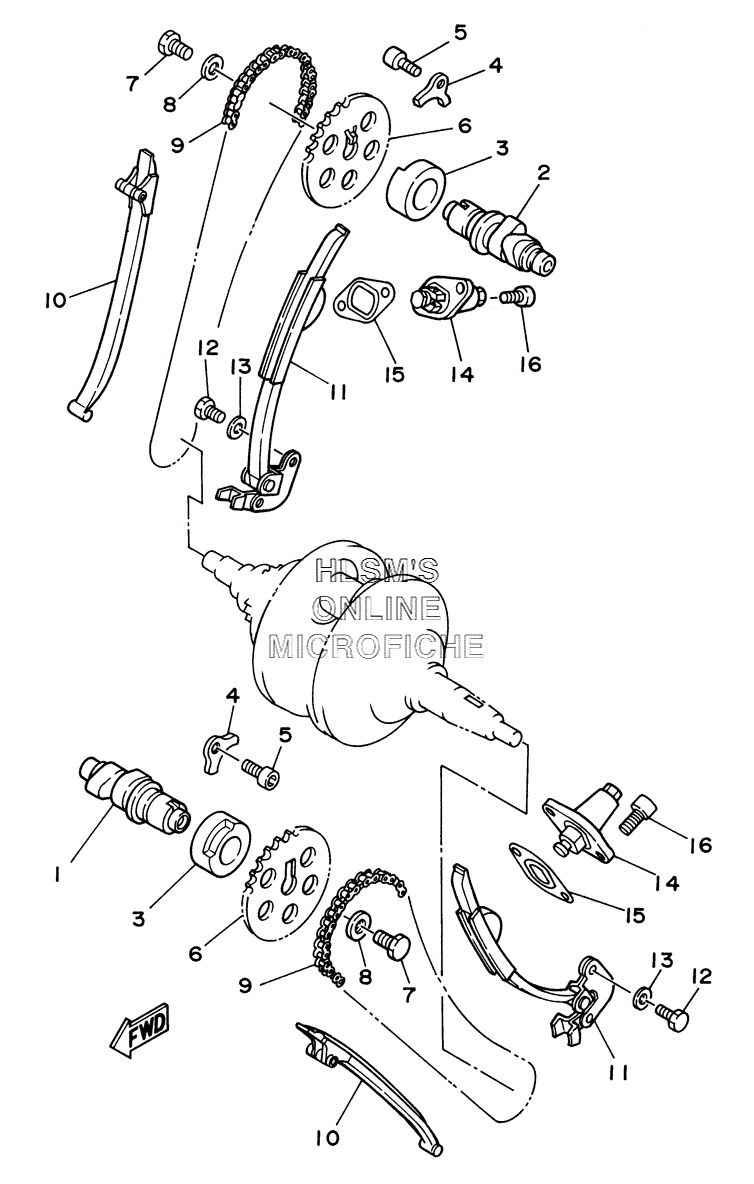

CAMSHAFT W/ CHAIN для Yamaha XV 250 VIRAGO - 2004 года выпуска`
-
№АртикулНазвание
-
12UJ-12171-00-00 CAMSHAFT 1CAMSHAFT 1
-
22UJ-12181-00-00 CAMSHAFT 2CAMSHAFT 2
-
390381-22070-00 BUSH, SOLIDBUSH, SOLID
-
42UJ-1111F-00-00 PLATEPLATE
-
591317-06012-00 BOLTBOLT
-
62UJ-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
790101-08590-00 BOLTBOLT
-
890201-08326-00 WASHER, PLATEWASHER, PLATE
-
994580-25110-00 CHAIN (DID25-110LE)CHAIN (DID25-110LE)
-
102UJ-12231-00-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
112UJ-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
1297027-06012-00 BOLTBOLT
-
1392907-06600-00 WASHER, PLATEWASHER, PLATE
-
142UJ-12210-01-00 TENSIONER ASSY., CAM CHAINTENSIONER ASSY., CAM CHAIN
-
154RF-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
1691314-06016-00 BOLTBOLT
