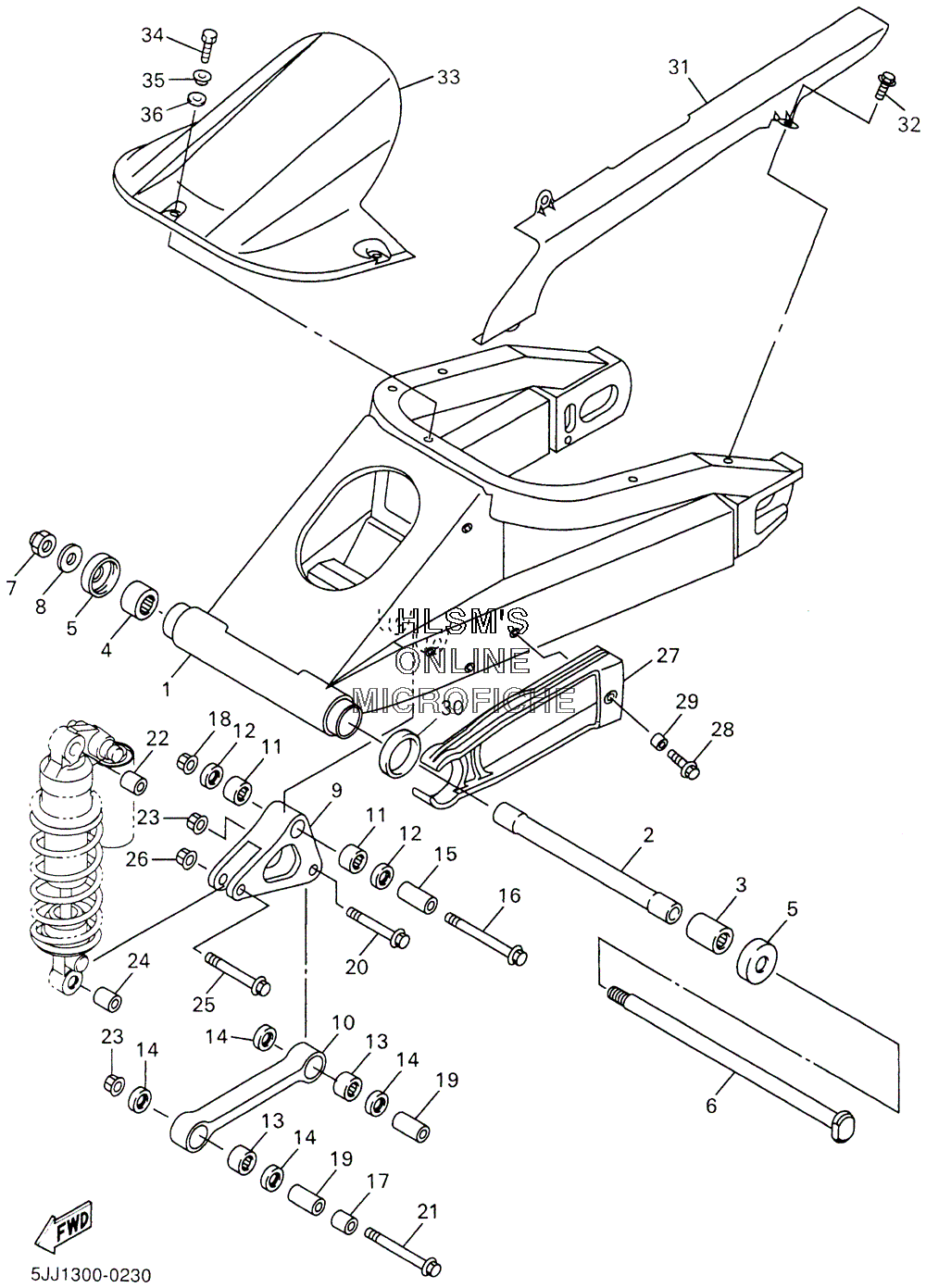

SUSPENSION - REAR ARM для Yamaha YZF-R1 - 2001 года выпуска`
-
№АртикулНазвание
-
15JJ-22110-00-00 REAR ARM COMP.REAR ARM COMP.
-
24XV-22184-00-00 BUSHBUSH
-
393315-42523-00 BEARINGBEARING
-
493315-42536-00 BEARINGBEARING
-
55JJ-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
64FN-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
790185-18167-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
890201-18264-00 WASHER, PLATEWASHER, PLATE
-
94XV-2217A-00-00 ARM, RELAYARM, RELAY
-
104XV-2217M-00-00 ARM 1ARM 1
-
1193315-31758-00 BEARINGBEARING
-
1293109-17071-00 OIL SEALOIL SEAL
-
1393315-31758-00 BEARINGBEARING
-
1493109-17071-00 OIL SEALOIL SEAL
-
1590387-1012B-00 COLLARCOLLAR
-
1690105-10021-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1790387-1013U-00 COLLARCOLLAR
-
1895607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1990387-1012A-00 COLLARCOLLAR
-
2090105-10017-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2190105-10018-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2290387-1013U-00 COLLARCOLLAR
-
2395607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2490387-1012A-00 COLLARCOLLAR
-
2590105-10017-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2695607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
275JJ-22151-00-00 SEAL, GUARDSEAL, GUARD
-
2890119-06063-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2990387-06022-00 COLLARCOLLAR
-
305JJ-2214F-00-00 DAMPER 1DAMPER 1
-
314XV-22311-01-00 CASE, CHAINCASE, CHAIN
-
3290119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
334XV-21650-01-4B REAR FENDER COMP. (BLACK (BL2) FOR VIVID RED (VRC1))REAR FENDER COMP. (BLACK (BL2) FOR VIVID RED (VRC1))
-
334XV-21650-01-P1 REAR FENDER COMP. (DEEP PURPLISH BLUE METALLIC (DPBMC))REAR FENDER COMP. (DEEP PURPLISH BLUE METALLIC (DPBMC))
-
3497017-06016-00 BOLTBOLT
-
3590387-0615J-00 COLLARCOLLAR
-
364XV-28372-00-00 DAMPERDAMPER
