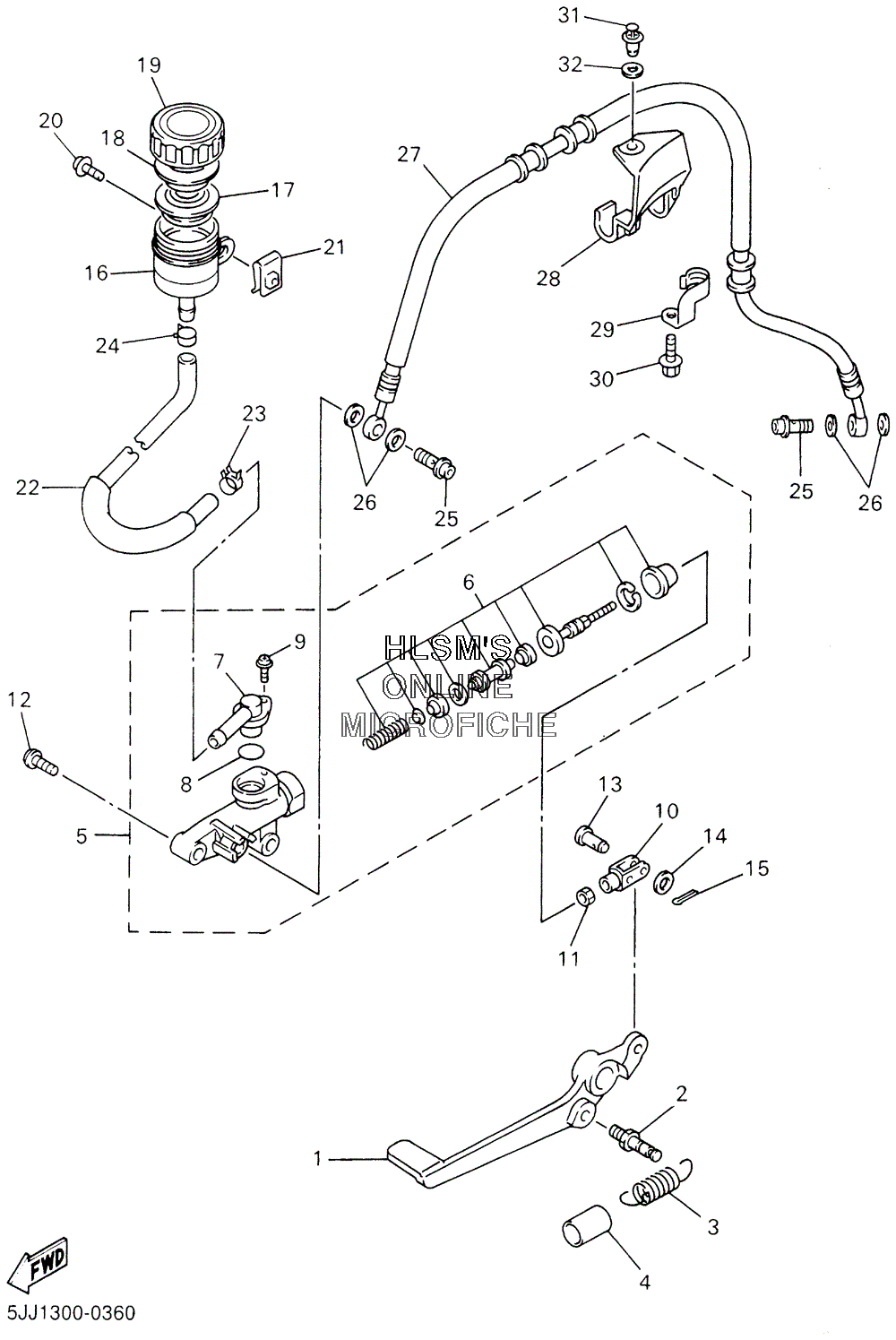

BRAKE - REAR MASTER CYLINDER для Yamaha YZF-R1 - 2001 года выпуска`
-
№АртикулНазвание
-
15JJ-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
25JJ-27813-00-00 PIN, PEDAL CRANKPIN, PEDAL CRANK
-
390506-20377-00 SPRING, TENSIONSPRING, TENSION
-
490446-17346-00 HOSEHOSE
-
53TU-2583V-01-00 RR. MASTER CYL ASSY.RR. MASTER CYL ASSY.
-
63TU-W0042-51-00 ...CYL KIT, MASTER...CYL KIT, MASTER
-
73LN-2582A-00-00 ...JOINT...JOINT
-
83LN-2585F-00-00 ...O-RING...O-RING
-
93LN-2585H-00-00 ...SCREW,SET...SCREW,SET
-
104XV-27222-01-00 JOINTJOINT
-
1195380-08700-00 NUTNUT
-
1290109-06013-00 BOLTBOLT
-
1391701-06018-00 PIN, CLEVISPIN, CLEVIS
-
1492907-06200-00 WASHERWASHER
-
1591490-16020-00 PIN, COTTERPIN, COTTER
-
165JJ-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
172VN-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
182VN-25855-00-00 BUSH,DIAPHRAGMBUSH,DIAPHRAGM
-
193XP-25852-50-00 CAP, RESERVOIRCAP, RESERVOIR
-
2098517-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2190183-06069-00 NUT, SPRINGNUT, SPRING
-
225JJ-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
2390467-14057-00 CLIPCLIP
-
2490467-11044-00 CLIPCLIP
-
2590401-10172-00 BOLT, UNIONBOLT, UNION
-
2690201-10118-00 WASHER, PLATEWASHER, PLATE
-
274XV-25874-00-00 HOSE, BRAKEHOSE, BRAKE
-
284XV-25886-01-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
294FM-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
3095027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
3190269-08001-00 RIVETRIVET
-
325JJ-22332-00-00 DAMPER, CHAIN CASEDAMPER, CHAIN CASE
