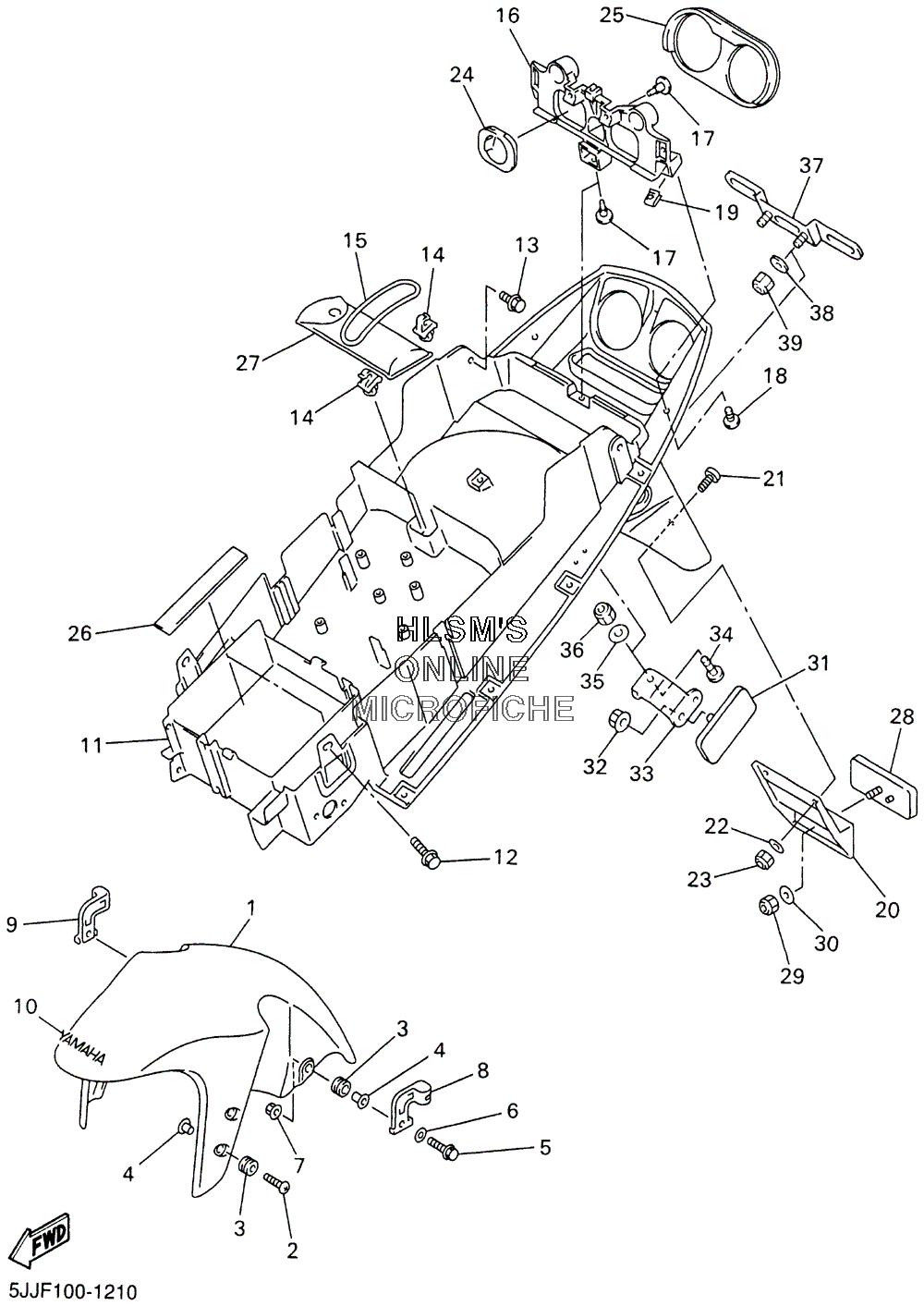

FENDER - FRONT / REAR для Yamaha YZF-R1 - 2001 года выпуска
-
№АртикулНазвание
-
14XV-21511-01-P1 FENDER, FRONT (DEEP PURPLISH BLUE METALLIC (DPBMC))FENDER, FRONT (DEEP PURPLISH BLUE METALLIC (DPBMC))
-
14XV-21511-10-00 FENDER, FRONT (FOR VIVID RED (VRC1))FENDER, FRONT (FOR VIVID RED (VRC1))
-
290154-06061-00 SCREW, BINDINGSCREW, BINDING
-
390480-12072-00 GROMMETGROMMET
-
490387-065J6-00 COLLARCOLLAR
-
597017-06030-00 BOLTBOLT
-
692907-06600-00 WASHER, PLATEWASHER, PLATE
-
795707-06500-00 NUT, FLANGENUT, FLANGE
-
84XV-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
94XV-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
1099241-00100-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
115JJ-21611-00-00 FENDER, REARFENDER, REAR
-
1297017-06020-00 BOLTBOLT
-
1390119-06009-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1490464-07259-00 CLAMPCLAMP
-
154XV-21376-00-00 BAND, TOOLBAND, TOOL
-
165JJ-2117E-00-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
1790269-07077-00 RIVETRIVET
-
1890154-05013-00 SCREW, BINDINGSCREW, BINDING
-
1990183-05061-00 NUT, SPRINGNUT, SPRING
-
204XV-85132-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
2190149-04278-00 SCREWSCREW
-
2290201-044H9-00 WASHER, PLATEWASHER, PLATE
-
2395617-04100-00 NUT, UNUT, U
-
245JJ-2172X-00-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
255JJ-21669-01-00 SEALSEAL
-
261AE-2834E-00-00 DAMPERDAMPER
-
274XV-28100-00-00 TOOL KITTOOL KIT
-
283Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
2995617-05100-00 NUT, UNUT, U
-
3090201-05725-00 WASHER, PLATEWASHER, PLATE
-
313Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
3295707-05500-00 NUT, FLANGENUT, FLANGE
-
334XV-21688-00-00 BRACKET, REAR STAYBRACKET, REAR STAY
-
3490149-04278-00 SCREWSCREW
-
3590201-044H9-00 WASHER, PLATEWASHER, PLATE
-
3695617-04100-00 NUT, UNUT, U
-
375JJ-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
3890201-06057-00 WASHER, PLATEWASHER, PLATE
-
3995617-06100-00 NUTNUT
