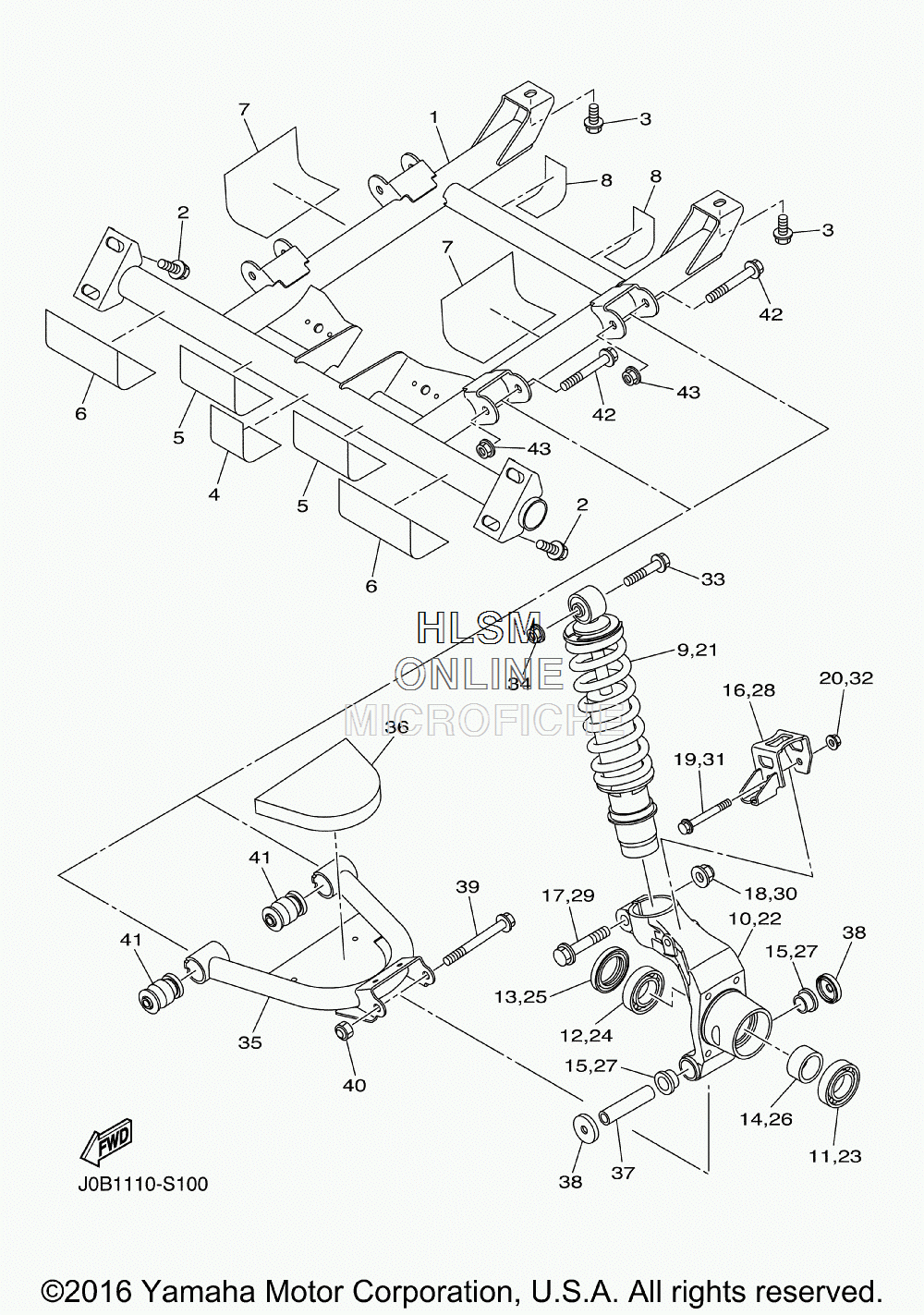

SUSPENSION - SWING ARM для Yamaha DRIVE2 EFI (DR2A17EFI SERIAL: J0B-000101) - 2017 года выпуска`
-
№АртикулНазвание
-
1J0B-F2110-02-00 REAR ARM COMP.REAR ARM COMP.
-
295822-10020-00 BOLT, FLANGEBOLT, FLANGE
-
3J0B-F1531-00-00 BOLTBOLT
-
4J0B-F8218-00-00 SEAL 1SEAL 1
-
5J0B-F8228-00-00 SEAL 2SEAL 2
-
6J0B-F8238-00-00 SEAL 3SEAL 3
-
7J0B-F8268-00-00 SEAL 4SEAL 4
-
8J0B-F8278-00-00 SEAL 5SEAL 5
-
9J0B-F2210-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
10J0B-F53A1-01-00 KNUCKLE, REARKNUCKLE, REAR
-
1193306-00622-00 BEARINGBEARING
-
1293306-006Y4-00 BEARINGBEARING
-
1393106-38046-00 OIL SEALOIL SEAL
-
14J0B-F3113-00-00 COLLARCOLLAR
-
1590381-17800-00 BUSH, SOLIDBUSH, SOLID
-
16J0B-F537W-00-00 BRACKET 1BRACKET 1
-
1795812-12055-00 BOLT, FLANGEBOLT, FLANGE
-
1895602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1995812-08060-00 BOLT, FLANGEBOLT, FLANGE
-
2095702-08500-00 NUT, FLANGENUT, FLANGE
-
21J0B-F2210-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
22J0B-F53A1-01-00 KNUCKLE, REARKNUCKLE, REAR
-
2393306-00622-00 BEARINGBEARING
-
2493306-006Y4-00 BEARINGBEARING
-
2593106-38046-00 OIL SEALOIL SEAL
-
26J0B-F3113-00-00 COLLARCOLLAR
-
2790381-17800-00 BUSH, SOLIDBUSH, SOLID
-
28J0B-F537W-00-00 BRACKET 1BRACKET 1
-
2995812-12055-00 BOLT, FLANGEBOLT, FLANGE
-
3095602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3195812-08060-00 BOLT, FLANGEBOLT, FLANGE
-
3295702-08500-00 NUT, FLANGENUT, FLANGE
-
3395812-10055-00 BOLT, FLANGEBOLT, FLANGE
-
3495602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
35J0B-F2171-01-00 ARM, REAR 1ARM, REAR 1
-
36J0B-K8254-00-00 PAD, SILENCER 4PAD, SILENCER 4
-
375KM-23448-00-00 SPACERSPACER
-
385UG-23517-10-00 COVER, THRUST 1COVER, THRUST 1
-
3990105-10185-00 BOLT, FLANGEBOLT, FLANGE
-
4090185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
412HR-23526-00-00 BUSHBUSH
-
4290105-10267-00 BOLT, FLANGEBOLT, FLANGE
-
4395602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
