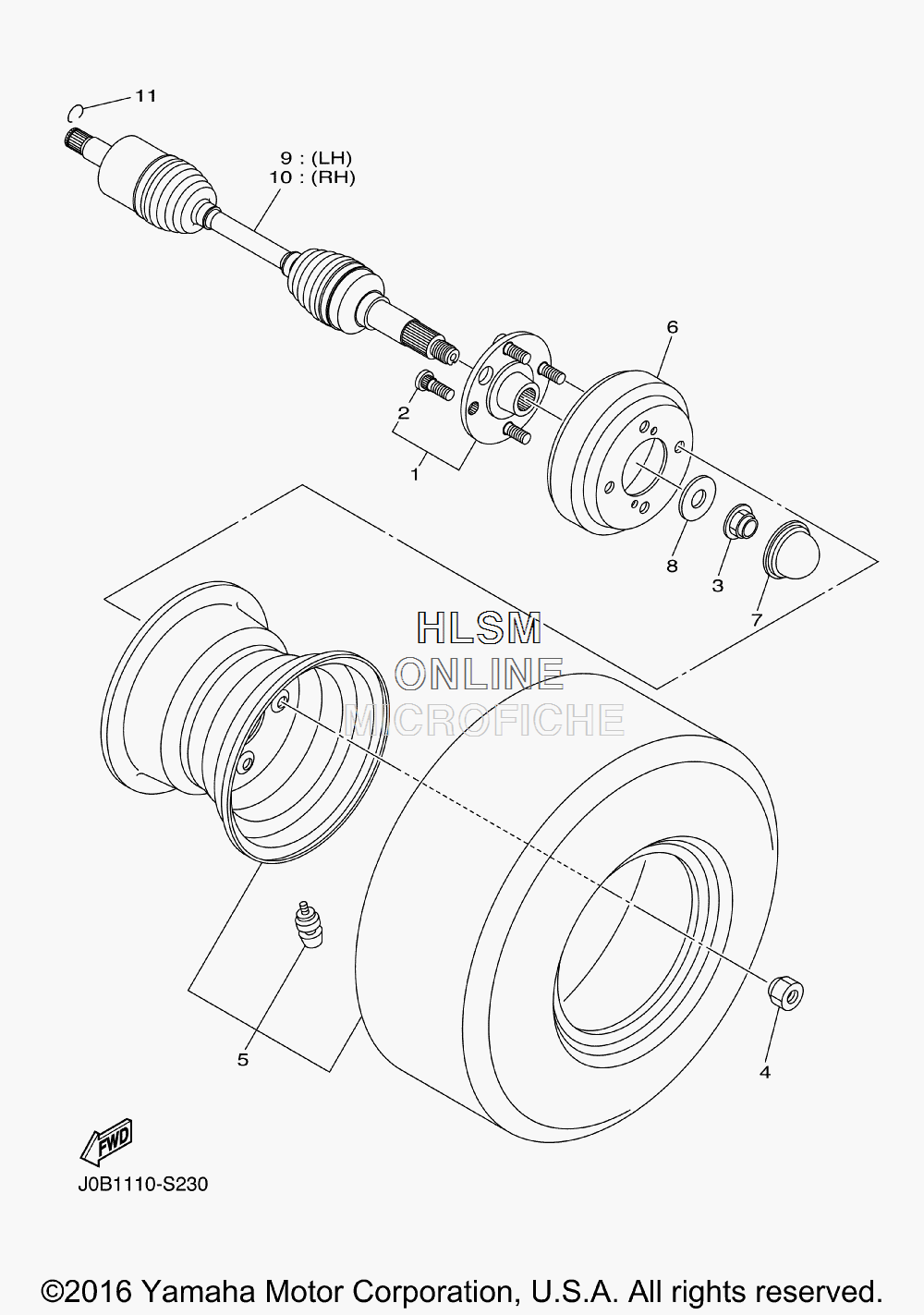

REAR AXLE W/ WHEEL- TRANSAXLE для Yamaha DRIVE2 EFI (DR2A17EFI SERIAL: J0B-000101) - 2017 года выпуска`
-
№АртикулНазвание
-
1J0B-F5310-01-00 HUB ASSYHUB ASSY
-
290114-12004-00 ...BOLT, SERRATION...BOLT, SERRATION
-
390179-20016-00 NUTNUT
-
490179-12262-00 NUTNUT
-
5JW1-F5100-01-00 WHEEL ASSY (18X8.50-8-4PLY)WHEEL ASSY (18X8.50-8-4PLY)
-
6JW8-G6521-00-00 DRUMDRUM
-
7JW8-F5118-00-00 COVER, HUB DUSTCOVER, HUB DUST
-
890201-20035-00 WASHER, PLATEWASHER, PLATE
-
9J0B-F518F-00-00 DRIVE SHAFT ASSYDRIVE SHAFT ASSY
-
10J0B-F518G-00-00 DRIVE SHAFT ASSYDRIVE SHAFT ASSY
-
1193450-22119-00 CIRCLIPCIRCLIP
