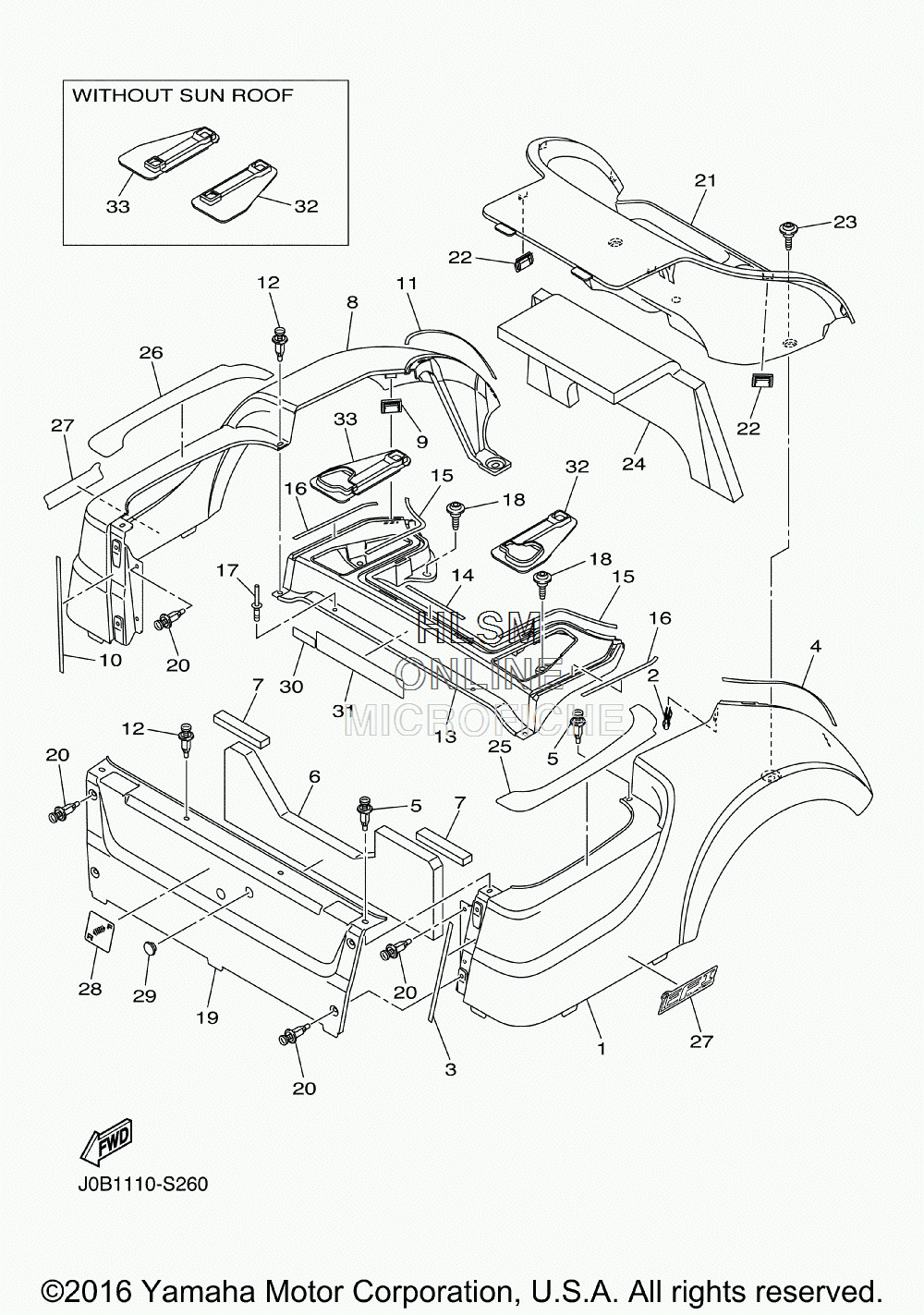

BODY 2 для Yamaha DRIVE2 EFI (DR2A17EFI SERIAL: J0B-000101) - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    J0B-K8111-A0-00 PANEL, BODY SHELL (FOR BW1 - BLUISH WHITE)
    PANEL, BODY SHELL (FOR BW1 - BLUISH WHITE)
  • 1
    J0B-K8111-10-00 PANEL, BODY SHELL (FOR VDGS1 - VERY DARK GREEN)
    PANEL, BODY SHELL (FOR VDGS1 - VERY DARK GREEN)
  • 1
    J0B-K8111-60-00 PANEL, BODY SHELL (FOR DNMC - DARK GRAY METALLIC)
    PANEL, BODY SHELL (FOR DNMC - DARK GRAY METALLIC)
  • 1
    J0B-K8111-50-00 PANEL, BODY SHELL (FOR HTR - HEAT RED)
    PANEL, BODY SHELL (FOR HTR - HEAT RED)
  • 1
    J0B-K8111-B0-00 PANEL, BODY SHELL (FOR NYS4 - GRAYISH YELLOW)
    PANEL, BODY SHELL (FOR NYS4 - GRAYISH YELLOW)
  • 1
    J0B-K8111-40-00 PANEL, BODY SHELL (FOR DYNM2 - DARK YELLOWISH GRAY)
    PANEL, BODY SHELL (FOR DYNM2 - DARK YELLOWISH GRAY)
  • 1
    J0B-K8111-30-00 PANEL, BODY SHELL (FOR LNMP - SILVER METALLIC)
    PANEL, BODY SHELL (FOR LNMP - SILVER METALLIC)
  • 1
    J0B-K8111-00-00 PANEL, BODY SHELL (FOR DNBME - GRAYISH BLUE)
    PANEL, BODY SHELL (FOR DNBME - GRAYISH BLUE)
  • 1
    J0B-K8111-20-00 PANEL, BODY SHELL (FOR LNYM8 - CHAMPAGNE METALLIC)
    PANEL, BODY SHELL (FOR LNYM8 - CHAMPAGNE METALLIC)
  • 2
    J0B-F3447-00-00 CLIP
    CLIP
  • 3
    J0B-K814E-00-00 SEAL, BODY SIDE 1
    SEAL, BODY SIDE 1
  • 4
    J0B-K814F-00-00 SEAL, BODY SIDE 2
    SEAL, BODY SIDE 2
  • 5
    90269-07803-00 RIVET
    RIVET
  • 6
    J0B-K8251-00-00 PAD, SILENCER 1
    PAD, SILENCER 1
  • 7
    J0D-K825G-00-00 PAD, SILENCER 13
    PAD, SILENCER 13
  • 8
    J0B-K8112-60-00 PANEL, BODY SHELL (FOR DNMC - DARK GRAY METALLIC)
    PANEL, BODY SHELL (FOR DNMC - DARK GRAY METALLIC)
  • 8
    J0B-K8112-50-00 PANEL, BODY SHELL (FOR HTR - HEAT RED)
    PANEL, BODY SHELL (FOR HTR - HEAT RED)
  • 8
    J0B-K8112-B0-00 PANEL, BODY SHELL (FOR NYS4 - GRAYISH YELLOW)
    PANEL, BODY SHELL (FOR NYS4 - GRAYISH YELLOW)
  • 8
    J0B-K8112-40-00 PANEL, BODY SHELL (FOR DYNM2 - DARK YELLOWISH GRAY)
    PANEL, BODY SHELL (FOR DYNM2 - DARK YELLOWISH GRAY)
  • 8
    J0B-K8112-30-00 PANEL, BODY SHELL (FOR LNMP - SILVER METALLIC)
    PANEL, BODY SHELL (FOR LNMP - SILVER METALLIC)
  • 8
    J0B-K8112-20-00 PANEL, BODY SHELL (FOR LNYM8 - CHAMPAGNE METALLIC)
    PANEL, BODY SHELL (FOR LNYM8 - CHAMPAGNE METALLIC)
  • 8
    J0B-K8112-00-00 PANEL, BODY SHELL (FOR DNBME - GRAYISH BLUE)
    PANEL, BODY SHELL (FOR DNBME - GRAYISH BLUE)
  • 8
    J0B-K8112-10-00 PANEL, BODY SHELL (FOR VDGS1 - VERY DARK GREEN)
    PANEL, BODY SHELL (FOR VDGS1 - VERY DARK GREEN)
  • 8
    J0B-K8112-A0-00 PANEL, BODY SHELL (FOR BW1 - BLUISH WHITE)
    PANEL, BODY SHELL (FOR BW1 - BLUISH WHITE)
  • 9
    J0B-F3447-00-00 CLIP
    CLIP
  • 10
    J0B-K814E-00-00 SEAL, BODY SIDE 1
    SEAL, BODY SIDE 1
  • 11
    J0B-K814F-00-00 SEAL, BODY SIDE 2
    SEAL, BODY SIDE 2
  • 12
    90269-07803-00 RIVET
    RIVET
  • 13
    J0B-K819H-00-00 SHELL, REAR BODY
    SHELL, REAR BODY
  • 14
    J0B-K814R-00-00 SEAL, BODY SIDE 3
    SEAL, BODY SIDE 3
  • 15
    J0B-K814T-00-00 SEAL, BODY SIDE 4
    SEAL, BODY SIDE 4
  • 16
    J0B-K814U-00-00 SEAL, BODY SIDE
    SEAL, BODY SIDE
  • 17
    JW7-K7329-00-00 RIVET
    RIVET
  • 18
    J0B-F1738-00-00 BOLT
    BOLT
  • 19
    J0B-K8141-60-00 PANEL, INTERMEDIATE BODY (FOR DNMC - DARK GRAY METALLIC)
    PANEL, INTERMEDIATE BODY (FOR DNMC - DARK GRAY METALLIC)
  • 19
    J0B-K8141-B0-00 PANEL, INTERMEDIATE BODY (FOR NYS4 - GRAYISH YELLOW)
    PANEL, INTERMEDIATE BODY (FOR NYS4 - GRAYISH YELLOW)
  • 19
    J0B-K8141-50-00 PANEL, INTERMEDIATE BODY (FOR HTR - HEAT RED)
    PANEL, INTERMEDIATE BODY (FOR HTR - HEAT RED)
  • 19
    J0B-K8141-A0-00 PANEL, INTERMEDIATE BODY (FOR BW1 - BLUISH WHITE)
    PANEL, INTERMEDIATE BODY (FOR BW1 - BLUISH WHITE)
  • 19
    J0B-K8141-10-00 PANEL, INTERMEDIATE BODY (FOR VDGS1 - VERY DARK GREEN)
    PANEL, INTERMEDIATE BODY (FOR VDGS1 - VERY DARK GREEN)
  • 19
    J0B-K8141-00-00 PANEL, INTERMEDIATE BODY (FOR DNBME - GRAYISH BLUE)
    PANEL, INTERMEDIATE BODY (FOR DNBME - GRAYISH BLUE)
  • 19
    J0B-K8141-20-00 PANEL, INTERMEDIATE BODY (FOR LNYM8 - CHAMPAGNE METALLIC)
    PANEL, INTERMEDIATE BODY (FOR LNYM8 - CHAMPAGNE METALLIC)
  • 19
    J0B-K8141-30-00 PANEL, INTERMEDIATE BODY (FOR LNMP - SILVER METALLIC)
    PANEL, INTERMEDIATE BODY (FOR LNMP - SILVER METALLIC)
  • 19
    J0B-K8141-40-00 PANEL, INTERMEDIATE BODY (FOR DYNM2 - DARK YELLOWISH GRAY)
    PANEL, INTERMEDIATE BODY (FOR DYNM2 - DARK YELLOWISH GRAY)
  • 20
    90269-07803-00 RIVET
    RIVET
  • 21
    J0B-K8237-01-00 COVER, REAR FLOOR
    COVER, REAR FLOOR
  • 22
    J0B-F3447-00-00 CLIP
    CLIP
  • 23
    J0B-F1738-00-00 BOLT
    BOLT
  • 24
    J0B-K8255-01-00 PAD, SILENCER 5
    PAD, SILENCER 5
  • 25
    J0B-F2873-01-00 SEAL 1
    SEAL 1
  • 26
    J0B-F2874-01-00 SEAL 2
    SEAL 2
  • 27
    J0B-F1781-00-00 EMBLEM 1
    EMBLEM 1
  • 28
    JW1-K7741-00-00 INDICATOR 1
    INDICATOR 1
  • 29
    JR1-K8139-00-00 CAP, END
    CAP, END
  • 30
    JN6-H2377-00-00 LABEL
    LABEL
  • 31
    JW1-K8297-02-00 PLATE, CAUTION 1
    PLATE, CAUTION 1
  • 32
    J0B-K817H-10-00 TRIM, SIDE PANEL 1 (WITH SUN ROOF)
    TRIM, SIDE PANEL 1 (WITH SUN ROOF)
  • 32
    J0B-K817H-00-00 TRIM, SIDE PANEL 1 (WITHOUT SUN ROOF)
    TRIM, SIDE PANEL 1 (WITHOUT SUN ROOF)
  • 33
    J0B-K817J-00-00 TRIM, SIDE PANEL 2 (WITHOUT SUN ROOF)
    TRIM, SIDE PANEL 2 (WITHOUT SUN ROOF)
  • 33
    J0B-K817J-10-00 TRIM, SIDE PANEL 2 (WITH SUN ROOF)
    TRIM, SIDE PANEL 2 (WITH SUN ROOF)
