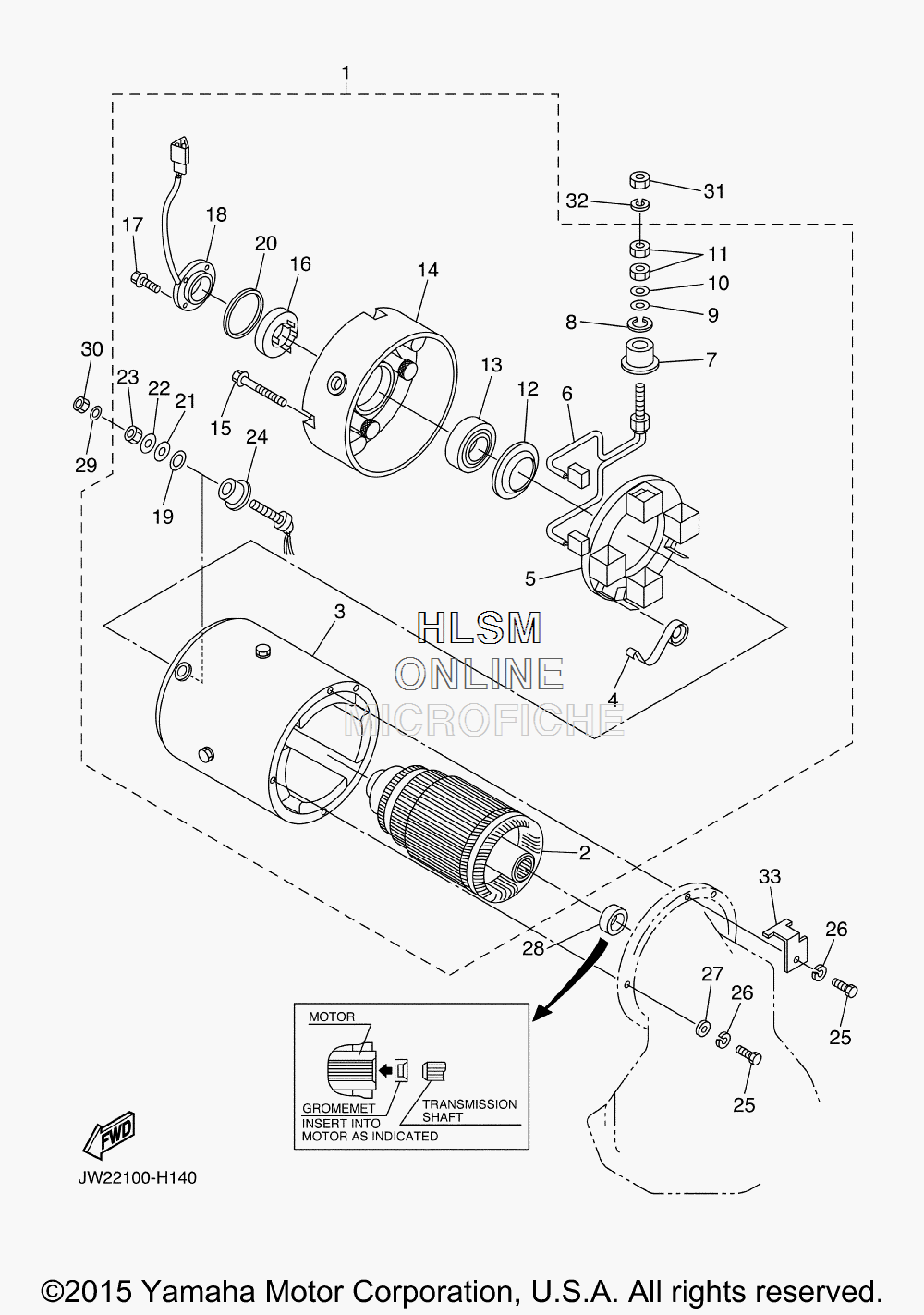

STARTER для Yamaha GOLF CAR ELECTRIC [YDREX5 DFRIVE PTV] (JC17) - 2015 года выпуска
-
№АртикулНазвание
-
1JC1-H1890-00-00 MOTOR ASSYMOTOR ASSY
-
2JU2-H1850-20-00 ...ARMATURE ASSY...ARMATURE ASSY
-
3JU2-H1160-20-00 ...FIELD COIL ASSY...FIELD COIL ASSY
-
4JU2-H1617-20-00 ...SPRING, BRUSH...SPRING, BRUSH
-
5JC1-H1840-00-00 ...BRUSH HOLDER ASSY...BRUSH HOLDER ASSY
-
6JC1-H1801-00-00 ...BRUSH SET...BRUSH SET
-
7JU2-H182G-20-00 ...BUSH, TERMINAL...BUSH, TERMINAL
-
8JU2-H1843-20-00 ...WASHER 1...WASHER 1
-
9JU2-H1824-20-00 ...WASHER 2...WASHER 2
-
10JU2-H181L-20-00 ...WASHER, PLAIN...WASHER, PLAIN
-
11JU2-H182K-20-00 ...NUT...NUT
-
12JU2-H1856-20-00 ...RETAINER...RETAINER
-
13JU2-H185B-20-00 ...BEARING 1...BEARING 1
-
14JU2-H183J-20-00 ...BRACKET, FRONT...BRACKET, FRONT
-
15JU2-H1828-20-00 ...SCREW 2...SCREW 2
-
16JU2-H181K-20-00 ...MAGNET...MAGNET
-
17JU2-H2113-20-00 ...SCREW...SCREW
-
18JU2-H1670-21-00 ...PICK-UP ASSY...PICK-UP ASSY
-
19JU2-H272L-20-00 ...INSULATOR, 1...INSULATOR, 1
-
20JU2-H5722-20-00 ...INSULATOR...INSULATOR
-
21JU2-H2517-20-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
22JU2-H332D-20-00 ...WASHER, SPECIAL 2...WASHER, SPECIAL 2
-
23JU2-H191B-20-00 ...NUT...NUT
-
24JU2-H182H-20-00 ...BUSH, TERMINAL 2...BUSH, TERMINAL 2
-
2590101-069U0-00 BOLTBOLT
-
2690215-06811-00 WASHER, LOCKWASHER, LOCK
-
2790201-068E2-00 WASHER, PLATEWASHER, PLATE
-
28JH7-H1829-00-00 GROMMETGROMMET
-
29JU2-H185A-20-00 WASHER, PLATEWASHER, PLATE
-
30JU2-H182A-20-00 NUTNUT
-
31JU2-H1872-20-00 NUT, SPECIALNUT, SPECIAL
-
32JU2-H1835-20-00 WASHERWASHER
-
33JU2-H218E-01-00 RELIEF, STRAIN 1RELIEF, STRAIN 1
