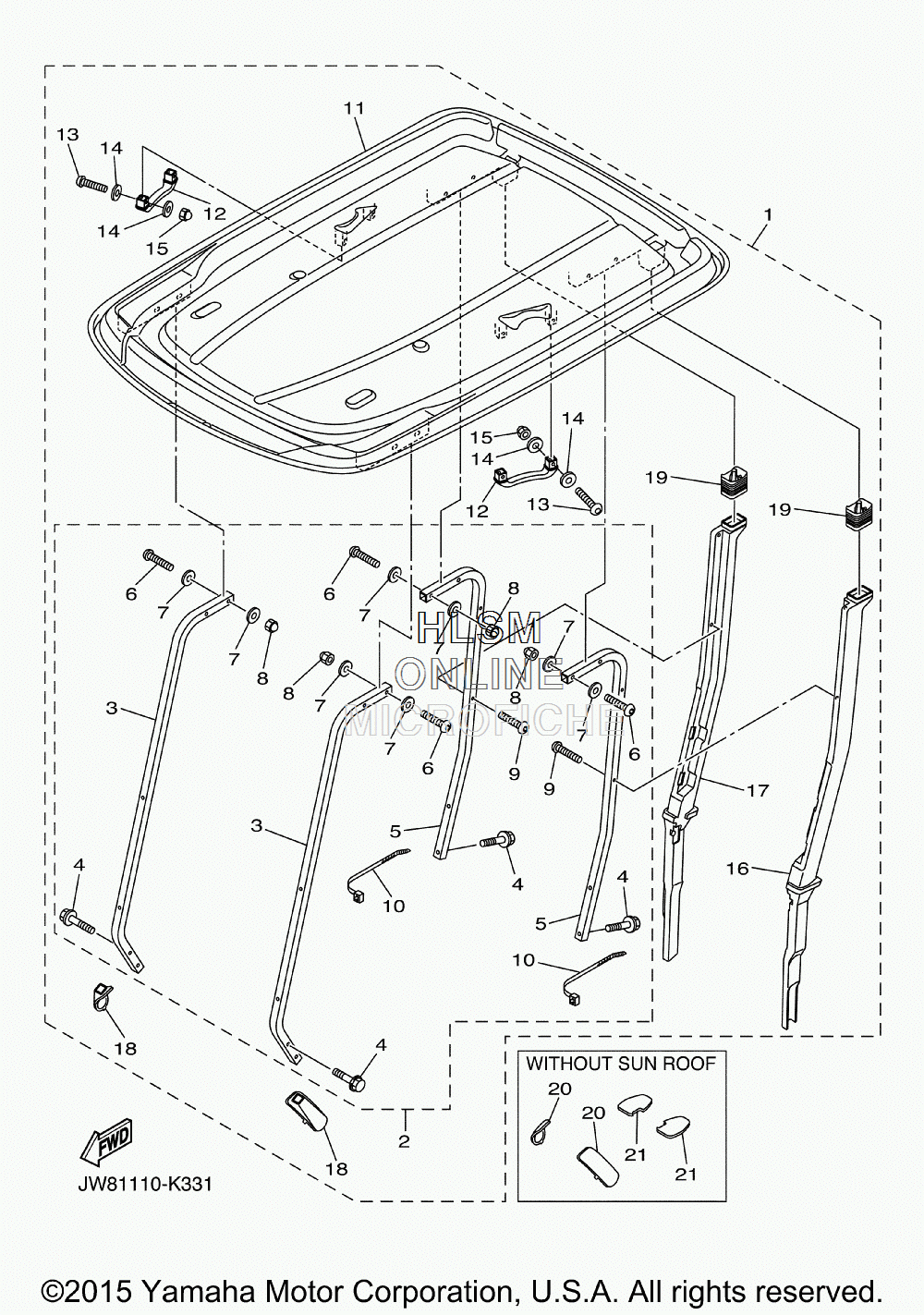

ALTERNATE FOR SUN ROOF для Yamaha GOLF CAR ELECTRIC [YDREX5 DFRIVE PTV] (JC17) - 2015 года выпуска
-
№АртикулНазвание
-
1JW1-K84A0-01-00 SUN TOP KIT (OPT)SUN TOP KIT (OPT)
-
2JW1-K84A2-01-00 ...HARDWARE KIT, SUN TOP...HARDWARE KIT, SUN TOP
-
3JW1-K8312-00-00 ......SUPPORT, SUN ROOF 1......SUPPORT, SUN ROOF 1
-
4JW1-K8388-00-00 ......BOLT, ROOF 1......BOLT, ROOF 1
-
5JW1-K8313-01-00 ......SUPPORT, SUN ROOF 2......SUPPORT, SUN ROOF 2
-
6JU0-K8388-00-00 ......BOLT, ROOF 1......BOLT, ROOF 1
-
7JW1-F1549-01-00 ......WASHER, FENDER MOLD......WASHER, FENDER MOLD
-
8JU0-K8398-00-00 ......NUT, ROOF 1......NUT, ROOF 1
-
9JW1-K7387-00-00 ......SCREW......SCREW
-
1090464-76800-00 ......CLAMP......CLAMP
-
11JW1-K8314-10-00 ...COVER, SUN ROOF...COVER, SUN ROOF
-
12JW1-K8214-00-00 ...GRIP, HAND...GRIP, HAND
-
13JU0-K8388-00-00 ...BOLT, ROOF 1...BOLT, ROOF 1
-
14JW1-F1549-01-00 ...WASHER, FENDER MOLD...WASHER, FENDER MOLD
-
15JU0-K8398-00-00 ...NUT, ROOF 1...NUT, ROOF 1
-
16JW1-F413G-00-00 ...TUBE, DRAIN...TUBE, DRAIN
-
17JW1-F413J-00-00 ...TUBE, DRAIN 2...TUBE, DRAIN 2
-
18JW1-K832F-10-00 ...GROMMET, ROOF SUPPORT 1...GROMMET, ROOF SUPPORT 1
-
19JW1-F414G-10-00 ...SEAL...SEAL
-
20JW1-K832H-00-00 GROMMET, ROOF SUPPORT 3 (OPT)GROMMET, ROOF SUPPORT 3 (OPT)
-
21JW1-K833H-00-00 GROMMET, ROOF SUPPORT 4 (OPT)GROMMET, ROOF SUPPORT 4 (OPT)
