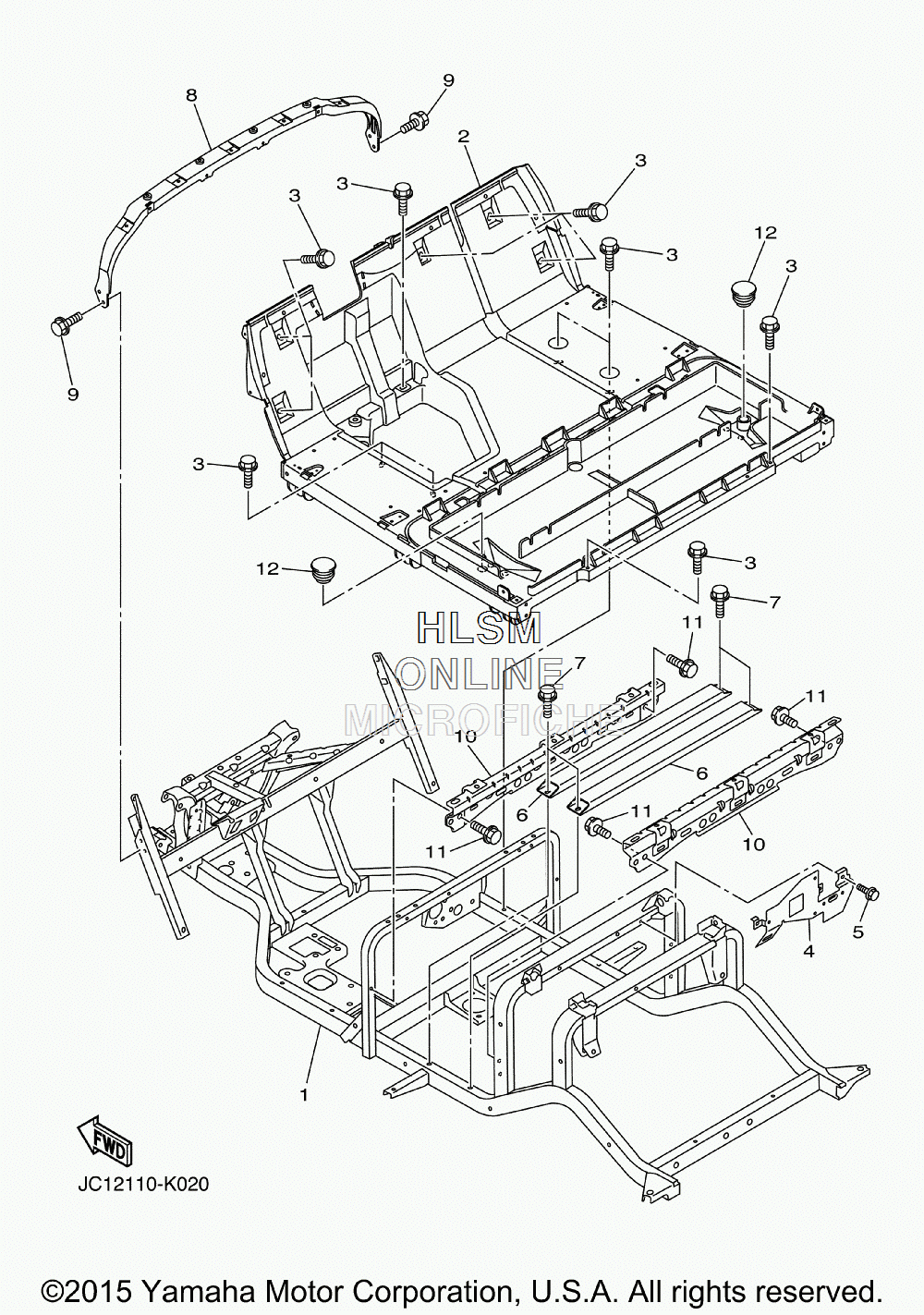

FRAME для Yamaha GOLF CAR ELECTRIC [YDREX5 DFRIVE PTV] (JC17) - 2015 года выпуска
-
№АртикулНазвание
-
1JW8-F2501-01-00 FRAME COMP.FRAME COMP.
-
2JC1-F7411-11-00 FOOTREST 1FOOTREST 1
-
3JW1-F1738-00-00 BOLTBOLT
-
4JW9-F252M-00-00 BRACKET, 3BRACKET, 3
-
590105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
6JW9-F2198-01-00 MEMBER, CROSSMEMBER, CROSS
-
7JW1-F1738-00-00 BOLTBOLT
-
8JW1-F258G-02-00 BRACKET, DASH UPPER 1BRACKET, DASH UPPER 1
-
990105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
10JW9-F2535-00-00 STAY, BATTERY 1STAY, BATTERY 1
-
11JW1-F1738-00-00 BOLTBOLT
-
12JW9-F2417-00-00 PLUGPLUG
