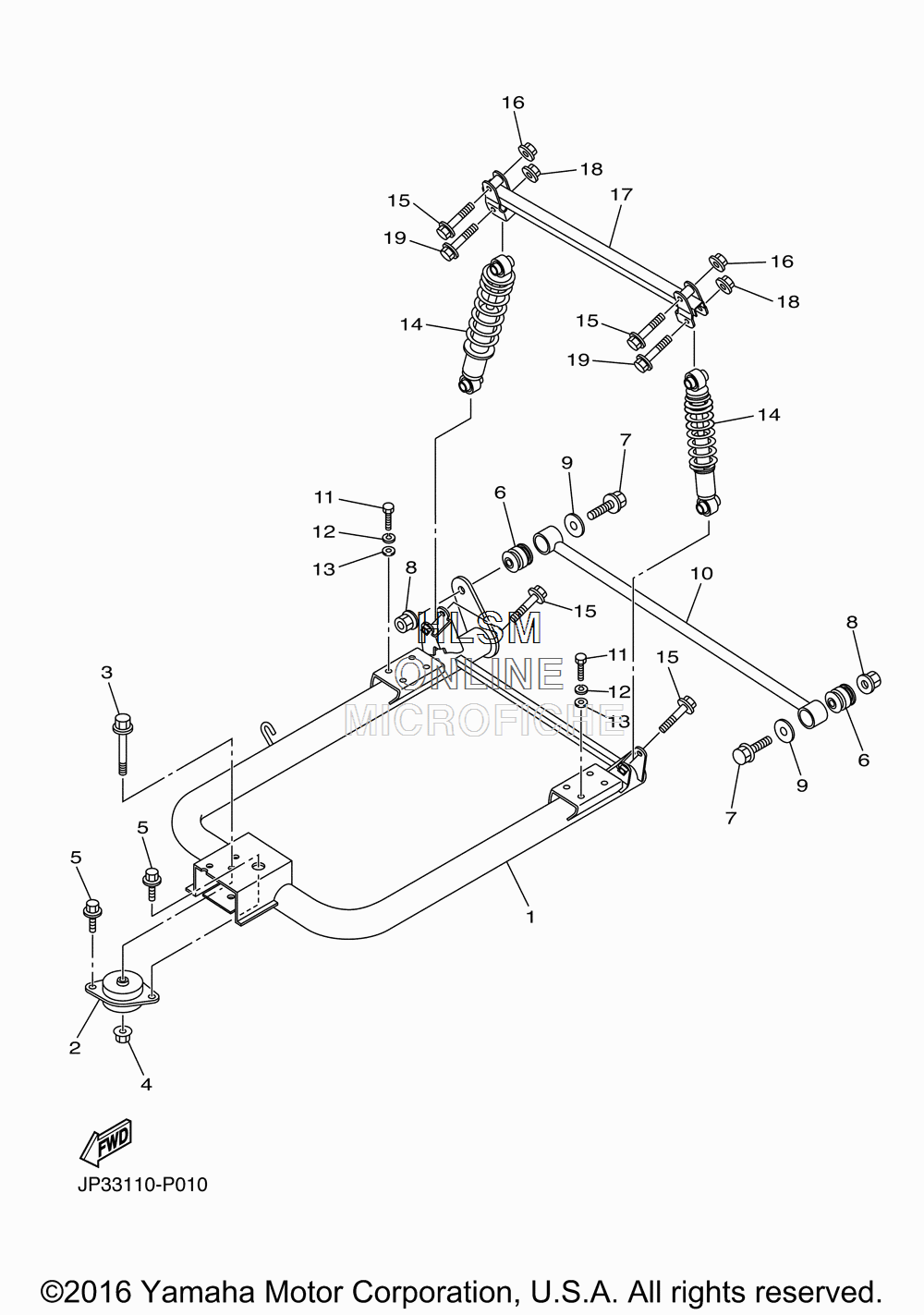

SUSPENSION - SWING ARM для Yamaha ADVENTURER SPORT [YTF1EX5AC] (JP34) - 2015 года выпуска
-
№АртикулНазвание
-
1JW9-F2110-11-00 REAR ARM COMP.REAR ARM COMP.
-
2JN6-F2123-10-00 BUSH 1BUSH 1
-
390105-13800-00 BOLT, FLANGEBOLT, FLANGE
-
490179-13800-00 NUTNUT
-
590119-10044-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
6JN6-F2124-10-00 BUSH 2BUSH 2
-
795812-12065-00 BOLT, FLANGEBOLT, FLANGE
-
895602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
990201-128S4-00 WASHER, PLATEWASHER, PLATE
-
10JW1-F217G-10-00 ROD, CONNECTING 2ROD, CONNECTING 2
-
1197012-10020-00 BOLTBOLT
-
1292902-10100-00 WASHER, SPRINGWASHER, SPRING
-
1392902-10600-00 WASHER, PLATEWASHER, PLATE
-
14JW6-F2210-01-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
1595812-10055-00 BOLT, FLANGEBOLT, FLANGE
-
1695602-10200-00 NUT, U FLANGENUT, U FLANGE
-
17JP0-F2563-00-00 BRACKET, REAR SUSPENSIONBRACKET, REAR SUSPENSION
-
1895602-10200-00 NUT, U FLANGENUT, U FLANGE
-
1995817-10055-00 BOLT, FLANGEBOLT, FLANGE
