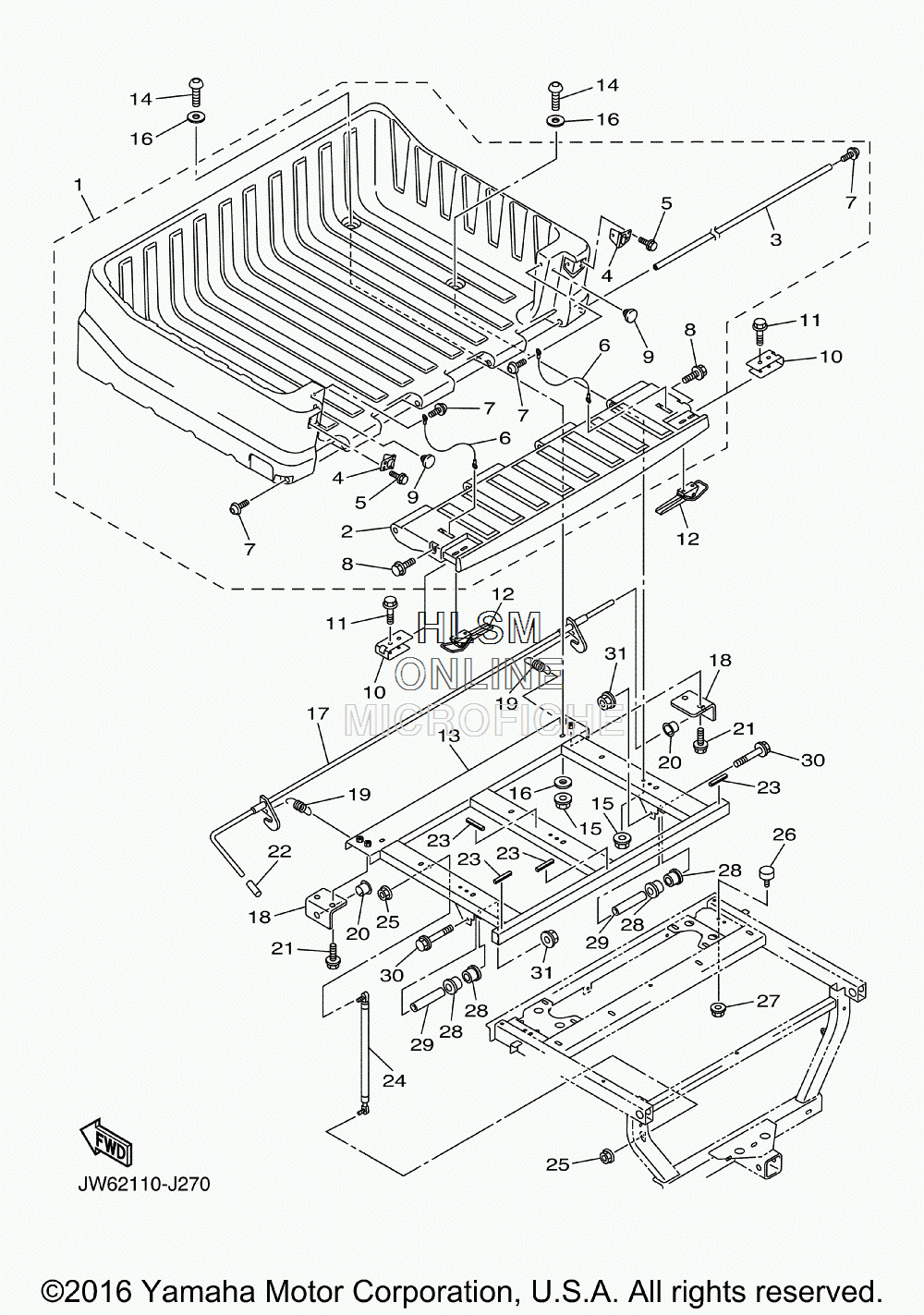

CARRIER для Yamaha ADVENTURER SPORT [YTF1EX5AC] (JP34) - 2015 года выпуска`
-
№АртикулНазвание
-
1JW6-K810M-00-00 REAR STORAGE BOX COMP.REAR STORAGE BOX COMP.
-
2JU9-K819K-00-00 ...SHELL, REAR STORAGE LID...SHELL, REAR STORAGE LID
-
3JU9-K8564-00-00 ...PIN, HINGE...PIN, HINGE
-
4JU9-K7172-00-00 ...BODY, LATCH 2...BODY, LATCH 2
-
590119-06830-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
6JU9-K7195-00-00 ...HOLDER, CABLE...HOLDER, CABLE
-
7JU9-K6179-00-00 ...BOLT, SPECIAL 1...BOLT, SPECIAL 1
-
8JU9-K6189-00-00 ...BOLT, SPECIAL 2...BOLT, SPECIAL 2
-
9JU9-K7739-10-00 ...DAMPER, LID...DAMPER, LID
-
10JU9-K7171-00-00 BODY, LATCH 1BODY, LATCH 1
-
11JU9-K8384-00-00 BOLTBOLT
-
125UG-F389E-00-00 LATCHLATCH
-
13JW6-K818N-00-00 BED, BOXBED, BOX
-
1490111-10800-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1595602-10200-00 NUT, U FLANGENUT, U FLANGE
-
1690201-10830-00 WASHER, PLATEWASHER, PLATE
-
17JW6-K7180-00-00 LATCH ASSYLATCH ASSY
-
18JW6-K7185-00-00 PLATE 1PLATE 1
-
1990506-16451-00 SPRING, TENSIONSPRING, TENSION
-
202P5-K7515-00-00 BUSH, RUBBER 1BUSH, RUBBER 1
-
2195822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
22JJ3-K818M-00-00 CAP, PROTECTOR END 4CAP, PROTECTOR END 4
-
23JW6-K821A-10-00 PAD, BODY MOUNTING1PAD, BODY MOUNTING1
-
245UG-F8415-00-00 DAMPER 1DAMPER 1
-
2595602-08200-00 NUT, U FLANGENUT, U FLANGE
-
26JU5-K8167-11-00 BUMPER, RUBBER 1BUMPER, RUBBER 1
-
2795602-08200-00 NUT, U FLANGENUT, U FLANGE
-
28JW6-F2123-00-00 BUSH 1BUSH 1
-
29JW6-F1633-00-00 COLLAR, 1COLLAR, 1
-
3095812-08070-00 BOLT, FLANGEBOLT, FLANGE
-
3195602-08200-00 NUT, U FLANGENUT, U FLANGE
