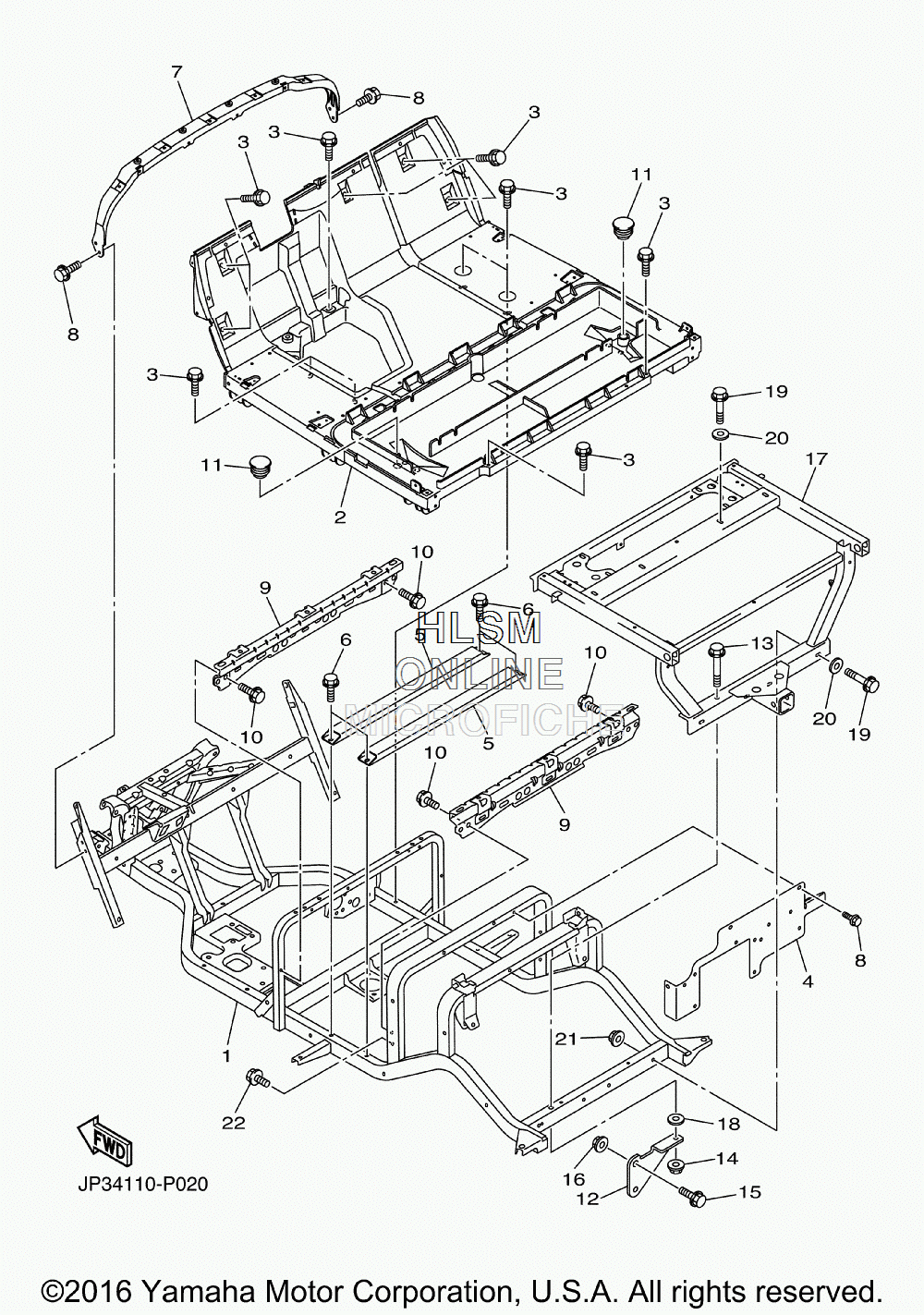

FRAME для Yamaha ADVENTURER SPORT [YTF1EX5AC] (JP34) - 2015 года выпуска
-
№АртикулНазвание
-
1JP3-F2501-01-00 FRAME COMP.FRAME COMP.
-
2JC1-F7411-11-00 FOOTREST 1FOOTREST 1
-
3JW1-F1738-00-00 BOLTBOLT
-
4JP3-F252M-10-00 BRACKET, 3BRACKET, 3
-
5JW9-F2198-01-00 MEMBER, CROSSMEMBER, CROSS
-
6JW1-F1738-00-00 BOLTBOLT
-
7JW1-F258G-02-00 BRACKET, DASH UPPER 1BRACKET, DASH UPPER 1
-
890105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
9JW9-F2535-00-00 STAY, BATTERY 1STAY, BATTERY 1
-
10JW1-F1738-00-00 BOLTBOLT
-
11JW9-F2417-00-00 PLUGPLUG
-
12JP0-F253G-00-00 BRACKET, ROD COMPLETE 2BRACKET, ROD COMPLETE 2
-
1395817-08085-00 BOLT, FLANGEBOLT, FLANGE
-
1490185-08169-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1595812-12030-00 BOLT, FLANGEBOLT, FLANGE
-
1695602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
17JP3-F2504-00-00 RR. SUB-FRAME COMP.RR. SUB-FRAME COMP.
-
1890201-08843-00 WASHER, PLATEWASHER, PLATE
-
1990105-088A7-00 BOLT, FLANGEBOLT, FLANGE
-
2090201-08843-00 WASHER, PLATEWASHER, PLATE
-
2195602-08200-00 NUT, U FLANGENUT, U FLANGE
-
22JW1-F1738-00-00 BOLTBOLT
