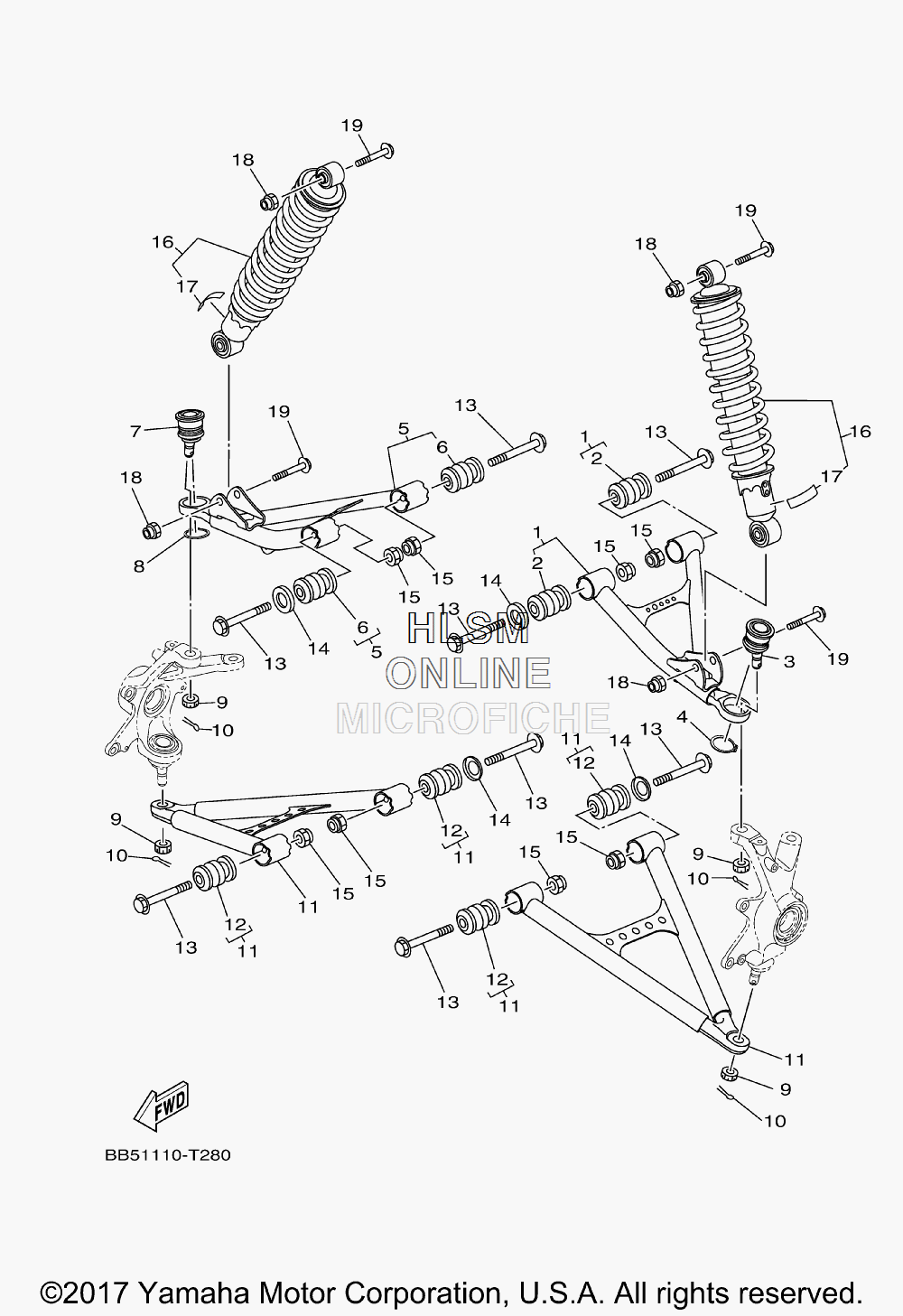

SUSPENSION - FRONT WHEEL для Yamaha KODIAK 450 EPS HUNTER - 2018 года выпуска`
-
№АртикулНазвание
-
1BB5-F3540-00-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
21HP-F3526-00-00 ...BUSH...BUSH
-
33B4-23579-01-00 BALL JOINT 2BALL JOINT 2
-
499009-30400-00 CIRCLIPCIRCLIP
-
5BB5-F3550-00-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
61HP-F3526-00-00 ...BUSH...BUSH
-
73B4-23579-01-00 BALL JOINT 2BALL JOINT 2
-
899009-30400-00 CIRCLIPCIRCLIP
-
990171-12001-00 NUT, CASTLENUT, CASTLE
-
1091402-25020-00 PIN, COTTERPIN, COTTER
-
11BB5-F3570-00-00 FRONT LOWER ARM COMP.FRONT LOWER ARM COMP.
-
121HP-F3526-00-00 ...BUSH...BUSH
-
1395812-10070-00 BOLT, FLANGEBOLT, FLANGE
-
145KM-22149-10-00 WASHERWASHER
-
1590185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
16BB5-F3390-00-00 SHOCK ABSORBER ASSY 2SHOCK ABSORBER ASSY 2
-
17BB5-F2259-00-00 ...LABEL, WARNING...LABEL, WARNING
-
1890185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1990105-10841-00 BOLT, FLANGEBOLT, FLANGE
