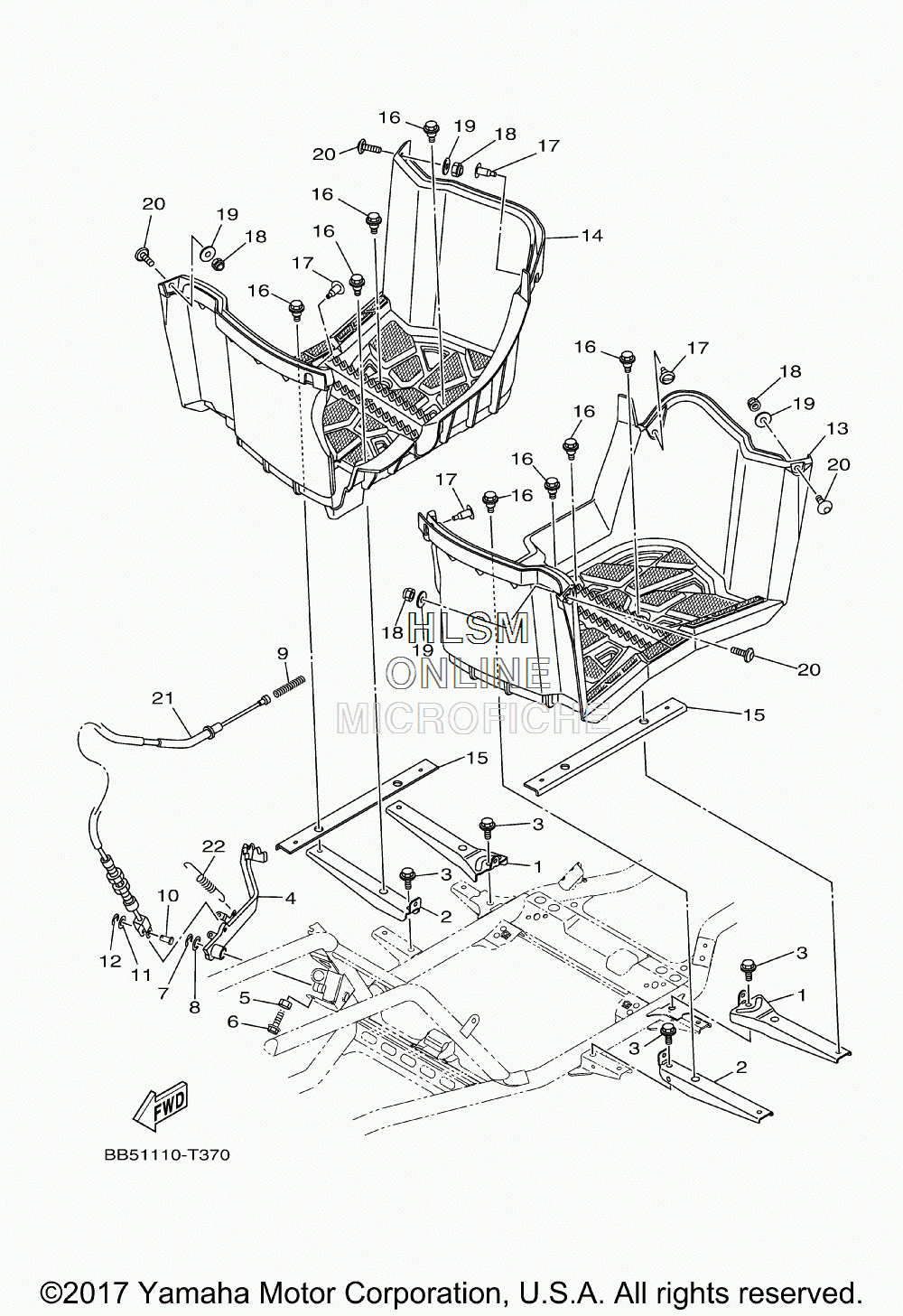

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha KODIAK 450 EPS HUNTER - 2018 года выпуска`
-
№АртикулНазвание
-
1BB5-F7471-00-00 BAR, FOOTREST 1BAR, FOOTREST 1
-
25ND-F7471-01-00 BAR, FOOTREST 1BAR, FOOTREST 1
-
395812-08012-00 BOLT, FLANGEBOLT, FLANGE
-
41CT-F7211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
595312-06700-00 NUTNUT
-
695812-06020-00 BOLT, FLANGEBOLT, FLANGE
-
793430-10015-00 CIRCLIPCIRCLIP
-
890201-14023-00 WASHER, PLATEWASHER, PLATE
-
990501-10782-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1090240-06076-00 PIN, CLEVISPIN, CLEVIS
-
1192902-06200-00 WASHERWASHER
-
1291401-20012-00 PIN, COTTERPIN, COTTER
-
13BB5-F7453-00-00 COVER 1COVER 1
-
14BB5-F7463-00-00 COVER 2COVER 2
-
155ND-F7445-00-00 PLATE 1PLATE 1
-
1690109-06840-00 BOLTBOLT
-
1790269-06804-00 RIVETRIVET
-
1895702-06300-00 NUT, NYLONNUT, NYLON
-
1990201-06078-00 WASHER, PLATEWASHER, PLATE
-
2090111-06051-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
21BB5-F6361-00-00 CABLE, BRAKECABLE, BRAKE
-
2290506-20010-00 SPRING, TENSIONSPRING, TENSION
