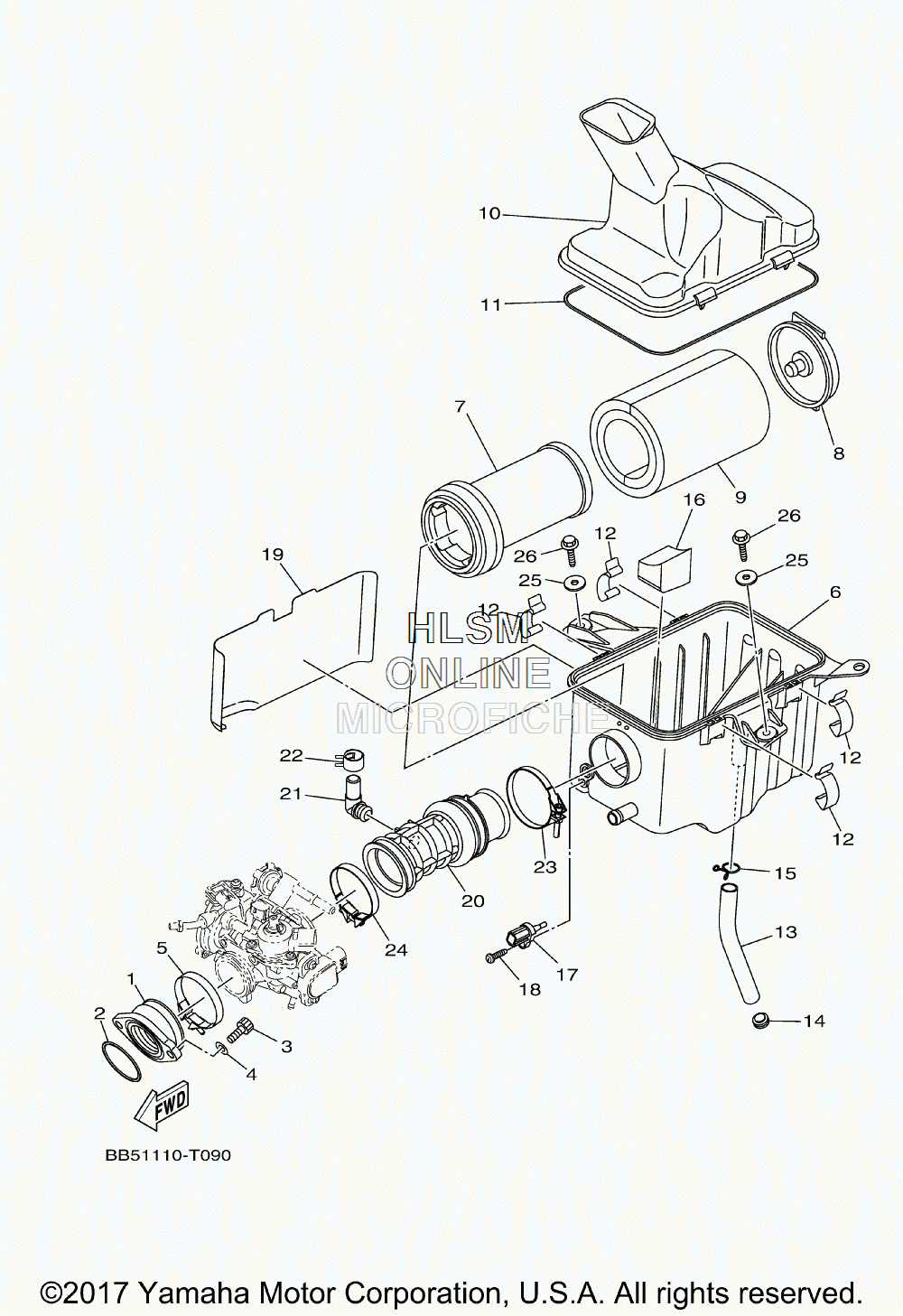

AIR CLEANER W/ INTAKE для Yamaha KODIAK 450 EPS HUNTER - 2018 года выпуска`
-
№АртикулНазвание
-
1BB5-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
293210-44545-00 O-RINGO-RING
-
391312-08020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
490201-08070-00 WASHER, PLATEWASHER, PLATE
-
590450-54009-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
6BB5-E4411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
75UH-E4458-00-00 GUIDEGUIDE
-
85UH-E4468-00-00 PLATE,ELEMENT FITTINGPLATE,ELEMENT FITTING
-
91NS-E4451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
10BB5-E4412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
11BB5-E4462-01-00 SEALSEAL
-
123B4-14424-00-00 CLIP, CAP FITTINGCLIP, CAP FITTING
-
135UH-E4769-10-00 PIPE, DRAINPIPE, DRAIN
-
145UH-E4191-00-00 PLUG, DRAINPLUG, DRAIN
-
155UH-E4438-00-00 CLIP, DRAIN CLEANERCLIP, DRAIN CLEANER
-
16BB5-E4461-00-00 ELEMENT, AIR CLEANER 2ELEMENT, AIR CLEANER 2
-
178FP-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
1897702-50520-00 SCREW, TAPPINGSCREW, TAPPING
-
195ND-E442F-00-00 PROTECTORPROTECTOR
-
20BB5-E4453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
215TJ-14419-00-00 PIPEPIPE
-
2290467-150A1-00 CLIPCLIP
-
2390450-58002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2490450-54009-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2590201-06036-00 WASHER, PLATEWASHER, PLATE
-
2690105-06833-00 BOLT, FLANGEBOLT, FLANGE
