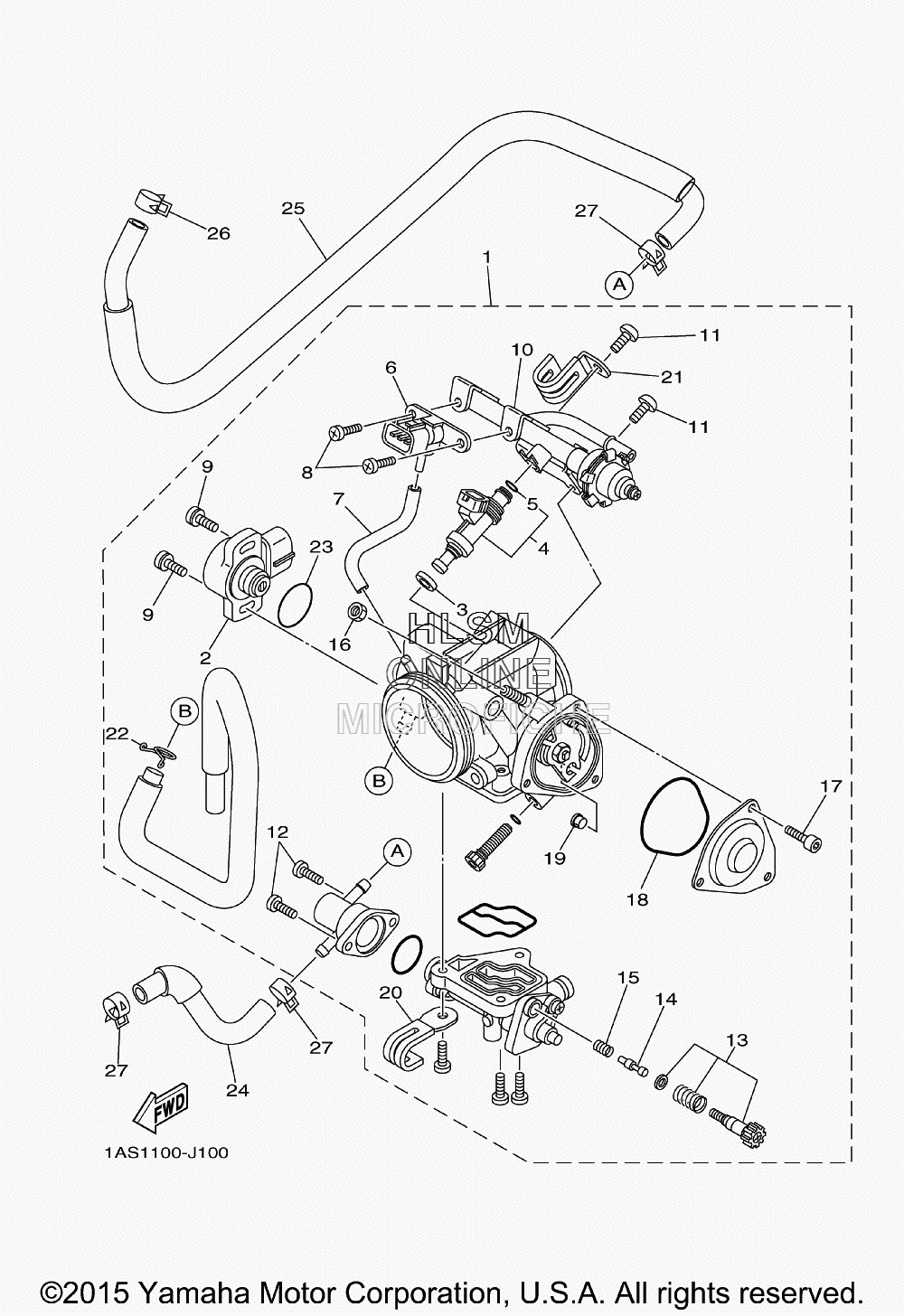

THROTTLE BODY ASSY. для Yamaha RAPTOR 700 - 2016 года выпуска`
-
№АртикулНазвание
-
11S3-13750-10-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
28GL-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
38FP-13556-00-00 ...RUBBER, INJECTOR...RUBBER, INJECTOR
-
45VK-13761-00-00 ...INJECTOR...INJECTOR
-
55PS-14147-00-00 ......O-RING......O-RING
-
61C7-82380-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
75JW-14348-00-00 ...PIPE 1...PIPE 1
-
898507-06010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
98CC-14216-10-00 ...SCREW...SCREW
-
101S3-13160-00-00 ...DELIVERY PIPE ASSY 1...DELIVERY PIPE ASSY 1
-
1198507-06012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1298507-05012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
135VX-14503-00-00 ...ADJUST SCREW SET...ADJUST SCREW SET
-
141S3-13493-00-00 ...PLUNGER...PLUNGER
-
154BH-14134-00-00 ...SPRING, AIR ADJUSTING...SPRING, AIR ADJUSTING
-
161S3-14161-00-00 ...NUT, CABLE ADJUSTING...NUT, CABLE ADJUSTING
-
1791312-04006-00 ...BOLT...BOLT
-
184WV-14147-10-00 ...O-RING...O-RING
-
191UY-14155-00-00 ...GUIDE, CABLE...GUIDE, CABLE
-
203JC-14146-00-00 ...PLATE...PLATE
-
215JW-14945-00-00 ...PLATE...PLATE
-
2290467-09006-00 ...CLIP...CLIP
-
235YP-14562-00-00 ...O-RING...O-RING
-
241PE-E243A-00-00 HOSE 1HOSE 1
-
251PE-E243E-00-00 HOSE 2HOSE 2
-
2690467-11090-00 CLIPCLIP
-
2790467-11090-00 CLIPCLIP
