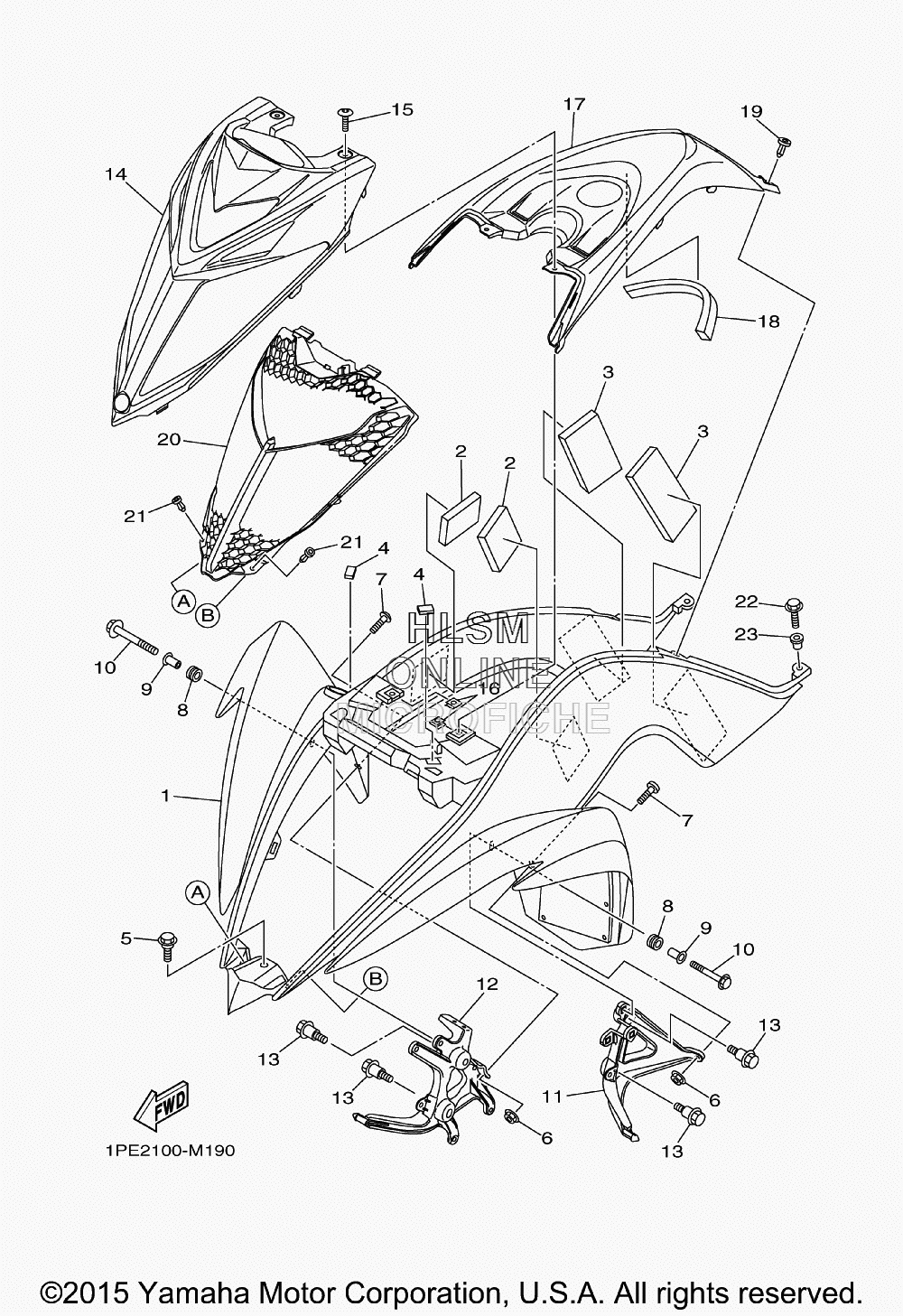

FENDER - FRONT для Yamaha RAPTOR 700 - 2016 года выпуска
-
№АртикулНазвание
-
11PE-F1500-10-00 FRONT FENDER ASSYFRONT FENDER ASSY
-
21S3-21541-00-00 DAMPER 1DAMPER 1
-
33Y0-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
43B4-21541-00-00 DAMPER 1DAMPER 1
-
590109-06172-00 BOLTBOLT
-
695602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
790111-06137-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
890480-14102-00 GROMMETGROMMET
-
990387-06136-00 COLLARCOLLAR
-
1095812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
111PE-F1513-00-00 STAY, FENDER 1STAY, FENDER 1
-
121PE-F1514-00-00 STAY, FENDER 2STAY, FENDER 2
-
1390109-06214-00 BOLTBOLT
-
141PE-F3391-30-00 PANEL, FRONTPANEL, FRONT
-
1590111-06814-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1690183-06053-00 NUT, SPRINGNUT, SPRING
-
171PE-F171A-30-00 COVER, TOPCOVER, TOP
-
1890520-20001-00 DAMPER, PLATEDAMPER, PLATE
-
1990269-06002-00 RIVETRIVET
-
201PE-E2467-00-00 COVER, RADIATORCOVER, RADIATOR
-
2190269-06002-00 RIVETRIVET
-
2290105-06084-00 BOLT, FLANGEBOLT, FLANGE
-
2390387-06146-00 COLLARCOLLAR
Все узлы модели:
- AIR CLEANER W/ INTAKE
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- CAMSHAFT W/ CHAIN
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER
- CYLINDER HEAD
- DECALS
- ELECTRICAL
- EMBLEMS
- EXHAUST
- • FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BRAKE PEDAL
- FRAME
- FUEL TANK
- GENERATOR
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT
- MODEL INFO - MANUALS
- OIL PUMP
- OIL TANK
- RACK AND BUMPER
- RADIATOR ASSY
- SEAT
- SHIFT CAM W/ FORK
- STARTER - RECOIL
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT WHEEL
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TAILLIGHT
- THROTTLE BODY ASSY.
- TRANSMISSION
- VALVE ASSY
- WATER PUMP ASSY
- WHEEL - FRONT W/ AXLE ASSY
- WHEEL - REAR W/ AXLE ASSY
