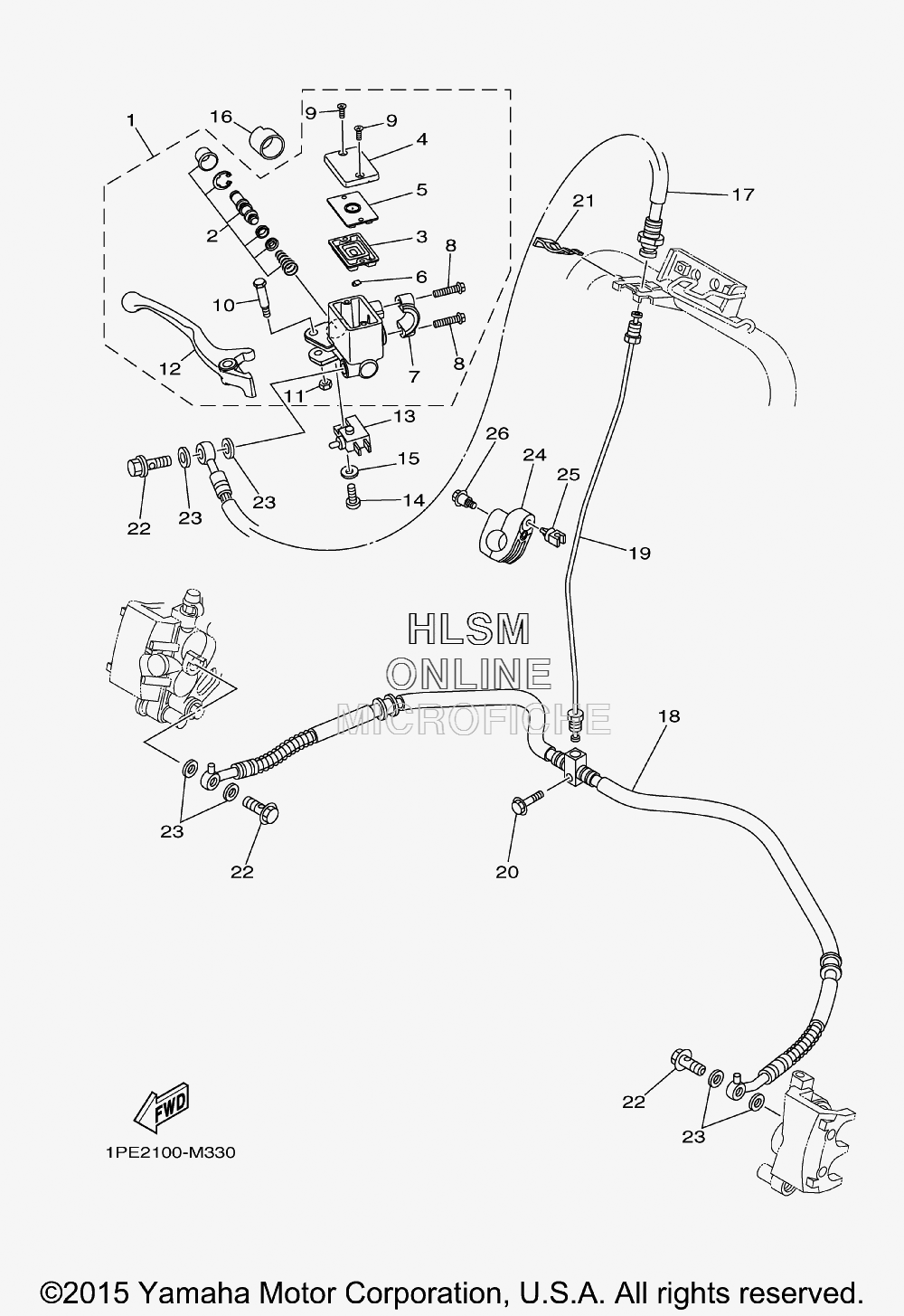

BRAKE - FRONT MASTER CYLINDER для Yamaha RAPTOR 700 - 2016 года выпуска`
-
№АртикулНазвание
-
11PE-2583T-00-00 MASTER CYLINDER ASSYMASTER CYLINDER ASSY
-
21PE-25807-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
31HP-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
41HP-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
51HP-2585B-00-00 ...PLATE, DIAPHRAGM...PLATE, DIAPHRAGM
-
61HP-25889-00-00 ...SEPARATOR...SEPARATOR
-
71HP-25867-00-00 ...BRACKET, MASTER CYLINDER...BRACKET, MASTER CYLINDER
-
81HP-26332-00-00 ...BOLT...BOLT
-
998780-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
101HP-2589F-10-00 ...BOLT, LEVER...BOLT, LEVER
-
1195702-06500-00 ...NUT, FLANGE...NUT, FLANGE
-
121PE-83922-00-00 ...LEVER 2...LEVER 2
-
131HP-83980-01-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
1498502-04012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1592902-04600-00 WASHER, PLATEWASHER, PLATE
-
161UY-26259-00-00 COLLARCOLLAR
-
171PE-F5872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
185TG-25873-20-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
191PE-F5871-00-00 PIPE, BRAKEPIPE, BRAKE
-
2095822-06025-00 BOLT, FLANGEBOLT, FLANGE
-
212GU-25866-00-00 CIRCLIPCIRCLIP
-
2290401-10015-00 BOLT, UNIONBOLT, UNION
-
2390201-10118-00 WASHER, PLATEWASHER, PLATE
-
241AS-25522-00-00 HOLDERHOLDER
-
255KM-81677-00-00 CLAMP 1CLAMP 1
-
2690109-06241-00 BOLTBOLT
