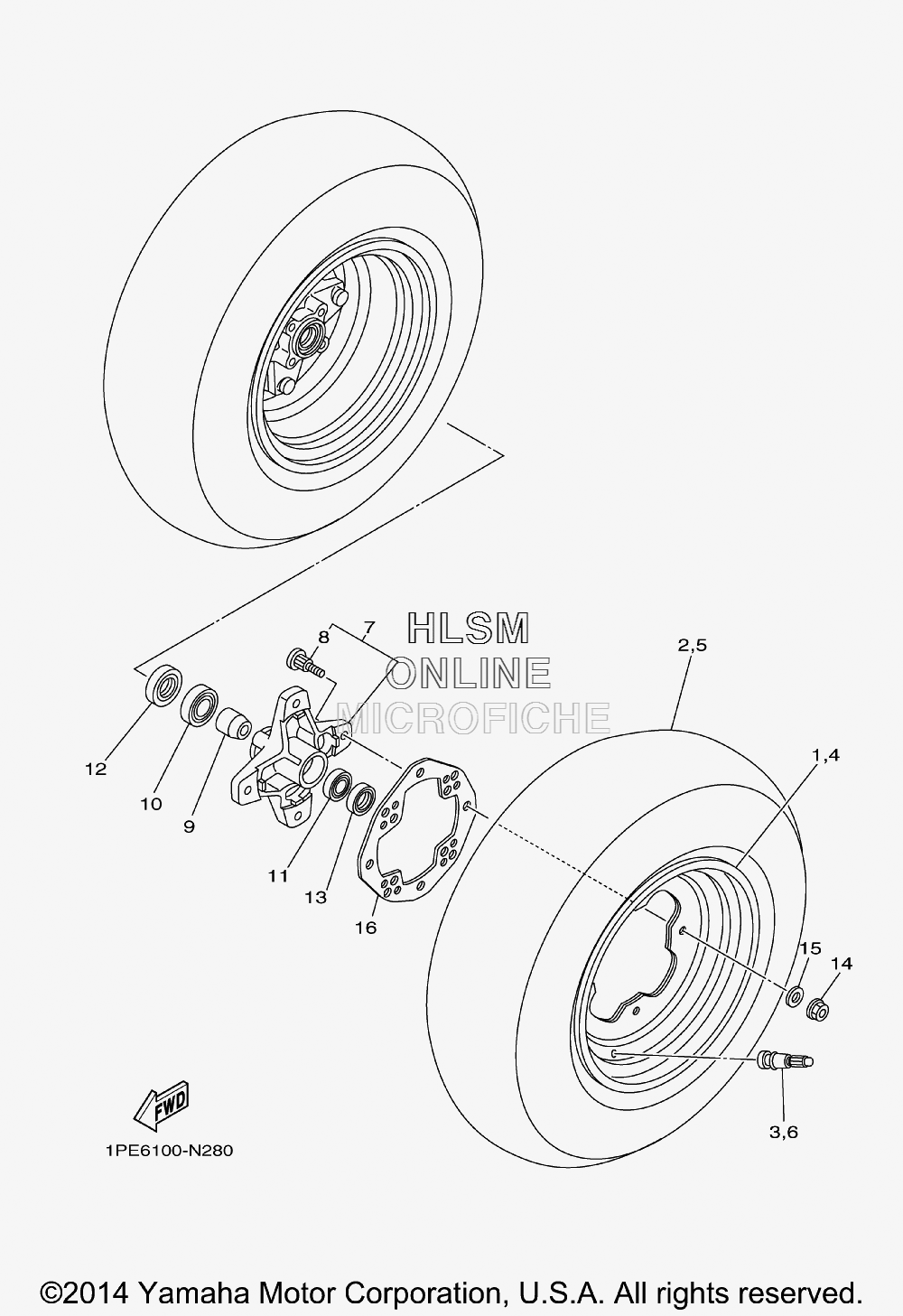

WHEEL - FRONT W/ AXLE ASSY для Yamaha RAPTOR 700R SE - 2015 года выпуска`
-
№АртикулНазвание
-
11TD-F5180-10-00 WHEEL COMP. (FOR YB - YAMAHA BLACK)WHEEL COMP. (FOR YB - YAMAHA BLACK)
-
11TD-F5180-20-00 WHEEL COMP. (FOR DPBSE - PURPLISH BLUE)WHEEL COMP. (FOR DPBSE - PURPLISH BLUE)
-
294107-10803-00 TIRE (AT22X7-10 MS13 TL)TIRE (AT22X7-10 MS13 TL)
-
393900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
41TD-F5180-10-00 WHEEL COMP. (FOR YB - YAMAHA BLACK)WHEEL COMP. (FOR YB - YAMAHA BLACK)
-
41TD-F5180-20-00 WHEEL COMP. (FOR DPBSE - PURPLISH BLUE)WHEEL COMP. (FOR DPBSE - PURPLISH BLUE)
-
594107-10803-00 TIRE (AT22X7-10 MS13 TL)TIRE (AT22X7-10 MS13 TL)
-
693900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
71PE-F510D-00-00 HUB ASSY 2HUB ASSY 2
-
890114-10006-00 ...BOLT, SERRATION...BOLT, SERRATION
-
95LP-25117-00-00 SPACER, BEARINGSPACER, BEARING
-
1093306-00446-00 BEARINGBEARING
-
1193306-20231-00 BEARINGBEARING
-
1293105-26026-00 OIL SEALOIL SEAL
-
1393102-22216-00 OIL SEALOIL SEAL
-
1495702-10500-00 NUT, FLANGENUT, FLANGE
-
1592902-10200-00 WASHERWASHER
-
161S3-25127-01-00 COVER, PLATECOVER, PLATE
