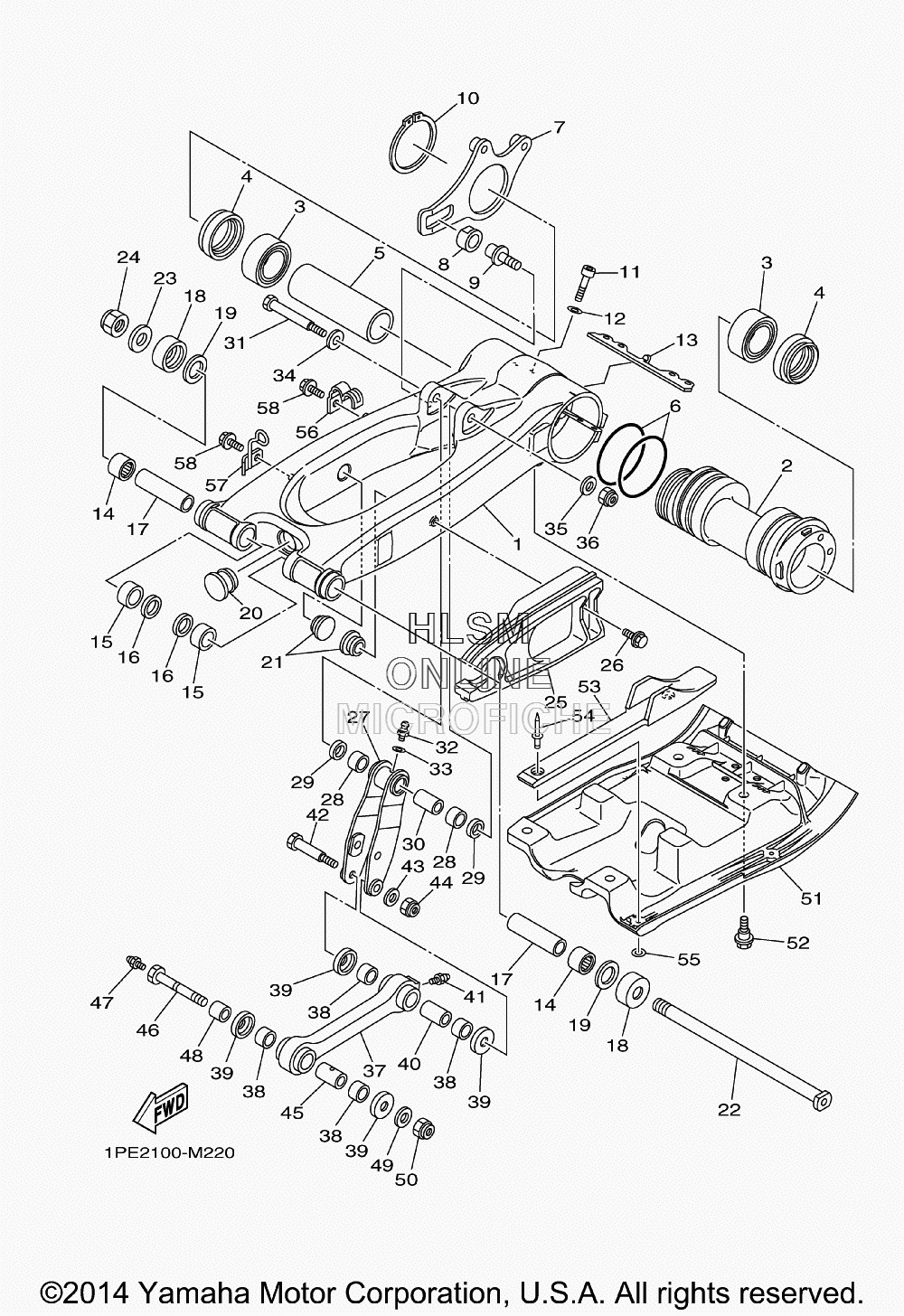

SUSPENSION - REAR ARM для Yamaha RAPTOR 700R SE - 2015 года выпуска`
-
№АртикулНазвание
-
11S3-22110-00-00 REAR ARM COMP.REAR ARM COMP.
-
21PE-25311-00-00 HUB, REARHUB, REAR
-
393304-20812-00 BEARINGBEARING
-
493106-46003-00 OIL SEALOIL SEAL
-
51PE-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
61S3-23147-01-00 O-RINGO-RING
-
71PE-25721-00-00 BRACKET, CALIPERBRACKET, CALIPER
-
890387-16014-00 COLLARCOLLAR
-
990110-12001-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1093410-67085-00 CIRCLIPCIRCLIP
-
1191314-08040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1292903-08600-00 WASHER, PLATEWASHER, PLATE
-
131S3-22475-00-00 SEAL, DUSTSEAL, DUST
-
1493317-22237-00 BEARINGBEARING
-
1590380-22111-00 BUSH, SOLIDBUSH, SOLID
-
1693106-22019-00 OIL SEAL (DC 22-28-8)OIL SEAL (DC 22-28-8)
-
171S3-22184-00-00 BUSHBUSH
-
184X7-22129-00-00 COVER, THRUST 2COVER, THRUST 2
-
193YF-22149-00-00 WASHERWASHER
-
201S3-22417-00-00 PLUGPLUG
-
2190338-23004-00 PLUGPLUG
-
221S3-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
2390201-16018-00 WASHER, PLATEWASHER, PLATE
-
2490185-16002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
251S3-22151-00-00 SEAL, GUARDSEAL, GUARD
-
2690109-06172-00 BOLTBOLT
-
271PE-F217A-00-00 ARM, RELAYARM, RELAY
-
2890383-20032-00 BUSH, FORMEDBUSH, FORMED
-
2993109-20076-00 OIL SEALOIL SEAL
-
3090387-12021-00 COLLARCOLLAR
-
3190109-10018-00 BOLTBOLT
-
3293700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
3390201-063F3-00 WASHER, PLATEWASHER, PLATE
-
3490201-12030-00 WASHER, PLATEWASHER, PLATE
-
3590201-10034-00 WASHER, PLATEWASHER, PLATE
-
3690185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
371PE-F217F-00-00 ROD, CONNECTING 1ROD, CONNECTING 1
-
3890383-20032-00 BUSH, FORMEDBUSH, FORMED
-
395YT-22129-00-00 COVER, THRUST 2COVER, THRUST 2
-
4090387-12010-00 COLLARCOLLAR
-
4193700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
4290109-10020-00 BOLTBOLT
-
4390201-10035-00 WASHER, PLATEWASHER, PLATE
-
4490185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4590387-12010-00 COLLARCOLLAR
-
4690109-12009-00 BOLTBOLT
-
4793700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
4890387-12028-00 COLLARCOLLAR
-
4990201-12032-00 WASHER, PLATEWASHER, PLATE
-
5090185-12007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
511PE-F219X-00-00 COVERCOVER
-
5290109-06199-00 BOLTBOLT
-
531S3-22153-00-00 GUARD, CHAINGUARD, CHAIN
-
5490267-47187-00 RIVET, BLIND (4.7X16.4 BLACK)RIVET, BLIND (4.7X16.4 BLACK)
-
5590201-04027-00 WASHER, PLATEWASHER, PLATE
-
561S3-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
571S3-23317-00-00 HOLDER, CABLEHOLDER, CABLE
-
5895022-06012-00 BOLT, FLANGEBOLT, FLANGE
