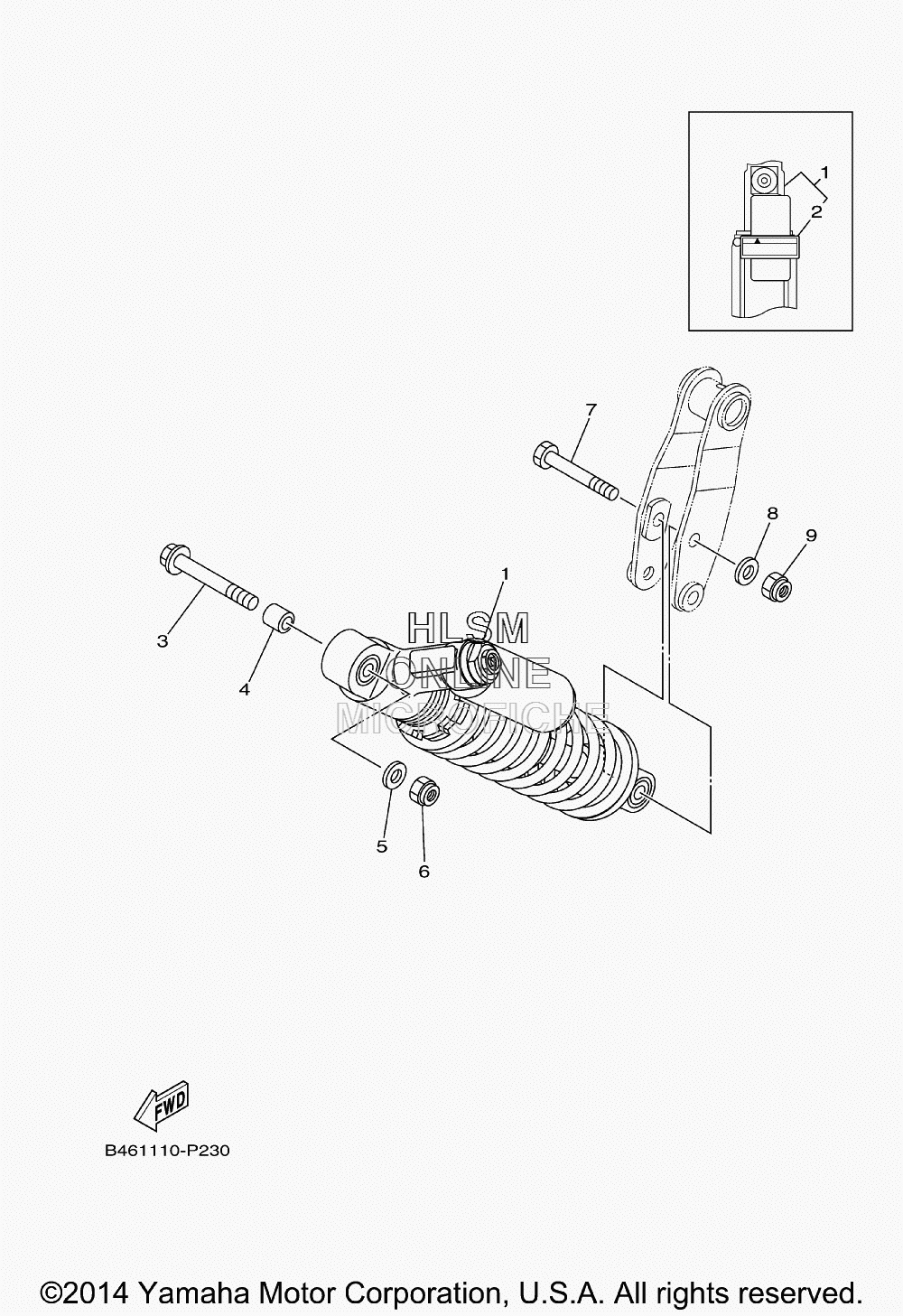

SUSPENSION - REAR SHOCK ABSORBER для Yamaha RAPTOR 700R SE - 2015 года выпуска`
-
№АртикулНазвание
-
1B46-F2200-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
21HP-F2259-01-00 ...LABEL, WARNING...LABEL, WARNING
-
390105-12038-00 BOLT, FLANGEBOLT, FLANGE
-
490387-12028-00 COLLARCOLLAR
-
590201-12032-00 WASHER, PLATEWASHER, PLATE
-
690185-12007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
790109-10019-00 BOLTBOLT
-
890201-10036-00 WASHER, PLATEWASHER, PLATE
-
990185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
