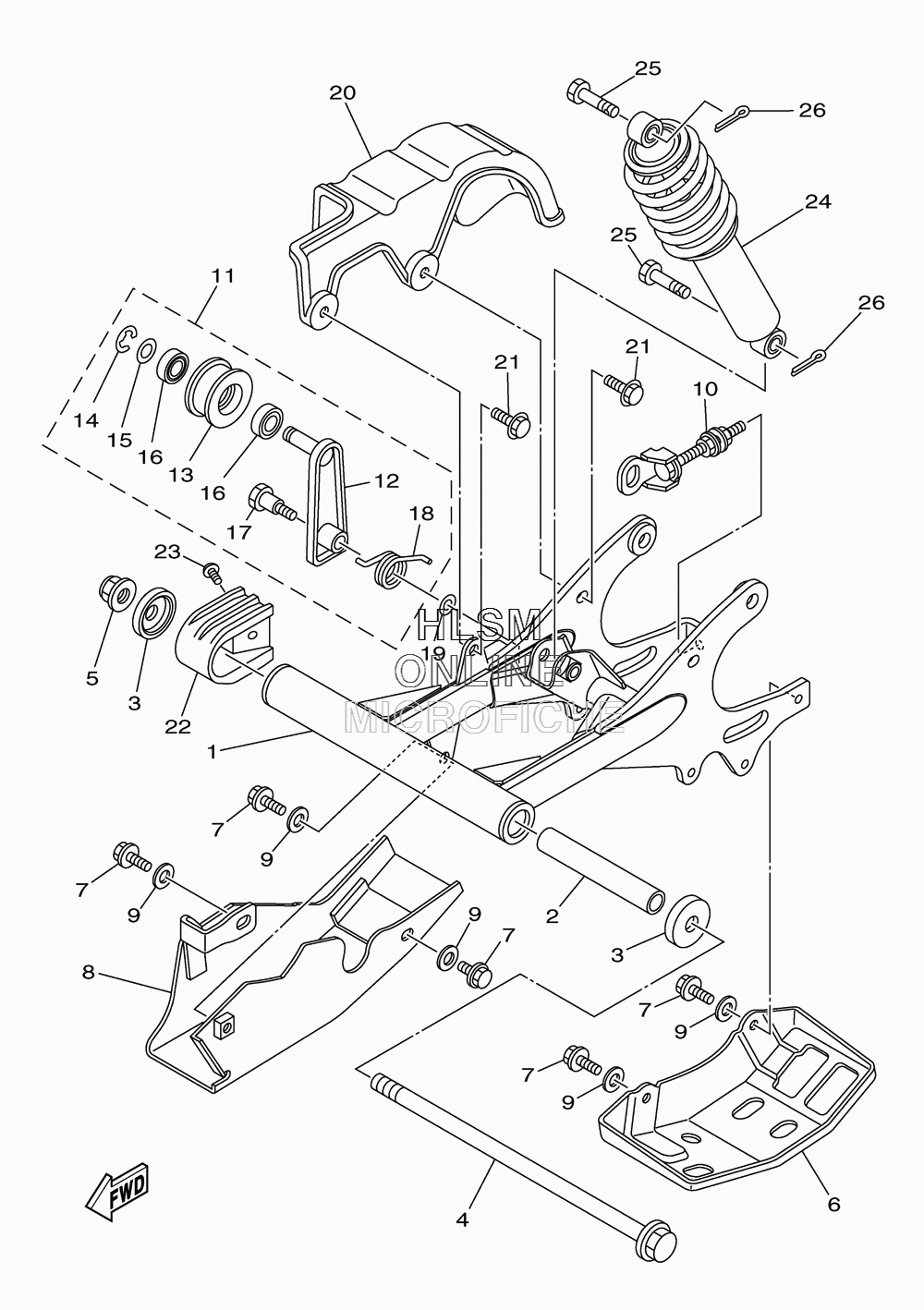

SUSPENSION - REAR ARM для Yamaha RAPTOR 90 - 2013 года выпуска`
-
№АртикулНазвание
-
143D-F2100-00-00 REAR ARM ASSYREAR ARM ASSY
-
243D-F2126-00-00 COLLAR, DISTANCECOLLAR, DISTANCE
-
343D-F2128-00-00 COVER, THRUST 1COVER, THRUST 1
-
443D-F1722-00-00 BOLT 2BOLT 2
-
543D-F1535-00-00 NUT 1NUT 1
-
643D-F2361-00-00 GUARD 1GUARD 1
-
743D-F2334-00-00 BOLT, CHAIH CASE 2BOLT, CHAIH CASE 2
-
843D-F2362-00-00 GUARD 2GUARD 2
-
943D-E2289-00-00 WASHERWASHER
-
1043D-F5388-00-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
1143D-F210L-00-00 CHAIN TENSIONER ASSYCHAIN TENSIONER ASSY
-
1243D-F2183-00-00 ...BRACKET, TENSIONER...BRACKET, TENSIONER
-
1343D-F2178-00-00 ...TENSIONER...TENSIONER
-
1499002-10600-00 ...CLIP...CLIP
-
1543D-F3456-00-00 ...WASHER...WASHER
-
1643D-F2176-00-00 ...BEARING...BEARING
-
1743D-F4391-00-00 ...BOLT, STUD...BOLT, STUD
-
1843D-F2169-00-00 ...SPRING, TENSIONER...SPRING, TENSIONER
-
1943D-F3427-00-00 WASHERWASHER
-
2043D-F2312-00-00 CASE, CHAIN 2CASE, CHAIN 2
-
2195827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
2243D-F2151-10-00 SEAL, GUARDSEAL, GUARD
-
2343D-F3394-00-00 BOLT, SPECIALBOLT, SPECIAL
-
2443D-F2210-00-00 SHOCK ABSORBER ASSY, REAR (FOR DPBSE - PURPLISH BLUE)SHOCK ABSORBER ASSY, REAR (FOR DPBSE - PURPLISH BLUE)
-
2443D-F2210-10-00 SHOCK ABSORBER ASSY, REAR (FOR BWS1 - BLUISH WHITE)SHOCK ABSORBER ASSY, REAR (FOR BWS1 - BLUISH WHITE)
-
2597027-10040-00 BOLT, HEXAGONBOLT, HEXAGON
-
2691401-25020-00 PIN, COTTERPIN, COTTER
