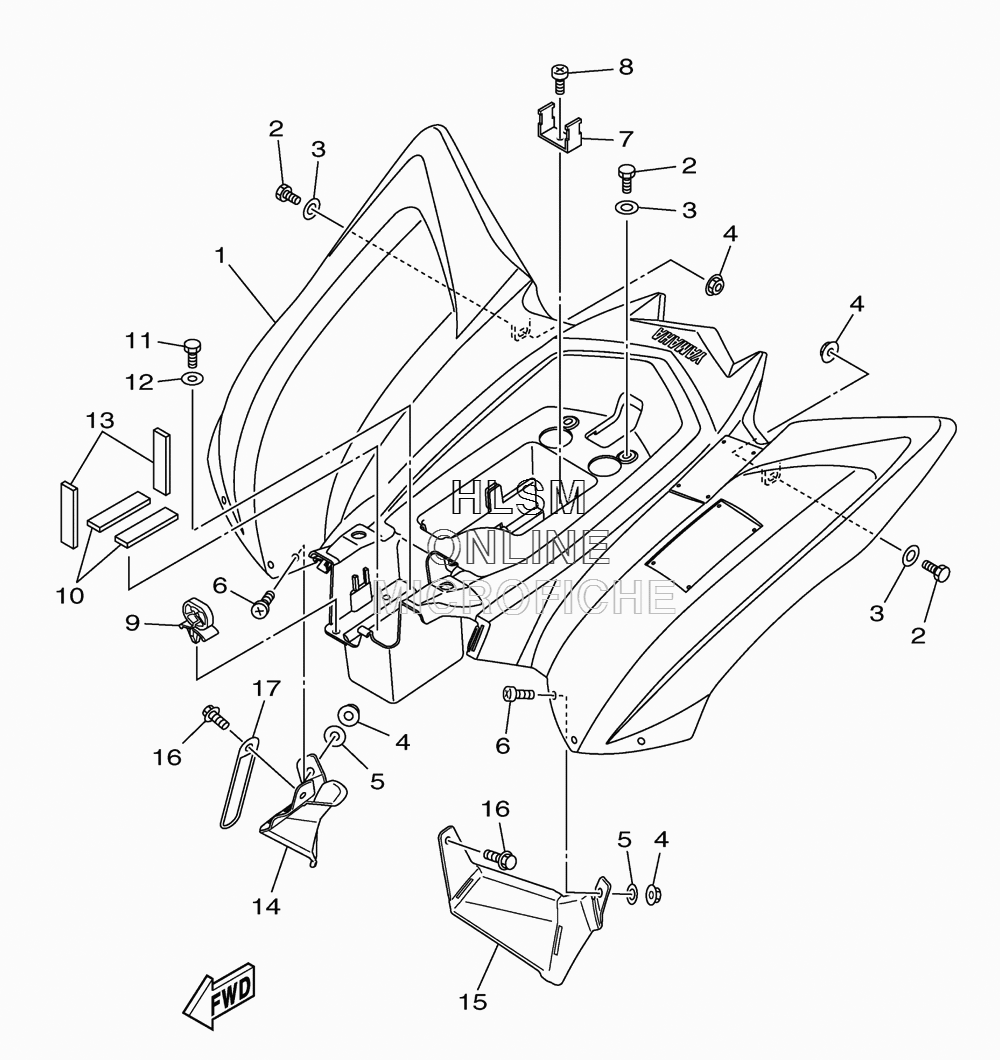

FENDER - REAR для Yamaha RAPTOR 90 - 2013 года выпуска
-
№АртикулНазвание
-
143D-F1600-10-00 REAR FENDER ASSY.REAR FENDER ASSY.
-
297007-06020-00 BOLTBOLT
-
392907-06600-00 WASHER, PLATEWASHER, PLATE
-
443D-F1536-00-00 NUT 2NUT 2
-
543D-F2246-00-00 WASHER 4WASHER 4
-
643D-F4444-00-00 SCREWSCREW
-
743D-F164F-00-00 STAY 1STAY 1
-
843D-E4565-00-00 SCREWSCREW
-
943D-F3447-00-00 CLIPCLIP
-
1043D-F1639-00-00 DAMPER 2DAMPER 2
-
1197007-06020-00 BOLTBOLT
-
1292907-06600-00 WASHER, PLATEWASHER, PLATE
-
1343D-F1649-00-00 DAMPERDAMPER
-
1443D-F1721-00-00 COVER, SIDE 2COVER, SIDE 2
-
1543D-F1711-00-00 COVER, SIDE 1COVER, SIDE 1
-
1695827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1743D-E262K-00-00 CLAMP 1CLAMP 1
