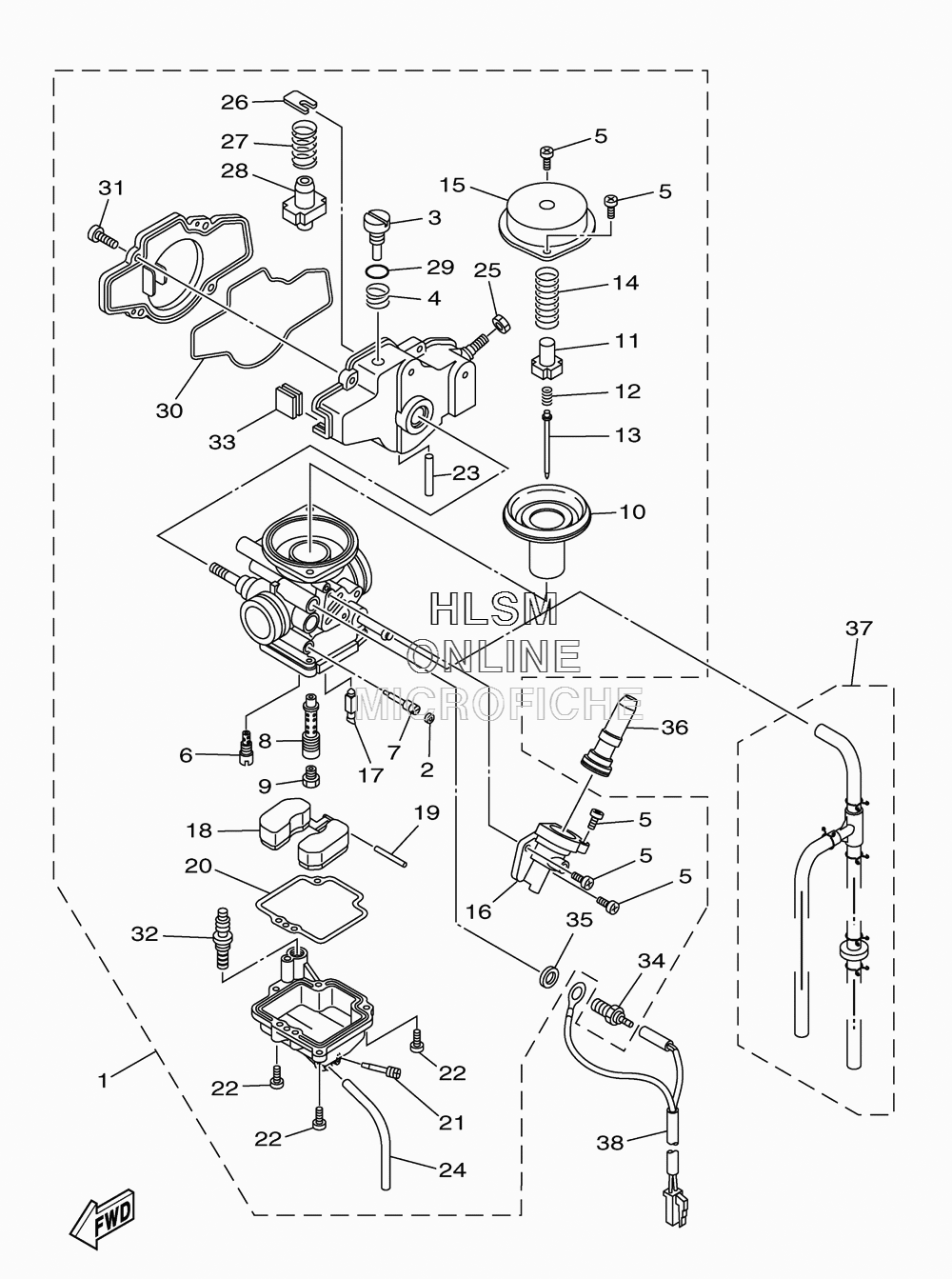

CARBURETOR для Yamaha RAPTOR 90 - 2013 года выпуска`
-
№АртикулНазвание
-
143D-E4301-00-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
243D-E4345-00-00 ...PLUG, MAIN NOZZLE...PLUG, MAIN NOZZLE
-
343D-E4321-00-00 ...SCREW, THROTTLE...SCREW, THROTTLE
-
443D-E4333-00-00 ...SPRING, THROTTLE STOP...SPRING, THROTTLE STOP
-
598502-04008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
643D-E4342-16-00 ...JET, PILOT (# 32)...JET, PILOT (# 32)
-
743D-E4347-00-00 ...PILOT SCREW SET...PILOT SCREW SET
-
843D-E4341-00-00 ...NOZZLE, MAIN...NOZZLE, MAIN
-
9288-E4343-50-00 ...JET, MAIN (#100)...JET, MAIN (#100)
-
105WB-E434A-00-00 ...DIAPHRAGM...DIAPHRAGM
-
115LB-E4936-00-00 ...SEAT, SPRING...SEAT, SPRING
-
125LB-E4275-00-00 ...SPRING...SPRING
-
1343D-E4336-00-00 ...NEEDLE...NEEDLE
-
145WB-E4286-00-00 ...SPRING...SPRING
-
1543D-E439D-00-00 ...CAP, MIXING CHAMBER...CAP, MIXING CHAMBER
-
1643D-E4344-00-00 ...JET, STARTER (#0)...JET, STARTER (#0)
-
1743D-E4392-00-00 ...VALVE, NEEDLE...VALVE, NEEDLE
-
185WB-E4385-00-00 ...FLOAT...FLOAT
-
195LB-E4386-00-00 ...PIN, FLOAT...PIN, FLOAT
-
205WB-E4384-00-00 ...GASKET, FLOAT CHAMBER...GASKET, FLOAT CHAMBER
-
2143D-E4306-00-00 ...DRAIN SCREW ASSY...DRAIN SCREW ASSY
-
2298502-04014-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2343D-E443G-00-00 ...PIPE, DRAIN 2...PIPE, DRAIN 2
-
244FP-E4349-00-00 ...PIPE...PIPE
-
255AV-E4594-00-00 ...NUT...NUT
-
2643D-E4346-00-00 ...PLATE...PLATE
-
2743D-E4333-10-00 ...SPRING, THROTTLE STOP...SPRING, THROTTLE STOP
-
2843D-E4321-10-00 ...ADJUSTER,THROTTLE...ADJUSTER,THROTTLE
-
2943D-E4397-10-00 ...O-RING...O-RING
-
3043D-E4398-00-00 ...GASKET...GASKET
-
3198502-04010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
3243D-E4304-00-00 ...ACCELERATOR PUMP COMP....ACCELERATOR PUMP COMP.
-
3343D-E432A-00-00 ...PLUG...PLUG
-
345FU-83790-20-00 ...HEATER ASSY (30W)...HEATER ASSY (30W)
-
3590201-08016-00 ...WASHER, PLATE...WASHER, PLATE
-
3643D-E4307-00-00 STARTER ASSYSTARTER ASSY
-
3743D-E4310-00-00 TUBE BREATHER COMP.TUBE BREATHER COMP.
-
3843D-H331N-01-00 WIRE, LEADWIRE, LEAD
