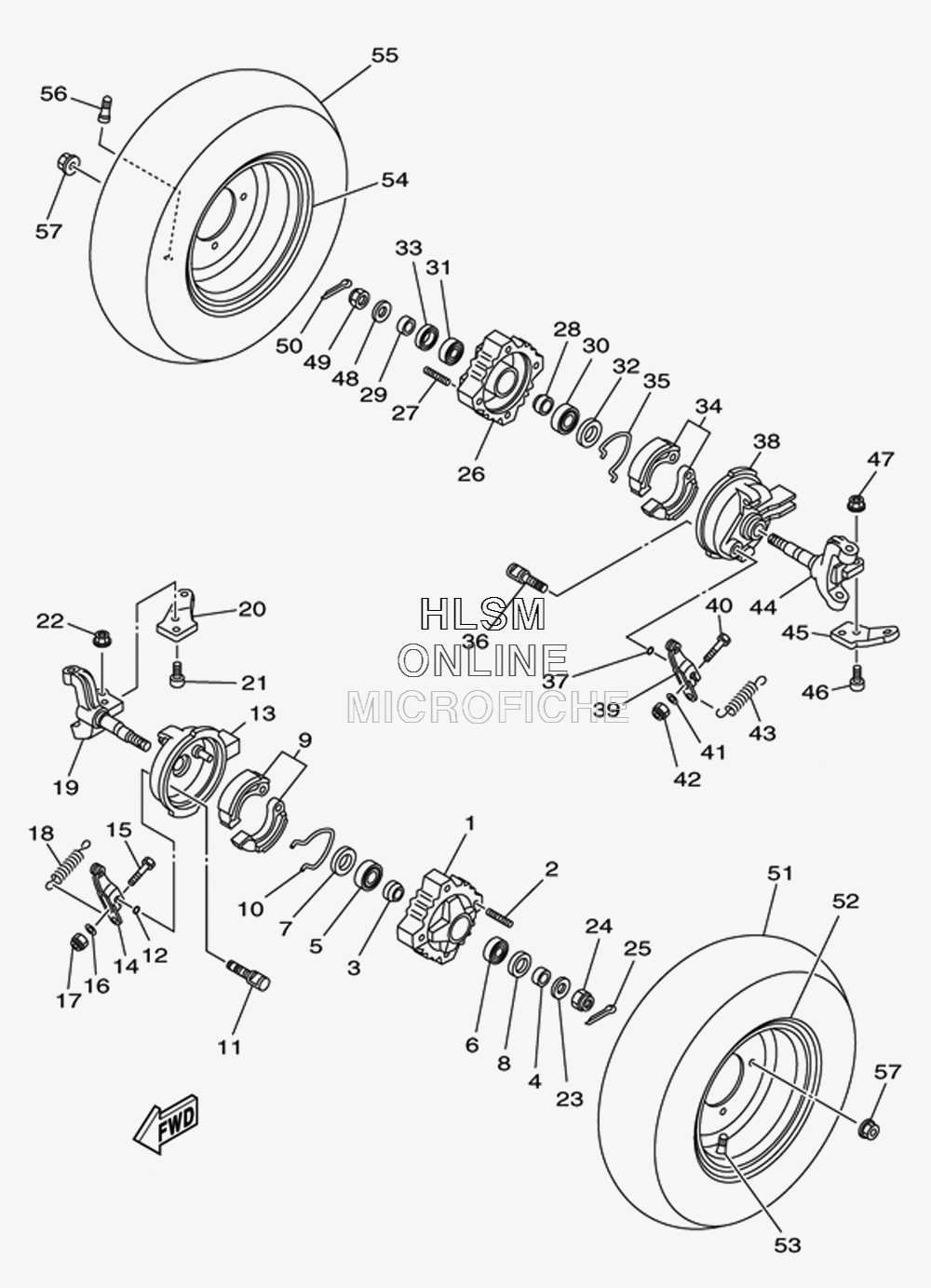

WHEEL - FRONT W/ AXLE ASSY для Yamaha RAPTOR 90 - 2012 года выпуска`
-
№АртикулНазвание
-
143D-F5111-00-00 HUB, FRONTHUB, FRONT
-
243D-F4441-00-00 BOLT, STUDBOLT, STUD
-
343D-F5117-00-00 SPACER, BEARINGSPACER, BEARING
-
443D-F5105-00-00 SPACERSPACER
-
543D-F51H1-00-00 BEARINGBEARING
-
643D-F51H2-00-00 BEARING 2BEARING 2
-
743D-F511B-00-00 SEAL, OILSEAL, OIL
-
843D-F51H3-00-00 OIL SEAL 2OIL SEAL 2
-
943D-F510L-00-00 BRAKE SHOE COMP.BRAKE SHOE COMP.
-
1043D-F5133-00-00 SPRING, RETURNSPRING, RETURN
-
1143D-F5351-00-00 CAMSHAFTCAMSHAFT
-
1243D-F51H4-00-00 O-RINGO-RING
-
1343D-F5121-00-00 PLATE, BRAKE SHOEPLATE, BRAKE SHOE
-
1443D-F5155-00-00 LEVER, CAMSHAFT 1LEVER, CAMSHAFT 1
-
1597022-06030-00 BOLTBOLT
-
1643D-F2149-00-00 WASHERWASHER
-
1743D-F2251-00-00 NUT 1NUT 1
-
1843D-F5143-00-00 SPRING, RETURNSPRING, RETURN
-
1943D-F3511-00-00 KNUCKLE, STEERING 1KNUCKLE, STEERING 1
-
2043D-F3512-01-00 ARM, KNUCKLE 1ARM, KNUCKLE 1
-
2143D-F2241-00-00 BOLT 1BOLT 1
-
2243D-F2143-00-00 NUTNUT
-
2343D-F2245-00-00 WASHER 3WASHER 3
-
2443D-F1293-00-00 NUTNUT
-
2543D-F112N-00-00 PINPIN
-
2643D-F5111-00-00 HUB, FRONTHUB, FRONT
-
2743D-F4441-00-00 BOLT, STUDBOLT, STUD
-
2843D-F5117-00-00 SPACER, BEARINGSPACER, BEARING
-
2943D-F5105-00-00 SPACERSPACER
-
3043D-F51H1-00-00 BEARINGBEARING
-
3143D-F51H2-00-00 BEARING 2BEARING 2
-
3243D-F511B-00-00 SEAL, OILSEAL, OIL
-
3343D-F51H3-00-00 OIL SEAL 2OIL SEAL 2
-
3443D-F510L-00-00 BRAKE SHOE COMP.BRAKE SHOE COMP.
-
3543D-F5133-00-00 SPRING, RETURNSPRING, RETURN
-
3643D-F5351-00-00 CAMSHAFTCAMSHAFT
-
3743D-F51H4-00-00 O-RINGO-RING
-
3843D-F5169-00-00 PLATE, BRAKE SHOE 2PLATE, BRAKE SHOE 2
-
3943D-F5156-00-00 LEVER, CAMSHAFT 2LEVER, CAMSHAFT 2
-
4097022-06030-00 BOLTBOLT
-
4143D-F2149-00-00 WASHERWASHER
-
4243D-F2251-00-00 NUT 1NUT 1
-
4343D-F5143-00-00 SPRING, RETURNSPRING, RETURN
-
4443D-F3521-00-00 KNUCKLE, STEERING 2KNUCKLE, STEERING 2
-
4543D-F3522-01-00 ARM, KNUCKLE 2ARM, KNUCKLE 2
-
4643D-F2241-00-00 BOLT 1BOLT 1
-
4743D-F2143-00-00 NUTNUT
-
4843D-F2245-00-00 WASHER 3WASHER 3
-
4943D-F1293-00-00 NUTNUT
-
5043D-F112N-00-00 PINPIN
-
5143D-F510S-00-00 TIRE (AT18 X 7-8 M939)TIRE (AT18 X 7-8 M939)
-
5243D-F5180-00-00 WHEEL COMP.WHEEL COMP.
-
5343D-F5170-00-00 AIR VALVE ASSYAIR VALVE ASSY
-
5443D-F5180-00-00 WHEEL COMP.WHEEL COMP.
-
5543D-F510S-00-00 TIRE (AT18 X 7-8 M939)TIRE (AT18 X 7-8 M939)
-
5643D-F5170-00-00 AIR VALVE ASSYAIR VALVE ASSY
-
5743D-F1839-00-00 NUTNUT
