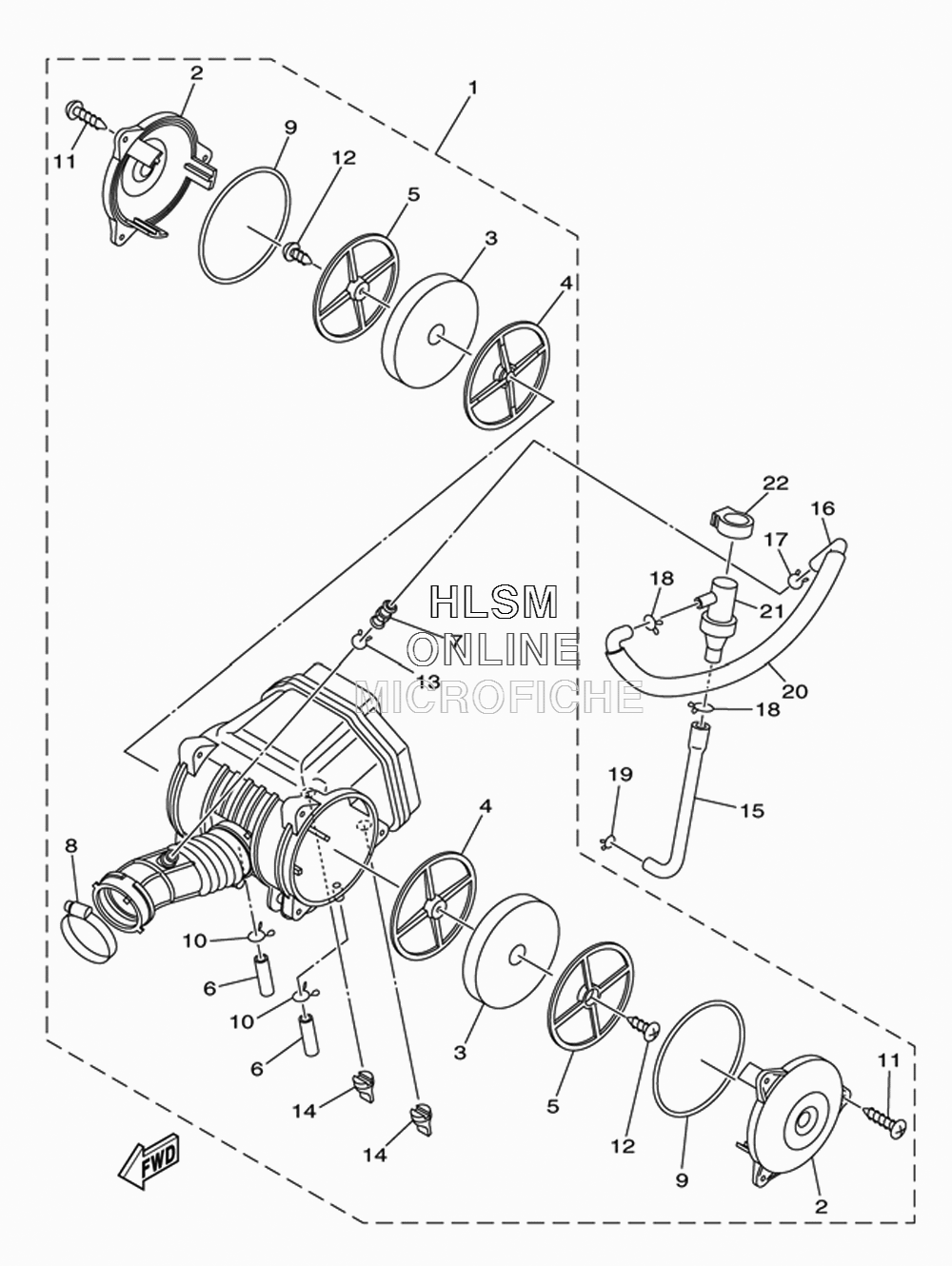

AIR CLEANER W/ INTAKE для Yamaha RAPTOR 90 - 2012 года выпуска`
-
№АртикулНазвание
-
143D-E4410-10-00 AIR CLEANER ASSY.AIR CLEANER ASSY.
-
243D-E449E-10-00 ...COVER, AIR CLEANER...COVER, AIR CLEANER
-
343D-E4451-00-00 ...ELEMENT, AIR CLEANER...ELEMENT, AIR CLEANER
-
443D-E4468-10-00 ...PLATE,ELEMENT FITTING...PLATE,ELEMENT FITTING
-
543D-E440H-00-00 ...PLATE ELEMENT SET 2...PLATE ELEMENT SET 2
-
643D-E443E-10-00 ...PIPE, DRAIN...PIPE, DRAIN
-
743D-E4419-00-00 ...PIPE...PIPE
-
843D-E4455-00-00 ...BAND...BAND
-
943D-E41A1-00-00 ...SEAL RING...SEAL RING
-
1043D-E4137-10-00 ...CLIP...CLIP
-
1143D-E4429-10-00 ...SCREW...SCREW
-
1243D-E5793-00-00 ...SCREW...SCREW
-
1343D-E4159-00-00 ...CLIP...CLIP
-
1443D-E4222-00-00 ...VALVE, DRAIN...VALVE, DRAIN
-
1543D-E4148-00-00 PIPEPIPE
-
1643D-E4149-00-00 PIPEPIPE
-
1743D-E4159-00-00 CLIPCLIP
-
1843D-E449C-00-00 CLIP 1CLIP 1
-
1943D-E449D-00-00 CLIP 2CLIP 2
-
2043D-E442F-00-00 PROTECTORPROTECTOR
-
2143D-E1126-00-00 PIPE, BREATHER 3PIPE, BREATHER 3
-
2243D-E4169-00-00 CAPCAP
