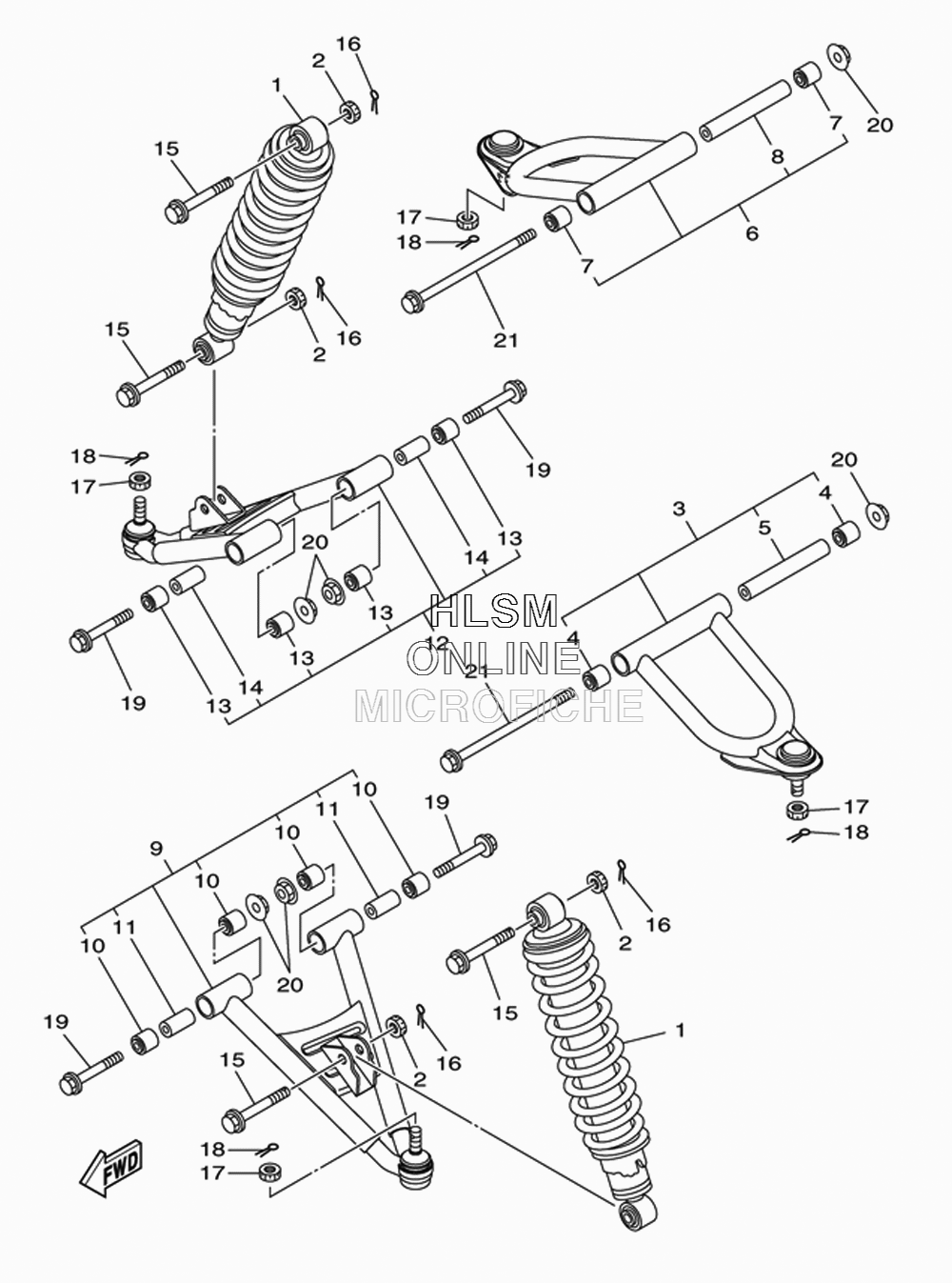

SUSPENSION - FRONT WHEEL для Yamaha RAPTOR 90 - 2012 года выпуска`
-
№АртикулНазвание
-
143D-F3350-00-00 SHOCK ABSORBER ASSY (FOR DPBSE)SHOCK ABSORBER ASSY (FOR DPBSE)
-
143D-F3350-10-00 SHOCK ABSORBER ASSY (FOR BWS1)SHOCK ABSORBER ASSY (FOR BWS1)
-
243D-F1244-00-00 NUTNUT
-
343D-F3505-00-00 FRONT UPPER ARM SUB ASSY (LEFT)FRONT UPPER ARM SUB ASSY (LEFT)
-
443D-F3526-00-00 ...BUSH...BUSH
-
543D-F3363-00-00 ...COLLAR 1...COLLAR 1
-
643D-F3506-00-00 FRONT UPPER ARM SUB ASSY (RIGHT)FRONT UPPER ARM SUB ASSY (RIGHT)
-
743D-F3526-00-00 ...BUSH...BUSH
-
843D-F3363-00-00 ...COLLAR 1...COLLAR 1
-
943D-F3507-00-00 FRONT LOWER ARM SUB-ASSY (LEFT)FRONT LOWER ARM SUB-ASSY (LEFT)
-
1043D-F3526-00-00 ...BUSH...BUSH
-
1143D-F3364-00-00 ...COLLAR 2...COLLAR 2
-
1243D-F3508-00-00 FRONT LOWER ARM SUB-ASSY (RIGHT)FRONT LOWER ARM SUB-ASSY (RIGHT)
-
1343D-F3526-00-00 ...BUSH...BUSH
-
1443D-F3364-00-00 ...COLLAR 2...COLLAR 2
-
1597027-10040-00 BOLT, HEXAGONBOLT, HEXAGON
-
1691401-25020-00 PIN, COTTERPIN, COTTER
-
1795302-10900-00 NUT, SLOTTEDNUT, SLOTTED
-
1891401-25033-00 PIN, COTTERPIN, COTTER
-
1943D-F3471-00-00 BOLTBOLT
-
2043D-F1635-00-00 NUT, REAR FENDERNUT, REAR FENDER
-
2143D-E2623-00-00 BOLTBOLT
