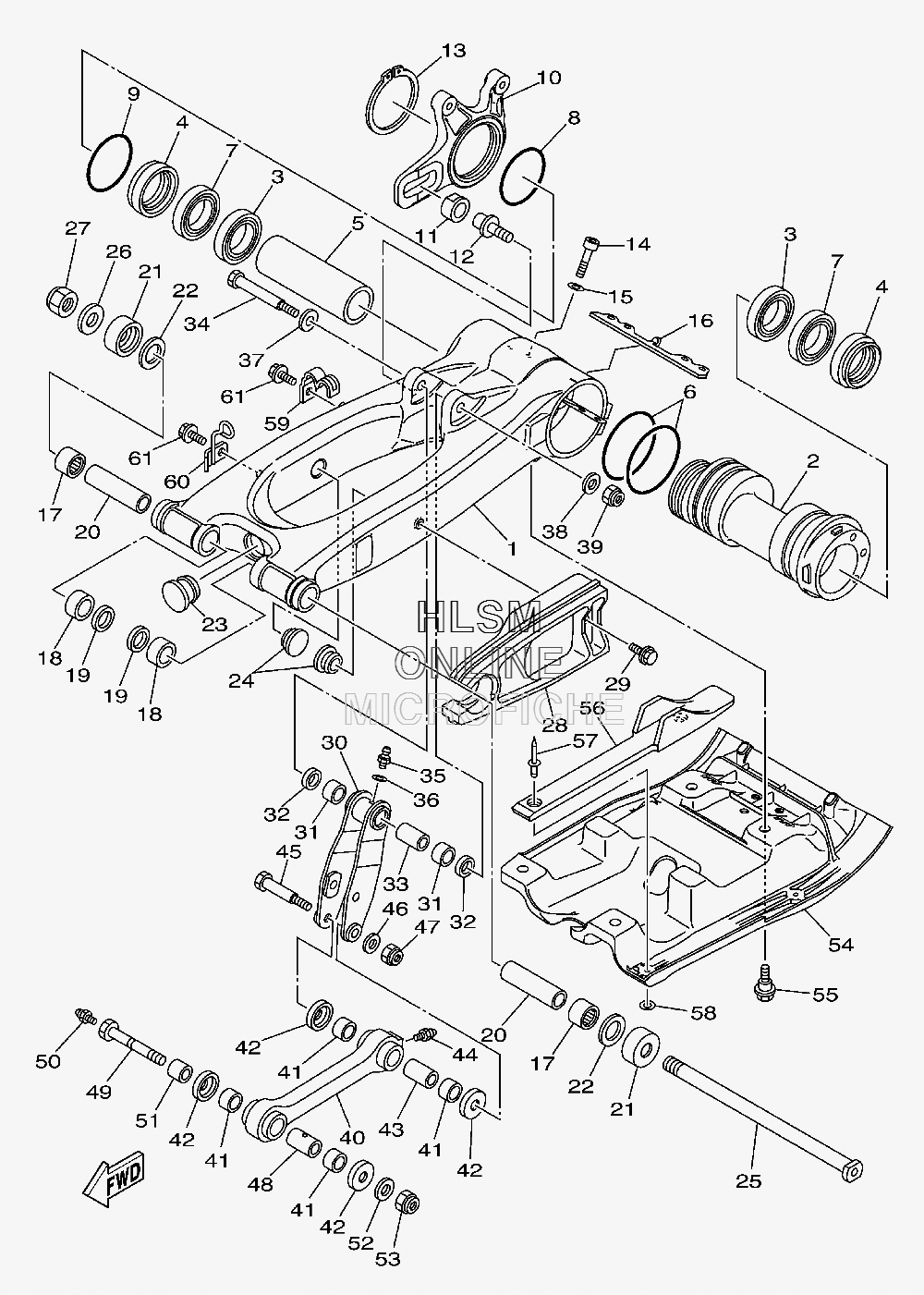

SUSPENSION - REAR ARM для Yamaha RAPTOR 700R - 2012 года выпуска`
-
№АртикулНазвание
-
11S3-22110-00-00 REAR ARM COMP.REAR ARM COMP.
-
21S3-25311-01-00 HUB, REARHUB, REAR
-
393306-90804-00 BEARINGBEARING
-
493106-46003-00 OIL SEALOIL SEAL
-
51S3-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
61S3-23147-01-00 O-RINGO-RING
-
793306-90805-00 BEARINGBEARING
-
893210-66001-00 O-RINGO-RING
-
993210-71001-00 O-RINGO-RING
-
101S3-25721-01-00 BRACKET, CALIPERBRACKET, CALIPER
-
1190387-16014-00 COLLARCOLLAR
-
1290110-12001-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1393410-67085-00 CIRCLIPCIRCLIP
-
1491314-08040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1592903-08600-00 WASHER, PLATEWASHER, PLATE
-
161S3-22475-00-00 SEAL, DUSTSEAL, DUST
-
1793317-22237-00 BEARING, CYL.#17BEARING, CYL.#17
-
1890380-22111-00 BUSH, SOLIDBUSH, SOLID
-
1993106-22019-00 OIL SEAL (DC 22-28-8)OIL SEAL (DC 22-28-8)
-
201S3-22184-00-00 BUSHBUSH
-
214X7-22129-00-00 COVER, THRUST 2COVER, THRUST 2
-
223YF-22149-00-00 WASHERWASHER
-
231S3-22417-00-00 PLUGPLUG
-
2490338-23004-00 PLUGPLUG
-
251S3-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
2690201-16018-00 WASHER, PLATEWASHER, PLATE
-
2790185-16002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
281S3-22151-00-00 SEAL, GUARDSEAL, GUARD
-
2990109-06172-00 BOLTBOLT
-
301S3-2217A-00-00 ARM, RELAYARM, RELAY
-
3190383-20033-00 BUSH, FORMEDBUSH, FORMED
-
3293109-20076-00 OIL SEALOIL SEAL
-
3390387-12021-00 COLLARCOLLAR
-
3490109-10018-00 BOLTBOLT
-
3593700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
3690201-063F3-00 WASHER, PLATEWASHER, PLATE
-
3790201-12030-00 WASHER, PLATEWASHER, PLATE
-
3890201-10034-00 WASHER, PLATEWASHER, PLATE
-
3990185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
401S3-2217F-00-00 ROD, CONNECTING 1ROD, CONNECTING 1
-
4190383-20032-00 BUSH, FORMEDBUSH, FORMED
-
425YT-22129-00-00 COVER, THRUST 2COVER, THRUST 2
-
4390387-125K2-00 COLLARCOLLAR
-
4493700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
4590109-10020-00 BOLTBOLT
-
4690201-10035-00 WASHER, PLATEWASHER, PLATE
-
4790185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4890387-12010-00 COLLARCOLLAR
-
4990109-12009-00 BOLTBOLT
-
5093700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
5190387-12028-00 COLLARCOLLAR
-
5290201-12032-00 WASHER, PLATEWASHER, PLATE
-
5390185-12007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
541S3-2219X-00-00 COVERCOVER
-
5590109-06199-00 BOLTBOLT
-
561S3-22153-00-00 GUARD, CHAINGUARD, CHAIN
-
5790267-47187-00 RIVET, BLIND (4.7X16.4 BLACK)RIVET, BLIND (4.7X16.4 BLACK)
-
5890201-04027-00 WASHER, PLATEWASHER, PLATE
-
591S3-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
601S3-23317-00-00 HOLDER, CABLEHOLDER, CABLE
-
6195022-06012-00 BOLT, FLANGEBOLT, FLANGE
