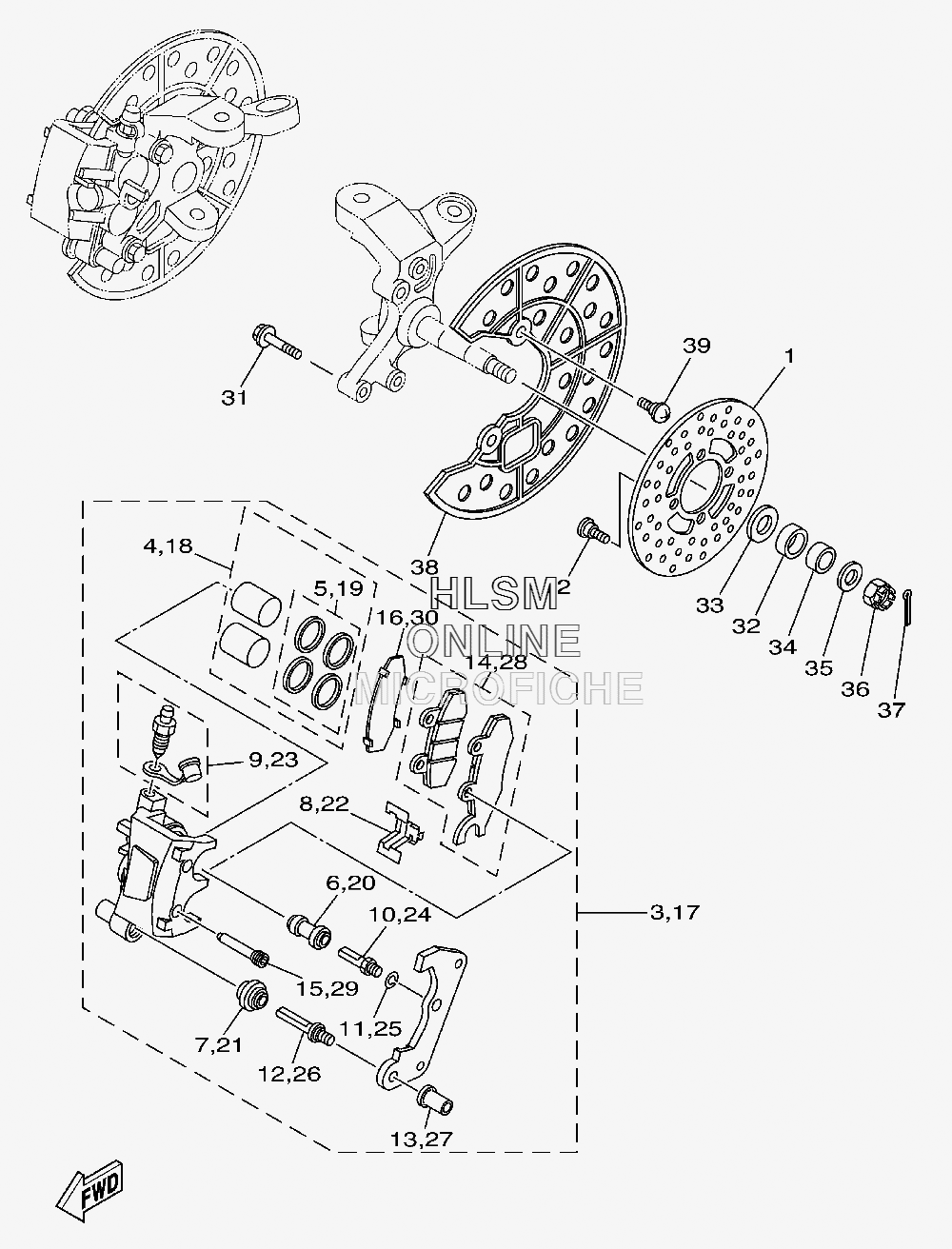

BRAKE - FRONT CALIPER для Yamaha RAPTOR 700R - 2012 года выпуска`
-
№АртикулНазвание
-
13GD-2582T-10-00 DISC, BRAKE (LEFT)DISC, BRAKE (LEFT)
-
290109-08082-00 BOLTBOLT
-
31S3-2580T-01-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
45TG-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
53LC-W0047-50-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
61UY-25937-51-00 ...BOOT 2...BOOT 2
-
73JD-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
83JD-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
91UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
101UY-25926-51-00 ...BOLT...BOLT
-
111UY-25938-51-00 ...WASHER, SPRING...WASHER, SPRING
-
123JD-25926-00-00 ...BOLT...BOLT
-
133JD-25961-00-00 ...NUT...NUT
-
141S3-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
155TG-25924-00-00 ...PIN, PAD...PIN, PAD
-
161S3-25828-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
171S3-2580U-01-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
185TG-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
193LC-W0047-50-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
201UY-25937-51-00 ...BOOT 2...BOOT 2
-
213JD-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
223JD-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
231UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
241UY-25926-51-00 ...BOLT...BOLT
-
251UY-25938-51-00 ...WASHER, SPRING...WASHER, SPRING
-
263JD-25926-00-00 ...BOLT...BOLT
-
273JD-25961-00-00 ...NUT...NUT
-
281S3-W0045-10-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
295TG-25924-00-00 ...PIN, PAD...PIN, PAD
-
301S3-25828-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
3190105-08184-00 BOLT, FLANGEBOLT, FLANGE
-
3290387-20005-00 COLLARCOLLAR
-
3390201-20022-00 WASHER, PLATEWASHER, PLATE
-
3490387-150R1-00 COLLARCOLLAR
-
3590201-14586-00 WASHER, PLATEWASHER, PLATE
-
3690171-14002-00 NUT, CASTLENUT, CASTLE
-
3791402-30025-00 PIN, COTTERPIN, COTTER
-
385TG-2514A-00-00 RING, WHEEL 1RING, WHEEL 1
-
3990149-06117-00 SCREWSCREW
