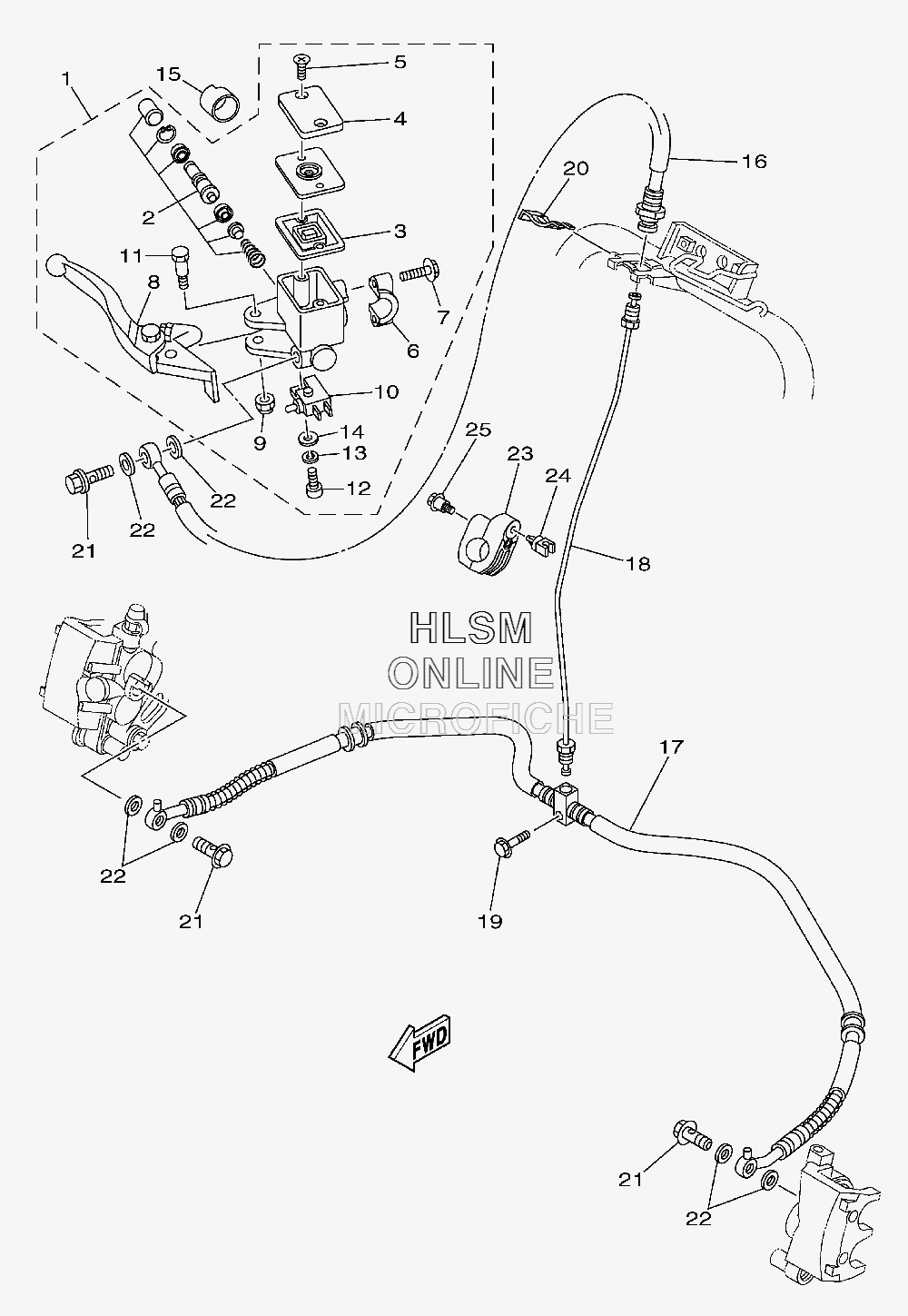

BRAKE - FRONT MASTER CYLINDER для Yamaha RAPTOR 700R - 2012 года выпуска`
-
№АртикулНазвание
-
15D3-2583T-01-00 MASTER CYLINDER ASSYMASTER CYLINDER ASSY
-
25D3-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
34TT-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
45D3-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
54NK-2589H-00-00 ...SCREW...SCREW
-
65LP-25867-00-00 ...BRACKET, MASTER CYLINDER...BRACKET, MASTER CYLINDER
-
75MV-25833-00-00 ...BOLT, FITTING...BOLT, FITTING
-
85D3-83922-00-00 ...LEVER 2...LEVER 2
-
995604-06100-00 ...NUT, U...NUT, U
-
105D3-83980-00-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
-
113B4-2589F-00-00 ...BOLT, LEVER...BOLT, LEVER
-
1298502-04014-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1392902-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
1492902-04600-00 ...WASHER, PLATE...WASHER, PLATE
-
151UY-26259-00-00 COLLARCOLLAR
-
161S3-25872-10-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
175TG-25873-10-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
181S3-25871-10-00 PIPE, BRAKEPIPE, BRAKE
-
1995822-06025-00 BOLT, FLANGEBOLT, FLANGE
-
202GU-25866-00-00 CIRCLIPCIRCLIP
-
2190401-10015-00 BOLT, UNIONBOLT, UNION
-
2290201-10118-00 WASHER, PLATEWASHER, PLATE
-
231AS-25522-00-00 HOLDERHOLDER
-
245KM-81677-00-00 CLAMP 1CLAMP 1
-
2590109-06241-00 BOLTBOLT
