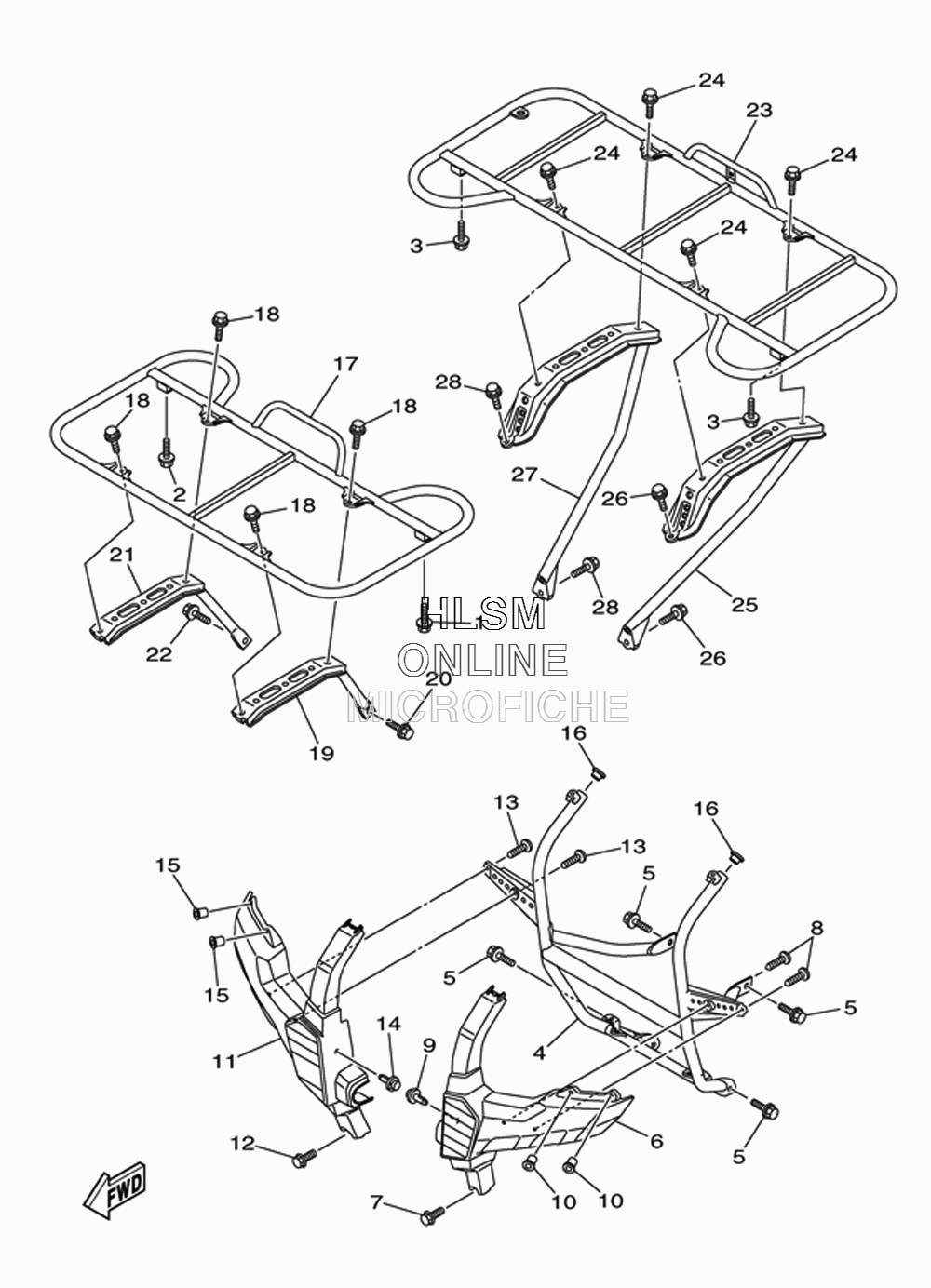

RACK AND BUMPER для Yamaha GRIZZLY 550 4WD - 2012 года выпуска`
-
№АртикулНазвание
-
190119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
290119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
390119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
41HP-F845N-00-00 BAR, CARRY FRONTBAR, CARRY FRONT
-
595812-08014-00 BOLT, FLANGEBOLT, FLANGE
-
61HP-F842M-00-00 COVER 1COVER 1
-
790105-06832-00 BOLT, FLANGEBOLT, FLANGE
-
890167-06800-00 SCREW, TAPPINGSCREW, TAPPING
-
990269-07012-00 RIVETRIVET
-
1090179-05523-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
111HP-F842N-00-00 COVER 2COVER 2
-
1290105-06832-00 BOLT, FLANGEBOLT, FLANGE
-
1390167-06800-00 SCREW, TAPPINGSCREW, TAPPING
-
1490269-07012-00 RIVETRIVET
-
1590179-05523-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
1690338-18122-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
171HP-F4841-00-00 CARRIER, FRONTCARRIER, FRONT
-
1895812-08014-00 BOLT, FLANGEBOLT, FLANGE
-
191HP-F4821-00-00 STAY, FRONT CARRIER 1STAY, FRONT CARRIER 1
-
2090119-08118-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
211HP-F4822-00-00 STAY, FRONT CARRIER 2STAY, FRONT CARRIER 2
-
2290119-08118-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
231HP-F4842-00-00 CARRIER, REARCARRIER, REAR
-
2495812-08014-00 BOLT, FLANGEBOLT, FLANGE
-
251HP-F482J-00-00 FRAME, CARRIER 1FRAME, CARRIER 1
-
2690119-10044-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
271HP-F482K-00-00 FRAME, CARRIER 2FRAME, CARRIER 2
-
2890119-10044-00 BOLT, WITH WASHERBOLT, WITH WASHER
