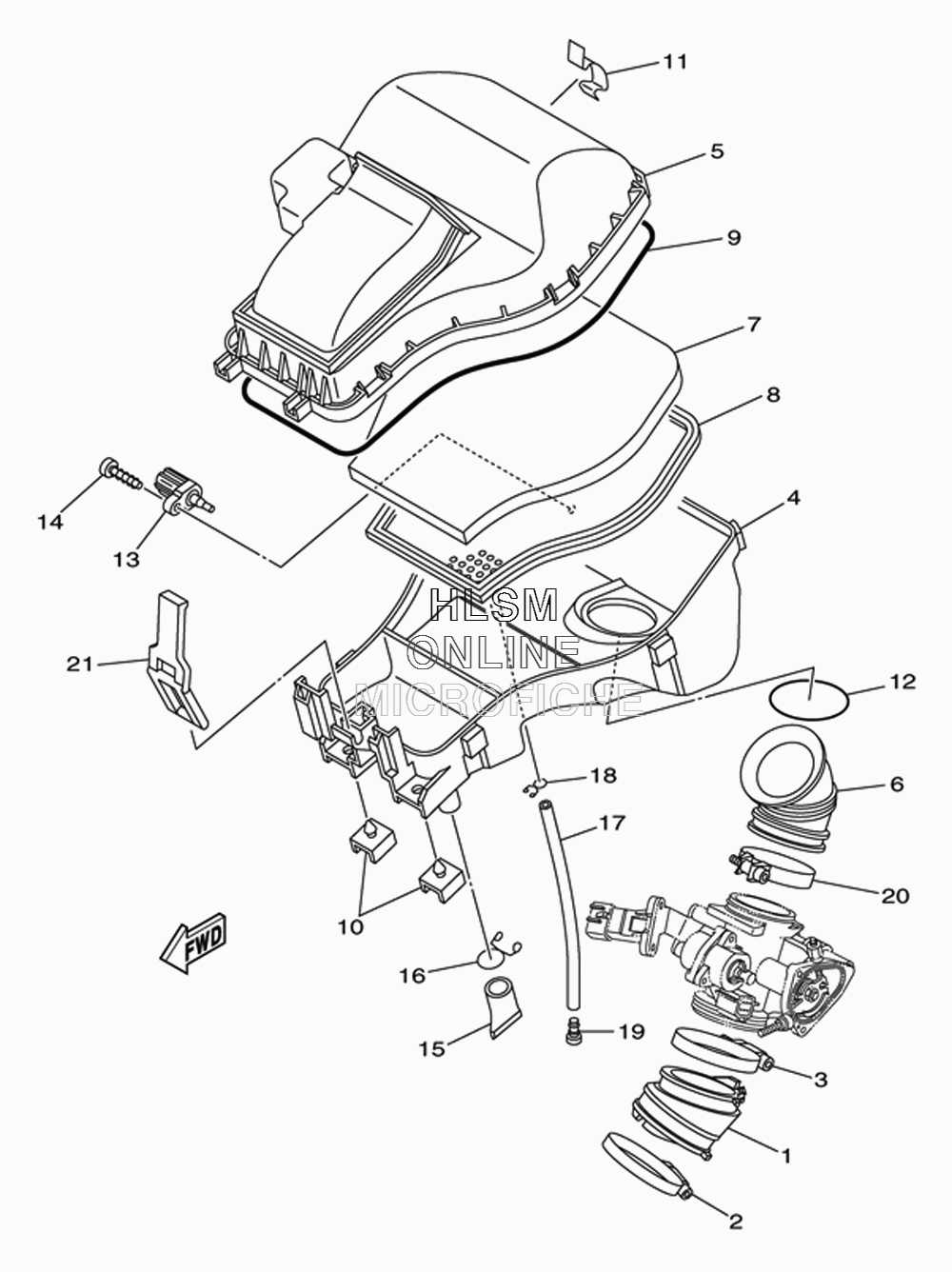

AIR CLEANER W/ INTAKE для Yamaha GRIZZLY 550 4WD - 2012 года выпуска`
-
№АртикулНазвание
-
128P-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
290450-72004-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
390450-72004-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
43B4-14411-21-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
53B4-14402-03-00 CAP ASSY, AIR CLEANERCAP ASSY, AIR CLEANER
-
63B4-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
71HP-E4451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
81HP-E4472-00-00 PLATE, ELEMENTPLATE, ELEMENT
-
93B4-14457-00-00 SEALSEAL
-
103B4-14409-00-00 DAMPERDAMPER
-
113B4-14424-00-00 CLIP, CAP FITTINGCLIP, CAP FITTING
-
121HP-E4462-00-00 SEALSEAL
-
138FP-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
1497702-50520-00 SCREW, TAPPINGSCREW, TAPPING
-
1559V-14457-00-00 SEALSEAL
-
1690467-220A1-00 CLIPCLIP
-
1791A20-07020-00 TUBE, FLEXIBLE VINYL (L200)TUBE, FLEXIBLE VINYL (L200)
-
1890467-100A1-00 CLIPCLIP
-
1990338-08174-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
2090450-59006-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
213B4-14455-00-00 BANDBAND
