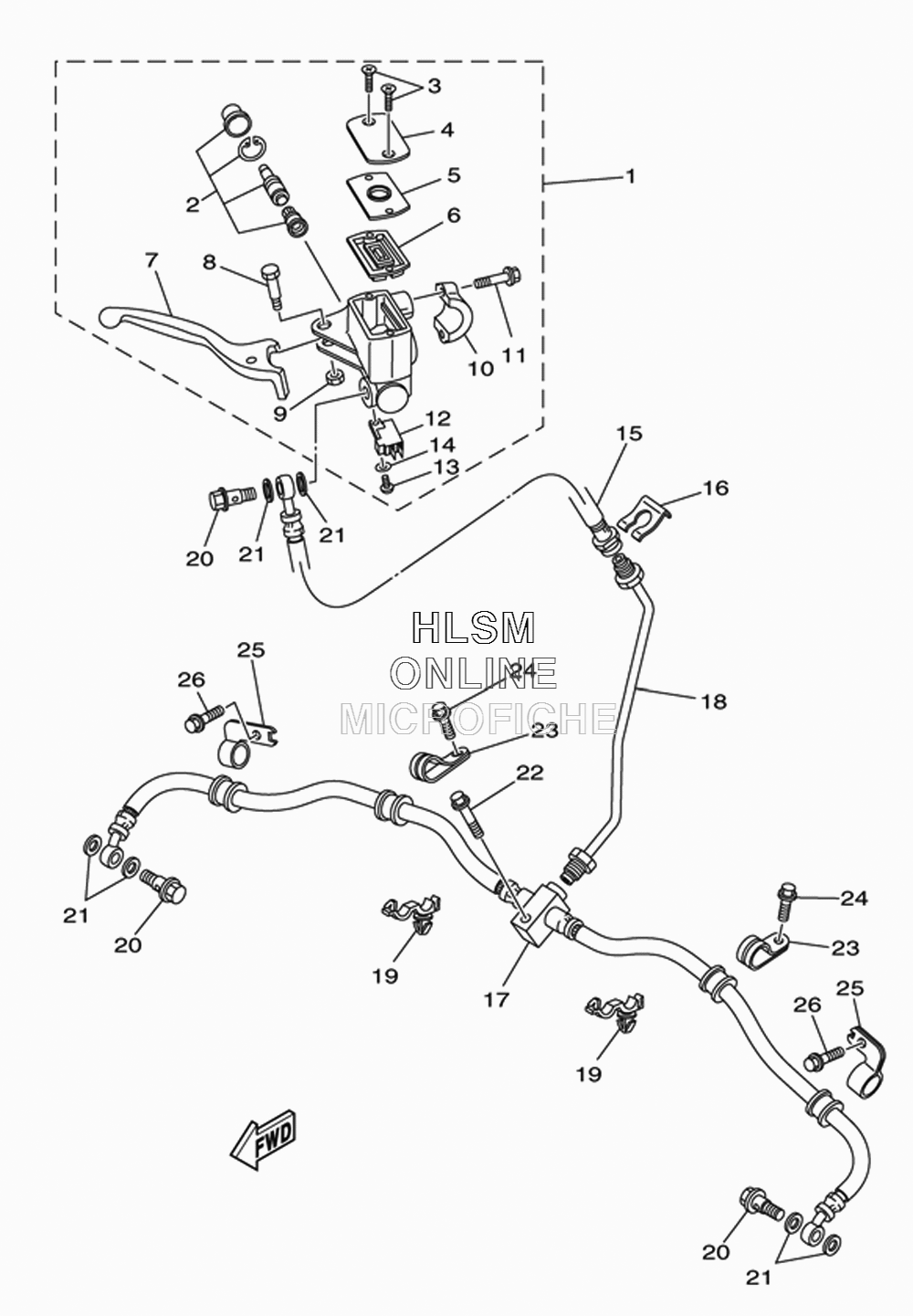

BRAKE - FRONT MASTER CYLINDER для Yamaha GRIZZLY 550 4WD - 2012 года выпуска`
-
№АртикулНазвание
-
13B4-2583T-10-00 MASTER CYLINDER ASSYMASTER CYLINDER ASSY
-
25D3-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
398702-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
45YU-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
53B4-2585B-00-00 ...PLATE, DIAPHRAGM...PLATE, DIAPHRAGM
-
64TT-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
73B4-83922-00-00 ...LEVER 2...LEVER 2
-
83B4-2589F-00-00 ...BOLT, LEVER...BOLT, LEVER
-
995701-06500-00 ...NUT, WITH WASHER...NUT, WITH WASHER
-
105MV-25867-00-00 ...BRACKET, MASTER CYLINDER...BRACKET, MASTER CYLINDER
-
115MV-25833-00-00 ...BOLT, FITTING...BOLT, FITTING
-
121HP-83980-00-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
-
1398502-04012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1492902-04600-00 ...WASHER, PLATE...WASHER, PLATE
-
151HP-F5872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
162GU-25866-00-00 CIRCLIPCIRCLIP
-
171HP-F5873-00-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
181HP-F5871-00-00 PIPE, BRAKEPIPE, BRAKE
-
1990464-20010-00 CLAMPCLAMP
-
2090401-10015-00 BOLT, UNIONBOLT, UNION
-
2190201-10118-00 WASHER, PLATEWASHER, PLATE
-
2295812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
233B4-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2495812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
253B4-25876-10-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
2695812-06012-00 BOLT, FLANGEBOLT, FLANGE
